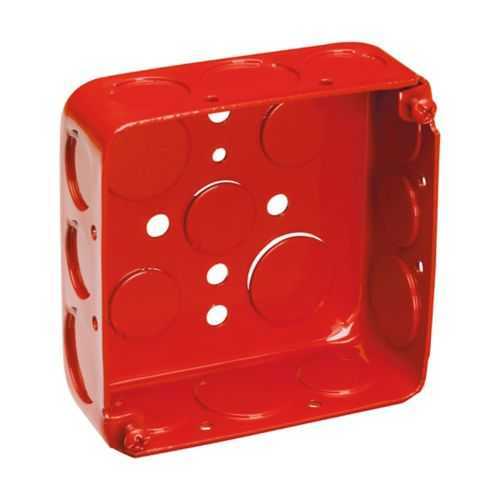

Eaton TP414RED Square Outlet Box - 22 cu in, Steel, NEC/CEC
Part Number: TP414RED
Quick Summary
Eaton TP414RED square outlet box protects wiring connections in industrial enclosures, enabling safe, code-compliant conduit terminations. In busy facilities, mounting and knockout planning can slow projects and raise the risk of miswiring. It carries NEC/CEC standards and Canadian certification for cross-border work, and is rated for Ordinary/Non-Hazardous Locations, providing confidence in diverse environments. The 4-inch square, 22 cu in capacity, drawn steel construction delivers long-term reliability, while compatible accessories and conduit systems streamline installation. This makes it a practical choice for engineering teams seeking durable steel square boxes that optimize installation time and total cost of ownership.
Product Information
Extended Description
TP414RED Eaton: Eaton Crouse-Hinds series Square Outlet Box, (3) 1/2", (2) 3/4", 4", Red, Conduit (no clamps), Drawn, 1-1/2", Steel, (8) 1/2", (4) 3/4", 22.0 cubic inch capacity
Product Name
Eaton Crouse-Hinds series square outlet box
Catalog Number
TP414RED
UPC
662279000503
Product Length/Depth
4 in
Product Height
4 in
Product Width
1.5 in
Product Weight
0.67 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Box size
4"
Capacity
22 cubic in
Depth
1-1/2"
Conduit/cable
Conduit (no clamps)
Construction
Drawn
Side knockouts
(8) 1/2 in, (4) 3/4 in
Bottom Knockouts
(3) 1/2 in, (2) 3/4 in
Color
Red
Material
Steel
Crouse-Hinds series 4-Inch Steel Square Boxes and Covers catalog page
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings Canadian certification
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings Canadian certification
Eaton Specification Sheet - TP414RED
Eaton Specification Sheet - TP414RED
