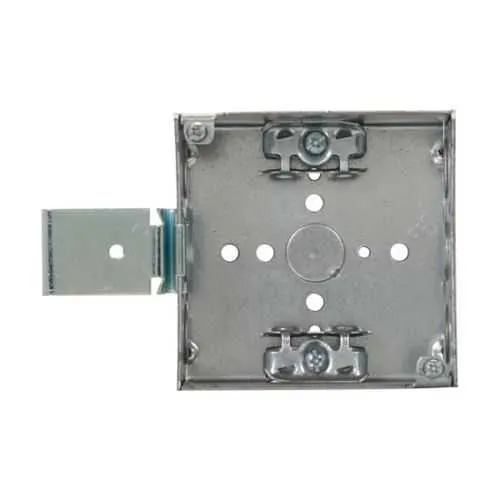

Eaton TP431SSBPF Square Outlet Box - NEC/CEC Certified
Part Number: TP431SSBPF
Quick Summary
The Eaton TP431SSBPF square outlet box provides a 4-inch enclosure for electrical connections in industrial control panels. Installers often struggle with knockout configurations, grounding continuity, and clamp compatibility, leading to longer installs and potential non-compliance. Certified to NEC/CEC standards with UL listings for ordinary locations, it supports US and Canada projects while meeting 30.3 in³ capacity. Its welded steel construction, ground screw with pigtail, and AC/MC clamps minimize installation steps and field adjustments. This translates to faster panel builds, consistent grounding, and reduced inventory needs across facilities. Engineers can rely on a standard 4-inch configuration that aligns with common enclosures, covers, and fittings.
Product Information
Extended Description
TP431SSBPF Eaton: Eaton Crouse-Hinds series Square Outlet Box, (1) 1/2", 4", SSB, AC/MC clamps, Welded, 2-1/8", Steel, (4) 1/2", (2) 1/2", (1) 3/4" E, Includes ground screw with pigtail lead, 30.3 cubic inch capacity
Product Name
Eaton Crouse-Hinds series square outlet box
Catalog Number
TP431SSBPF
UPC
662279011813
Product Length/Depth
4 in
Product Height
2.13 in
Product Width
4 in
Product Weight
1.08 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Box size
4"
Capacity
30.3 cubic in
Depth
2-1/8"
Conduit/cable
AC/MC clamps
Bracket style
SSB
Construction
Welded
Side knockouts
(4) 1/2 in, (2) 1/2 in, (1) 3/4 in E
Bottom Knockouts
(1) 1/2 in
Material
Steel
Special features
Includes ground screw with pigtail lead
Crouse-Hinds series 4-Inch Steel Square Boxes and Covers catalog page
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings UL certification
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings UL certification
Eaton Specification Sheet - TP431SSBPF
Eaton Specification Sheet - TP431SSBPF
Feature: Welded steel construction delivers rugged durability that withstands vibration and daily handling. Impact: Fewer service calls and less rework in busy machine rooms. Application: Ideal for panel builders and equipment enclosures in manufacturing environments requiring long service life. Feature: 4-inch box size with 30.3 cubic inches capacity. Impact: Accommodates conductor fills and devices while staying within NEC/CEC fill limits. Application: Controls panels, junctions, and terminations in conveyors, robotics, and packaging lines. Feature: Side knockouts (four 1/2 in, two 1/2 in, one 3/4 in E) and bottom knockout (1/2 in). Impact: Flexible conduit routing reduces the need for adapters and custom fittings. Application: Multi-conduit wiring schemes in compact control cabinets. Feature: AC/MC clamps included. Impact: Speeds wiring and reduces inventory of separate clamps. Application: Fast, repeatable installations in high-volume panel builds. Feature: Ground screw with pigtail lead. Impact: Ensures reliable grounding and simplifies inspections. Application: Safety-critical grounding in control cabinets and equipment enclosures. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous Location rating. Impact: Eases compliance audits and enables cross-border deployments. Application: Global manufacturing environments that require consistent, code-compliant enclosures.
Get a Quick Quote for a Eaton TP431SSBPF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP431SSBPF?
Enquire Now
FAQs
To install the TP431SSBPF, mount the box to the enclosure framework, align the side knockouts with the conduit plan, and run conductors through the appropriate knockouts. Use the included AC/MC clamps for securing cables and install the ground screw with its pigtail lead to establish a solid grounding path. Ensure the internal fill remains within NEC limits and secure an appropriate cover after termination.
Key specifications include a 4-inch box size with a 30.3 cubic inch capacity, depth of 2-1/8 inches, and side knockouts: four 1/2 inch, two 1/2 inch, one 3/4 inch E; bottom knockout: 1/2 inch. Material is welded steel, and clamps are included for AC/MC cables. Weight is 1.08 lb, supporting compact yet durable installations.
Yes. The TP431SSBPF is rated for Ordinary/Non-Hazardous Locations and complies with NEC/CEC standards. It is UL-listed for US and Canada, with documentation available for US and Canadian certifications, making it suitable for cross-border projects and audits.
This box features welded steel construction for higher durability, an included ground screw with pigtail, and integrated AC/MC clamps that speed wiring. Its 30.3 cu in capacity with multiple knockouts supports more wiring and devices than basic boxes, while NEC/CEC compliance ensures reliable code alignment across locations.
Using the TP431SSBPF reduces installation time with factory-installed clamps and a built-in grounding option, minimizing field fittings and troubleshooting. The sturdy welded steel design lowers rework due to impact or vibration, supporting longer service life and lower maintenance costs in high-usage industrial environments.
