Eaton TP432PF Square Outlet Box - NEC/CEC
Part Number: TP432PF
Quick Summary

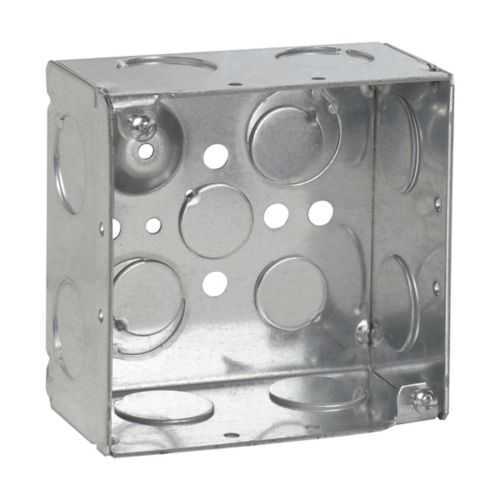

Introducing the Eaton TP432PF Square Outlet Box, a rugged 4-inch steel enclosure designed to terminate conduits in industrial electrical installations. It helps avoid field improvisations by delivering a ready-to-use, code-compliant box that fits standard conduit layouts. It meets NEC/CEC standards for ordinary locations and has Canadian certification coverage documented in UL reports. The enclosure features welded construction, multiple knockouts, and an included ground screw with pigtail, enabling fast, reliable grounding. Compatible with 4-inch square box systems, it supports efficient installation in control panels and junction points, reducing rework and downtime while ensuring safety and compliance. This makes it a dependable choice for medium-duty industrial environments where space, grounding reliability, and quick turnarounds matter.
Product Information
Extended Description
TP432PF Eaton: Eaton Crouse-Hinds series Square Outlet Box, (2) 1/2", (2) 1/2", (1) 3/4" E, 4", Conduit (no clamps), Welded, 2-1/8", Steel, (8) 3/4", Includes ground screw with pigtail lead, 30.3 cubic inch capacity
Product Name
Eaton Crouse-Hinds series square outlet box
Catalog Number
TP432PF
UPC
662279000916
Product Length/Depth
4 in
Product Height
2.13 in
Product Width
4 in
Product Weight
0.93 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Box size
4"
Capacity
30.3 cubic in
Depth
2-1/8"
Conduit/cable
Conduit (no clamps)
Construction
Welded
Side knockouts
(8) 3/4 in
Bottom Knockouts
(2) 1/2 in, (2) 1/2 in, (1) 3/4 in E
Material
Steel
Special features
Includes ground screw with pigtail lead
Crouse-Hinds series 4-Inch Steel Square Boxes and Covers catalog page
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings Canadian certification
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings Canadian certification
Eaton Specification Sheet - TP432PF
Eaton Specification Sheet - TP432PF
Feature: 4-inch square steel enclosure with 30.3 cubic inch capacity. Benefit: Provides ample space for conductor fills and device terminations, reducing the need for future rewiring and keeping panels tidy. Application: Ideal for control panels in manufacturing lines needing reliable box fill and organized wiring. Business impact: Improves installation speed and compliance, lowering labor cost and downtime. Feature: Welded steel construction with side knockouts and bottom knockouts. Benefit: Superior rigidity and durability in harsh environments, improving long-term reliability. Application: suitable for conduit runs in rough factory settings. Business impact: Reduces field modifications and maintenance calls, enhancing overall plant uptime. Feature: Conduit (no clamps) design with (8) 3/4 inch side knockouts and bottom knockouts (two 1/2 inch, two 1/2 inch, one 3/4 inch E). Benefit: Flexible wiring options without the need for clamps, simplifying wiring schemes. Application: fits standard conduit layouts in standard 4-inch square boxes. Business impact: Speeds wiring, lowers material costs, and minimizes install time. Feature: Grounding screw with pigtail lead included. Benefit: Reliable ground path reduces troubleshooting time and ensures safety. Application: critical for non-hazardous locations with NEC/CEC compliance. Business impact: Decreases risk of grounding issues and accelerates commissioning. Feature: Certified for Ordinary/Non-Hazardous Locations under NEC/CEC with Canadian certification support. Benefit: Broad regulatory acceptance and cross-border usability. Application: Suitable for global manufacturing environments. Business impact: Simplifies procurement, reduces compliance risk, and supports international projects. Feature: Material and weight details (Steel, 0.93 lb). Benefit: Lightweight yet sturdy, facilitating easier handling during installation. Application: Field installation in cabinets and enclosures. Business impact: Improves logistics and site efficiency while maintaining robustness.
Get a Quick Quote for a Eaton TP432PF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP432PF?
Enquire Now
FAQs
TP432PF provides (8) side knockouts at 3/4 inch and bottom knockouts of (2) 1/2 inch, (2) 1/2 inch, and (1) 3/4 inch E. The design is conduit (no clamps), allowing straightforward wiring without additional clamps. Grounding is simplified with an included ground screw and pigtail, and the welded steel enclosure maintains a robust, field-friendly install.
The 30.3 cubic inch capacity supports typical full-size conductor fills for 4-inch square boxes used in non-hazardous environments. When performing NEC/CEC box-fill calculations, this capacity helps determine the maximum number of conductors and devices, reducing the risk of overfill and ensuring compliant terminations for control panels and junction boxes.
Yes. TP432PF is designed for Ordinary/Non-Hazardous Locations under NEC/CEC standards, making it suitable for general industrial control panels and non-hazardous wiring sites. Its welded steel construction and ground provision support reliable operation in typical factory environments.
TP432PF complies with NEC/CEC standards for ordinary locations and carries Canadian certification coverage as documented by UL reports. This broad certification footprint supports cross-border projects and ensures regulatory alignment for international deployments.
Key advantages include a ground screw with a pigtail for quick and reliable grounding, welded construction for durability, and no conduit clamps required, which speeds wiring and reduces labor. Compatibility with standard 4-inch square box systems also simplifies future upgrades and maintenance, delivering measurable ROI through reduced downtime and rework.
