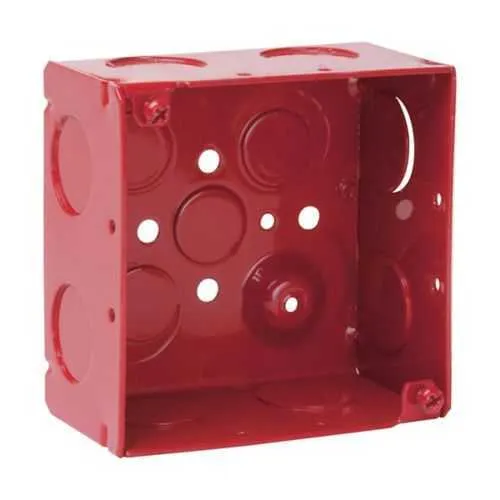

Eaton TP432RED Square Outlet Box - 4 in, Steel NEC/CEC
Part Number: TP432RED
Quick Summary
Eaton TP432RED Square Outlet Box is a rugged 4-inch steel enclosure designed for surface-mounted terminations in industrial control panels. Its welded construction and strategic knockout arrangement reduce field modifications and installation time, even in demanding environments. It carries NEC/CEC compliance and is suitable for Ordinary/Non-Hazardous locations, supporting safe, code-compliant wiring. With a 30.3 cubic inch capacity and red visibility, it accommodates multiple conductors and makes troubleshooting easier in crowded racks. Choosing this standard 4x4 steel box from the Crouse-Hinds line improves procurement efficiency and uptime through consistent, widely available parts.
Product Information
Extended Description
TP432RED Eaton: Eaton Crouse-Hinds series Square Outlet Box, (2) 1/2", (2) 1/2", (1) 3/4" E, 4", Red, Conduit (no clamps), Welded, 2-1/8", Steel, (8) 3/4", 30.3 cubic inch capacity
Product Name
Eaton Crouse-Hinds series square outlet box
Catalog Number
TP432RED
UPC
662279005119
Product Length/Depth
4 in
Product Height
2.13 in
Product Width
4 in
Product Weight
0.9 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Box size
4"
Capacity
30.3 cubic in
Depth
2-1/8"
Conduit/cable
Conduit (no clamps)
Construction
Welded
Side knockouts
(8) 3/4 in
Bottom Knockouts
(2) 1/2 in, (2) 1/2 in, (1) 3/4 in E
Color
Red
Material
Steel
Crouse-Hinds series 4-Inch Steel Square Boxes and Covers catalog page
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings Canadian certification
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings Canadian certification
Steel Outlet Boxes for Electrical Systems
Steel Outlet Boxes for Electrical Systems
Feature: Welded steel construction delivers rugged durability that resists bending and cracking under vibration. Business Impact: Longer service life reduces maintenance cycles and replacement costs for harsh industrial environments. Application: Ideal for surface-mounted terminations in control panels and equipment rooms. Feature: Knockout arrangement with eight 3/4 in side knockouts and bottom knockouts including 2 x 1/2 in and 1 x 3/4 in E. Business Impact: Enables flexible conduit routing with fewer accessories, speeding wiring and reducing field hardware inventory. Application: General wiring terminations in automation cabinets and equipment enclosures. Feature: 30.3 cubic inch capacity fits multiple conductors and devices in compact spaces. Business Impact: Increases terminations density while maintaining accessibility, reducing panel size or additional boxes. Application: Termination for relays, terminals, and controllers in 4x4 enclosures. Feature: Red color and steel construction enhance visibility and durability in busy plants. Business Impact: Improves safety audits and quick location identification, reducing maintenance time. Application: High-traffic industrial areas and service bays. Feature: Compatibility with standard accessories from the Crouse-Hinds line, including covers and extension rings. Business Impact: Streamlines procurement and asset management with widely available parts. Application: Retrofit projects and new installations in general electrical infrastructure.
Get a Quick Quote for a Eaton TP432RED
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP432RED?
Enquire Now
FAQs
TP432RED provides eight side knockouts at 3/4 in and bottom knockouts including 1/2 in and 3/4 in E to accommodate standard conduit fittings. It is designed for surface mounting in control panels and equipment rooms, with a welded steel body for durability. Clamps are not included; select compatible conduit fittings and covers from the Crouse-Hinds line.
The TP432RED is certified for Ordinary/Non-Hazardous locations and complies with NEC/CEC standards. These certifications support safe, code-compliant installations in general industrial environments, ensuring reliable performance in typical plant electrical rooms and automation panels.
The TP432RED is a 4-inch square box with a width of 4 inches, length of 4 inches, and a depth of 2-1/8 inches. It provides a 30.3 cubic inch internal capacity, suitable for multiple conductors and compact device terminations in standard 4x4 enclosures.
The welded steel construction delivers durable enclosure for vibratory machinery in industrial settings. Its standard 4x4 footprint and eight side knockouts provide wiring flexibility, while the conduit option reduces clamps and hardware counts, enabling faster, more reliable field installs and easier maintenance in harsh environments.
By using a widely stocked, standard 4x4 square box from the Crouse-Hinds line, procurement and replacements are streamlined, reducing downtime. NEC/CEC compliance and ordinary-location suitability minimize rework, while the welded steel body lowers corrosion-related maintenance, extending service life in general industrial zones.
