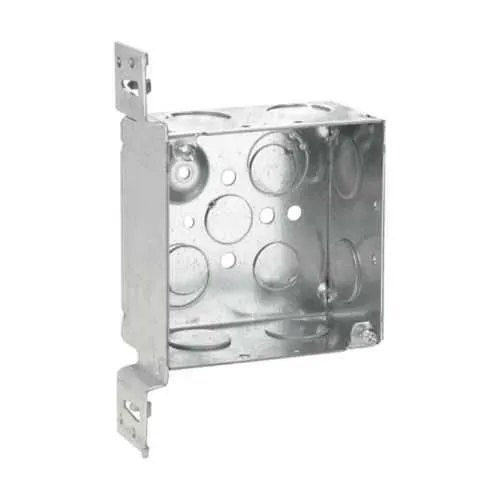

Eaton TP432VMS Square Box - VMS Welded Steel NEC/CEC
Part Number: TP432VMS
Quick Summary
Eaton TP432VMS square outlet box is a rugged enclosure solution designed for industrial panels and electrical installations. This square 4-inch box provides reliable conduit access and robust protection in demanding environments, helping reduce rework and field wiring issues. The unit supports NEC/CEC compliance and is suitable for Ordinary/Non-Hazardous Locations, giving you confidence during procurement and audits. With its welded steel construction, VMS mounting bracket, and 30.3 cubic inch capacity, it enables scalable wiring layouts while maintaining compact footprint. The combination of durability, installability, and standards alignment translates to lower lifecycle costs and faster panel assembly for your industrial projects.
Product Information
Extended Description
TP432VMS Eaton: Eaton Crouse-Hinds series Square Outlet Box, (2) 1/2", (2) 1/2", (1) 3/4" E, 4", VMS, Conduit (no clamps), Welded, 2-1/8", Steel, (8) 3/4", 30.3 cubic inch capacity
Product Name
Eaton Crouse-Hinds series square outlet box
Catalog Number
TP432VMS
UPC
662279001210
Product Length/Depth
4 in
Product Height
2.13 in
Product Width
4 in
Product Weight
1 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Box size
4"
Capacity
30.3 cubic in
Depth
2-1/8"
Conduit/cable
Conduit (no clamps)
Bracket style
VMS
Construction
Welded
Side knockouts
(8) 3/4 in
Bottom Knockouts
(2) 1/2 in, (2) 1/2 in, (1) 3/4 in E
Material
Steel
Crouse-Hinds series 4-Inch Steel Square Boxes and Covers catalog page
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings UL certification
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings UL certification
Steel Outlet Boxes for Electrical Systems
Steel Outlet Boxes for Electrical Systems
Feature: Welded, steel construction for durability → Business Impact: delivers rugged enclosure protection against impact and corrosion in harsh environments, reducing maintenance and replacement costs over time → Application: ideal for control panels and junctions in manufacturing lines. Feature: 4 inch square box with 30.3 cubic inches of capacity → Business Impact: provides ample space for conductors and devices without crowding, enabling neater wiring layouts and easier future upgrades → Application: cabinet backpanels and electrical enclosures in machine cells. Feature: (8) side knockouts at 3/4 in and bottom knockouts including (2) 1/2 in, (2) 1/2 in, (1) 3/4 in E → Business Impact: flexible conduit routing reduces field modification time and labor costs → Application: installs with common conduit fittings for fast panel wiring. Feature: VMS bracket style → Business Impact: simplifies alignment and mounting within enclosures, shortening install cycles and improving mounting reliability → Application: modular panel assemblies and enclosure interiors where precise positioning matters. Feature: Conduit (no clamps) → Business Impact: minimizes assembly steps and reduces hardware requirements, speeding up procurement-to-wiring timelines → Application: streamlined installs in high-volume manufacturing environments. Feature: Weight of 1 lb and welded construction → Business Impact: easy handling during installation and maintenance, lowering labor time on site → Application: field service and retrofit projects where weight and handling matter. Feature: Certifications and compliance (NEC/CEC; Ordinary/Non-Hazardous Locations) → Business Impact: ensures regulatory alignment and reduces risk during audits and certification processes → Application: procurement for industrial facilities with strict electrical standards.
Get a Quick Quote for a Eaton TP432VMS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP432VMS?
Enquire Now
FAQs
The TP432VMS is designed as a 4" square steel outlet box with eight 3/4" side knockouts and bottom knockouts including 1/2" and 3/4" sizes. It uses conduit entries 'Conduit (no clamps)' and a welded VMS bracket for straightforward mounting. Use standard conduit fittings compatible with 3/4" and 1/2" knockouts to achieve clean, code-compliant wiring runs. Mounting is facilitated by the VMS bracket, which helps align the box within the enclosure for a secure, professional finish.
The TP432VMS offers a 30.3 cubic inch capacity with side knockouts of eight 3/4" and bottom knockouts consisting of two 1/2", two 1/2" and one 3/4" E. This configuration supports multiple conductors and devices while allowing flexible routing and space for connectors, reducing the risk of overcrowded terminations and simplifying future revisions.
Yes. The enclosure is classified for Ordinary/Non-Hazardous Locations and adheres to NEC/CEC standards, making it appropriate for general industrial control panels and electrical junctions where hazardous area ratings are not required. This helps with compliant procurement and predictable performance in typical manufacturing environments.
TP432VMS complies with NEC/CEC standards and is specified for Ordinary/Non-Hazardous Locations. Availability of UL certification documents for the 4-Inch Steel Square Boxes and Covers further supports compliance verification during procurement and audits, ensuring consistent quality and regulatory alignment across projects.
Installing the TP432VMS offers time savings from its welded construction, No clamps conduit option, and the VMS bracket for quick mounting alignment. The 4" box size plus 30.3 cu in capacity reduces rework and future wiring changes, delivering lower labor costs, faster panel builds, and enhanced long-term reliability for industrial control enclosures.
