Eaton TP434PF Outlet Box - Ordinary/Non-Hazardous Locations
Part Number: TP434PF
Quick Summary
Eaton TP434PF outlet box provides a durable 4-inch steel enclosure for electrical wiring in industrial control panels. This robust solution addresses field wiring challenges by reducing stray conductors and enabling reliable conduit entry. It is designed to meet NEC/CEC standards and UL certification for metal square boxes, making it suitable for ordinary/non-hazardous locations. By combining strong grounding, ample capacity, and straightforward installation, it delivers reduced maintenance downtime while supporting compliant, scalable wiring strategies for growing facilities. Use this square box to streamline enclosure design, simplify conduit routing, and ensure long-term reliability in demanding environments.
Product Information
Extended Description

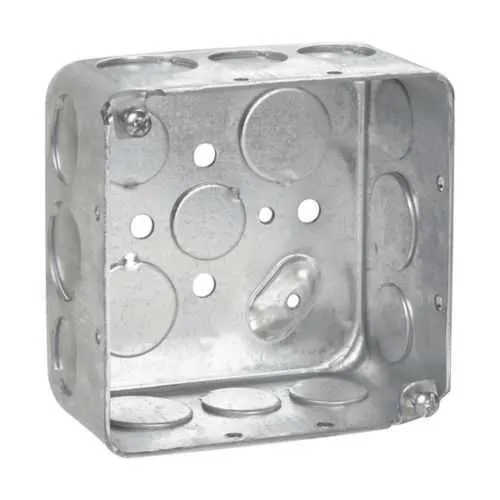

TP434PF Eaton: Eaton Crouse-Hinds series Square Outlet Box, (3) 1/2", (2) 3/4", 4", Conduit (no clamps), Drawn, 2-1/8", Steel, (8) 1/2", (4) 3/4", Includes ground screw with pigtail lead, 30.3 cubic inch capacity
Product Name
Eaton Crouse-Hinds series square outlet box
Catalog Number
TP434PF
UPC
662279003382
Product Length/Depth
4 in
Product Height
2.13 in
Product Width
4 in
Product Weight
0.85 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Box size
4"
Capacity
30.3 cubic in
Depth
2-1/8"
Conduit/cable
Conduit (no clamps)
Construction
Drawn
Side knockouts
(8) 1/2 in, (4) 3/4 in
Bottom Knockouts
(3) 1/2 in, (2) 3/4 in
Material
Steel
Special features
Includes ground screw with pigtail lead
Crouse-Hinds series 4-Inch Steel Square Boxes and Covers catalog page
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings UL certification
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings UL certification
Steel Outlet Boxes for Electrical Systems
Steel Outlet Boxes for Electrical Systems
Feature: 4-inch steel square box with 30.3 cubic inch capacity → Business Impact: Provides ample space for conductors and devices, enabling clean, safe terminations and reducing the need for splices → Application: Control panels and equipment enclosures in non-hazardous locations. Feature: Knockout pattern (eight 1/2 in and four 3/4 in side knockouts; three 1/2 in and two 3/4 in bottom knockouts) → Business Impact: Flexible conduit entry options improve routing efficiency and wiring density → Application: Indoor industrial wiring setups with varied conduit requirements. Feature: Drawn steel construction with ground screw and pigtail lead → Business Impact: Reliable grounding and durability against impact and corrosion → Application: Critical electrical installations within mission-critical equipment. Feature: NEC/CEC compliance and UL certification → Business Impact: Regulatory certainty and safer installations, reducing risk of non-compliance → Application: General purpose electrical installations in industrial facilities. Feature: Conduit entry without clamps and 4 in box size → Business Impact: Faster installation with fewer parts and simpler maintenance → Application: Retrofit and new builds in manufacturing environments. Feature: Ordinary/Non-Hazardous Locations classification → Business Impact: Suitable for typical indoor environments with predictable exposure → Application: Routine electrical wiring in control rooms, panels, and machinery enclosures.
Get a Quick Quote for a Eaton TP434PF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP434PF?
Enquire Now
FAQs
The TP434PF is a 4-inch steel square outlet box designed for ordinary/non-hazardous indoor locations. It supports conduit entries without clamps and includes a ground screw with a pigtail lead, making it ideal for control panels, equipment enclosures, and general wiring in manufacturing environments.
Key specs include a 4 inch box size, 30.3 cubic inches of internal capacity, side knockouts consisting of eight 1/2 in and four 3/4 in, and bottom knockouts of three 1/2 in and two 3/4 in. It is manufactured from steel and adheres to NEC/CEC standards, with UL certification for metal square boxes.
No. The TP434PF is classified for Ordinary/Non-Hazardous Locations. For hazardous environments, a different enclosure rated for the specific hazard class and applicable certification would be required to meet safety standards.
The TP434PF complies with NEC/CEC standards and UL certification for 4-inch steel square outlet boxes. It is designed to meet typical industrial electrical installation requirements and support compliant grounding with an included ground screw and pigtail lead.
Its conduit entry without clamps, standard 4-inch box footprint, and built-in ground screw reduce hardware counts and installation steps. The robust steel construction and UL/NEC/CEC compliance also minimize rework, enhancing overall reliability and lowering maintenance costs over the equipment lifecycle.
