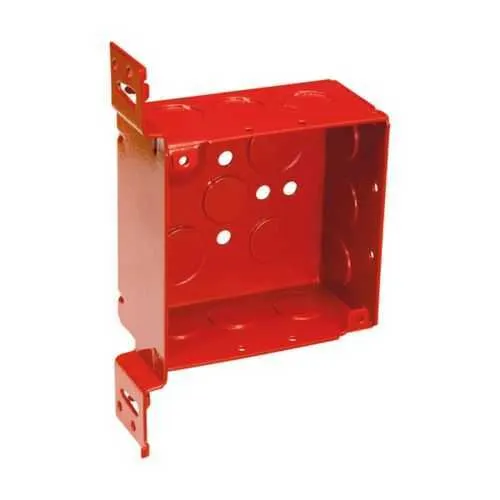

Eaton TP451RED Square Outlet Box - 4-Inch NEC/CEC
Part Number: TP451RED
Quick Summary
The Eaton TP451RED square outlet box is a rugged steel enclosure designed for protected conduit connections in industrial electrical installations. Engineers often struggle with field-fit boxes that crack under vibration, corrode after installation, or fail at knockouts, causing downtime and rework. This unit’s welded construction and durable steel housing deliver reliable performance in ordinary/non-hazardous locations, while its NEC/CEC compliance and Canadian certification references help meet multi-region requirements. The VMS bracket and welded design enable fast mounting and vibration resistance, reducing labor and warranty risk. With a 30.3 cubic inch capacity and a 4-inch square footprint, it also integrates smoothly with standard boxes and covers, supporting scalable panel design and maintenance. Color-coded red helps quick identification in complex installations.
Product Information
Extended Description
TP451RED Eaton: Eaton Crouse-Hinds series Square Outlet Box, (2) 1/2", (2) 1/2", (1) 3/4" E, 4", VMS, Red, Conduit (no clamps), Welded, 2-1/8", Steel, (6) 1/2", (3) 1/2", (1) 3/4" E, 30.3 cubic inch capacity
Product Name
Eaton Crouse-Hinds series square outlet box
Catalog Number
TP451RED
UPC
662279000442
Product Length/Depth
4 in
Product Height
2.13 in
Product Width
4 in
Product Weight
0.96 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Box size
4"
Capacity
30.3 cubic in
Depth
2-1/8"
Conduit/cable
Conduit (no clamps)
Bracket style
VMS
Construction
Welded
Side knockouts
(6) 1/2 in, (3) 1/2 in, (1) 3/4 in E
Bottom Knockouts
(2) 1/2 in, (2) 1/2 in, (1) 3/4 in E
Color
Red
Material
Steel
Crouse-Hinds series 4-Inch Steel Square Boxes and Covers catalog page
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings Canadian certification
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings Canadian certification
Steel Outlet Boxes for Electrical Systems
Steel Outlet Boxes for Electrical Systems
Feature: 4-inch square steel box with 30.3 cubic inches of capacity and a 2-1/8 inch depth. Benefit: Ample space for splices, devices, and wiring while maintaining compact panel dimensions, enabling organized, code-compliant installations. Application: Control panels and electrical enclosures in industrial settings. Feature: Conduit entries described as Conduit (no clamps) with (6) side knockouts, (3) side knockouts, (1) 3/4 inch E, and bottom knockouts (2) 1/2 inch, (2) 1/2 inch, (1) 3/4 inch E. Benefit: Faster wiring and fewer field fittings, improving installation speed and reducing leak paths or ingress points. Application: Field wiring in tight spaces where clamps are impractical. Feature: Welded construction and VMS bracket style. Benefit: Enhanced vibration resistance and secure mounting, leading to lower maintenance costs and longer service life in industrial environments. Application: High-vibration machinery and panel assemblies. Feature: Color red, steel material, and 4-inch box size. Benefit: Easy visual identification, durable protection, and compatibility with standard 4-inch boxes and covers. Application: General purpose, non-hazardous installations requiring visible, robust enclosures. Feature: Certifications and compliance (Ordinary/Non-Hazardous Locations, NEC/CEC). Benefit: Supports multi-region code compliance, reducing risk during audits and facilitating procurement for diverse projects. Application: North American electrical installations requiring NEC/CEC adherence.
Get a Quick Quote for a Eaton TP451RED
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP451RED?
Enquire Now
FAQs
TP451RED provides side knockouts: six 1/2 in, three additional 1/2 in, and one 3/4 in E, plus bottom knockouts: two 1/2 in, two 1/2 in, and one 3/4 in E. This layout supports common wiring routes with minimal additional fittings, reducing prep time, simplifying layout planning, and speeding field wiring while keeping enclosure integrity intact.
TP451RED is specified for Ordinary/Non-Hazardous Locations, per the product data. It does not list IP or hazardous-location approvals. For outdoor or potentially wet, explosive, or corrosive environments, select enclosures with appropriate IP/NEMA ratings and hazardous-location certifications to ensure compliance and safety.
The enclosure complies with NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations. Canadian certification references are available via UL pages and Eaton catalogs, supporting multi-region installations and code compliance in North American projects.
TP451RED is a 4-inch square box with 4 in width and 2-1/8 in depth, delivering 30.3 cubic inches of internal capacity. It weighs 0.96 lb and is constructed from welded steel in red color, designed for efficient device mounting and wiring within compact control panels.
The welded steel construction, VMS mounting bracket, and pre-laid knockout pattern reduce assembly time and field fitting errors, while NEC/CEC compliance and Canadian certifications minimize regulatory risk. This combination supports faster commissioning, lower warranty and maintenance costs, and dependable long-term operation in industrial environments.
