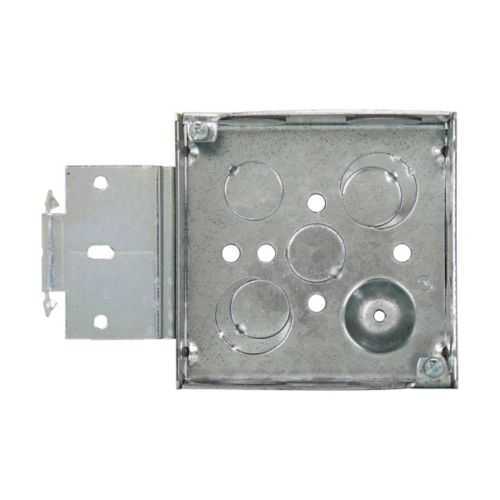

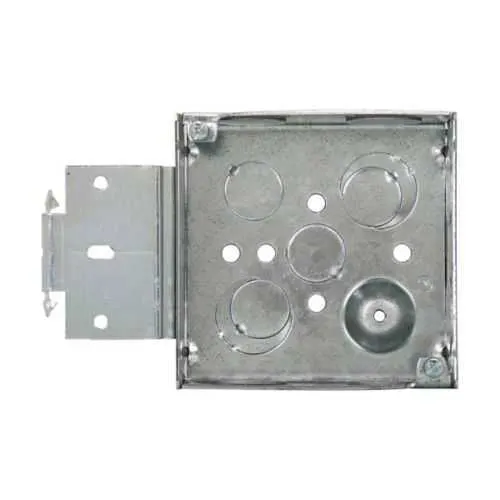

Eaton TP467MSB Square Outlet Box - NEC/CEC Standards
Part Number: TP467MSB
Quick Summary
The Eaton Crouse-Hinds square outlet box provides reliable terminations for 4-inch enclosures in demanding industrial environments. Installers often face misaligned knockouts, sealing challenges, and downtime when chasing wiring in harsh locations. This box aligns with NEC/CEC standards and UL certification for ordinary/non-hazardous locations, ensuring compliance and safety. Its steel, welded construction and MSB mounting bracket deliver durability, while the knockouts and 22 cubic inch capacity support dense wiring and fewer enclosure needs. This combination reduces install time, improves reliability, and simplifies field modifications in control panels. Whether you're wiring motors, sensors, or PLC controllers, the TP467MSB supports safe, efficient junctions with compatible conduit runs and standard accessories.
Product Information
Extended Description
TP467MSB Eaton: Eaton Crouse-Hinds series Square Outlet Box, (2) 1/2", (2) 1/2", (1) 3/4" E, 4", MSB, Conduit (no clamps), Welded, 1-1/2", Steel, (8) 3/4", 22.0 cubic inch capacity
Product Name
Eaton Crouse-Hinds series square outlet box
Catalog Number
TP467MSB
UPC
662279019284
Product Length/Depth
4 in
Product Height
1.5 in
Product Width
4 in
Product Weight
0.8 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Box size
4"
Capacity
22 cubic in
Depth
1-1/2"
Conduit/cable
Conduit (no clamps)
Bracket style
MSB
Construction
Welded
Side knockouts
(8) 3/4 in
Bottom Knockouts
(2) 1/2 in, (2) 1/2 in, (1) 3/4 in E
Material
Steel
Crouse-Hinds series 4-Inch Steel Square Boxes and Covers catalog page
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings UL certification
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings UL certification
Steel Outlet Boxes for Electrical Systems
Steel Outlet Boxes for Electrical Systems
Feature: 4-inch square box with 22 cubic inches of capacity. Impact: Enables wiring density and space for devices without overcrowding, reducing the number of enclosures in a panel. Application: Ideal for control panels and junction boxes in automation environments. Feature: Welded steel construction with MSB bracket. Impact: Delivers rigidity and vibration resistance essential for reliable performance on busy production lines. Application: Harsh industrial enclosures and equipment racks needing durable mounts. Feature: Side knockouts (eight 3/4 inch) and bottom knockouts (two 1/2 inch, two 1/2 inch, one 3/4 inch E). Impact: Flexible wiring layouts and fewer adapters, speeding wiring and reducing error potential. Application: Varied conduit runs in motor control centers and automation cabinets. Feature: Conduit (no clamps) configuration. Impact: Speeds installation by eliminating clamps, simplifying field routing. Application: Standard conduit systems with compatible accessories like extension rings and covers. Feature: NEC/CEC compliance and UL certification. Impact: Ensures code compliance and safety in ordinary locations, reducing compliance risk. Application: Industrial facilities and maintenance environments requiring certified steel boxes. Feature: Lightweight, durable steel at 0.8 lb and compact 4x4x1.5 in footprint. Impact: Easier handling, lower shipping costs, and straightforward installation in tight spaces. Application: Field installs where weight and space constraints matter, such as panel backplanes and restricted enclosures.
Get a Quick Quote for a Eaton TP467MSB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP467MSB?
Enquire Now
FAQs
Yes. The TP467MSB is a 4-inch steel square outlet box featuring eight 3/4 inch side knockouts and bottom knockouts including two 1/2 inch, two 1/2 inch, and one 3/4 inch E. It supports conduit runs without clamps and pairs with common extension rings and covers for flexible field wiring.
The box offers 22 cubic inches of internal capacity with a 1-1/2 inch depth. This combination supports multiple conductors and devices in a single enclosure, reducing the number of boxes required and improving wire management in tight control-panel layouts.
Yes. It is designed for Ordinary/Non-Hazardous Locations and complies with NEC/CEC standards, with UL certification supporting steel square outlet boxes used in standard industrial environments. This helps ensure code compliance and safer installations.
Documentation includes Crouse-Hinds steel square boxes and covers catalogs, UL certification reports, and product spec sheets. Accessories such as covers and extension rings are recommended to pair with the TP467MSB, streamlining installation and ongoing maintenance.
The TP467MSB reduces installation time with fewer components, supports denser wiring to minimize panel footprint, and provides durable welded steel construction for longer service life. The result is lower labor costs, reduced downtime, and improved panel reliability in industrial environments.
