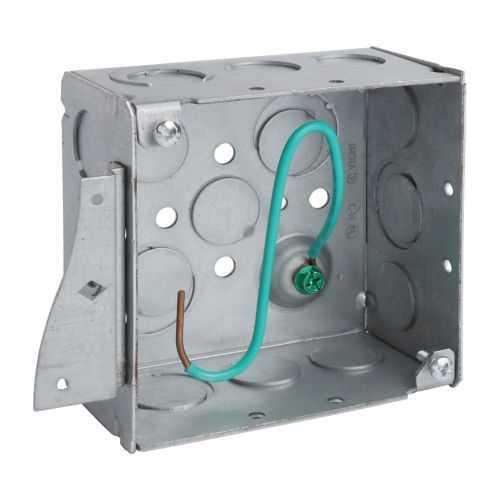

Eaton TP4HPF 4" Square Outlet Box - 30.3 cu in
Part Number: TP4HPF
Quick Summary
The Eaton TP4HPF square outlet box is a compact, rugged enclosure solution for industrial electrical installations. Facilities often face space constraints, wiring complexity, and long panel assembly times, which this box helps mitigate with welded steel construction, a robust 2-1/8" depth, and a versatile knockout pattern. It complies with NEC/CEC standards and is UL-listed for Canadian certification, making it suitable for North American applications in ordinary/non-hazardous locations. By combining a 4" box size with a pigtail ground and an efficient S bracket configuration, it accelerates installation while maintaining reliable grounding. This model supports 30.3 cubic inches of internal capacity, helping you accommodate conductors and fittings in a single, code-compliant enclosure.
Product Information
Extended Description
TP4HPF Eaton: Eaton Crouse-Hinds series 4" square outlet box, (2) 1/2", (2) 1/2"+ 3/4" E bottom KOs, Solid wire, S bracket, Single bracket, Welded, 2-1/8" depth, Steel, (8) 1/2", (4) 1/2" + 3/4" E side KOs, Includes pigtail, 30.3 cu in
Product Name
Eaton Crouse-Hinds series square outlet box
Catalog Number
TP4HPF
UPC
662277115605
Product Length/Depth
4 in
Product Height
3 in
Product Width
5 in
Product Weight
0.92 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Box size
4"
Capacity
30.3 cubic inch capacity
Depth
2-1/8"
Bracket style
S
Construction
Welded
Box ground wire
Solid
Side knockouts
(8) 1/2", (4) 1/2" + 3/4" E side KOs
Bottom Knockouts
(2) 1/2", (2) 1/2"+ 3/4" E bottom KOs
Configuration
Single bracket
Material
Steel
Special features
Includes pigtail
