Eaton TP4MPF Square Outlet Box - 4 in Steel NEC/CEC
Part Number: TP4MPF
Quick Summary
The Eaton TP4MPF Square Outlet Box provides rugged 4-inch square enclosure functionality for control panels and equipment junctions. Installers often struggle with crowded wiring, limited knockouts, and grounding continuity in harsh environments. This box carries NEC/CEC compliance and UL certification references to support code-compliant installations in ordinary locations. With welded steel construction, a pigtail ground option, and flexible mounting brackets, it reduces labor time and project costs. Designed for compatibility with the Crouse-Hinds line, it delivers reliable enclosure performance while simplifying procurement and field installation for industrial applications.
Product Information
Extended Description

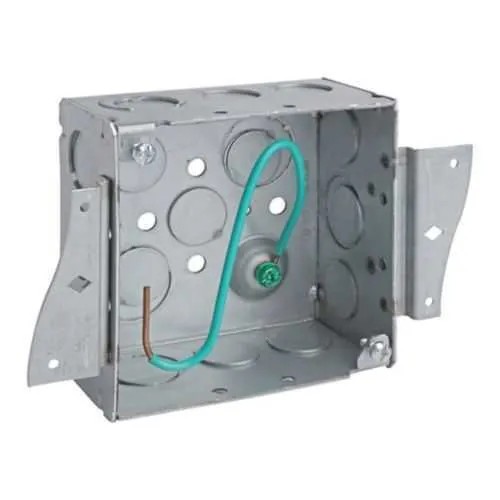

TP4MPF Eaton: Eaton Crouse-Hinds series 4" square outlet box, (2) 1/2", (2) 1/2"+ 3/4" E bottom KOs, Solid wire, S bracket, Double bracket, Welded, 2-1/8" depth, Steel, (8) 1/2", (4) 1/2" + 3/4" E side KOs, Includes pigtail, 30.3 cu in
Product Name
Eaton Crouse-Hinds series square outlet box
Catalog Number
TP4MPF
UPC
662277115636
Product Length/Depth
4 in
Product Height
3 in
Product Width
6 in
Product Weight
0.96 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Box size
4"
Capacity
30.3 cubic inch capacity
Depth
2-1/8"
Bracket style
S
Construction
Welded
Box ground wire
Solid
Side knockouts
(8) 1/2", (4) 1/2" + 3/4" E side KOs
Bottom Knockouts
(2) 1/2", (2) 1/2"+ 3/4" E bottom KOs
Configuration
Double bracket
Material
Steel
Special features
Includes pigtail
Crouse-Hinds series 4-Inch Steel Square Boxes and Covers catalog page
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings UL certification
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings UL certification
Eaton Specification Sheet - TP4MPF
Eaton Specification Sheet - TP4MPF
