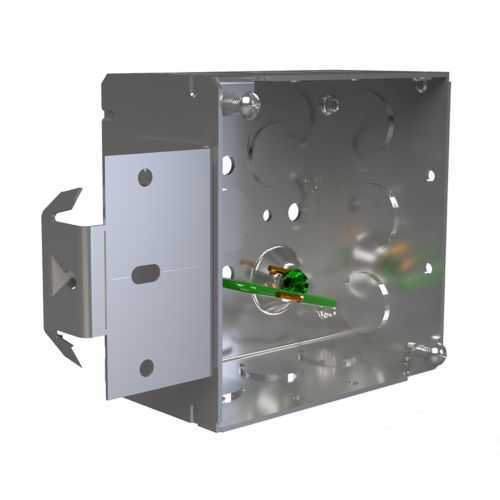

Eaton TP4MSBGRED Square Outlet Box - 4-Inch Steel, NEC/CEC
Part Number: TP4MSBGRED
Quick Summary
The Eaton TP4MSBGRED square box provides a robust 4-inch steel enclosure for industrial electrical outlets and junctions. When field wiring runs demand fast, code-compliant installations, this box reduces customization time while improving termination reliability. It supports NEC/CEC compliance and is rated for ordinary/non-hazardous locations, with Canadian certification documentation available for cross-border projects. In addition to a high-capacity interior of 30.3 cu in, you gain dependable grounding via a ground screw and a vivid red finish for safety in busy facilities. This combination delivers faster installs, fewer in-field mods, and long-term reliability for panel and equipment enclosures.
Product Information
Extended Description
TP4MSBGRED Eaton: Eaton Crouse-Hinds series square outlet box, (2) 1/2", (2) 3/4" bottom KOs, 4" box, MSB stud bracket, Red, Welded, 2-1/8" depth, (4)1/2", (2) 1/2"+3/4" EKO end, Steel, (2) 1/2", (1) 1/2"+3/4" EKO side, Ground screw, 30.3 cubic inch capacity
Product Name
Eaton Crouse-Hinds series square outlet box
Catalog Number
TP4MSBGRED
UPC
662279176109
Product Length/Depth
2.13 in
Product Height
4 in
Product Width
5.9 in
Product Weight
0.98 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Box size
4"
Capacity
30.3 cubic inch capacity
Depth
2-1/8"
Conduit/cable
Conduit (no clamps)
Bracket style
MSB
Construction
Welded
Bracket or nails
Stud bracket
Side knockouts
(2) 1/2", (1) 1/2" + 3/4" EKO
Bottom Knockouts
(2) 1/2", (2) 3/4"
End Knockouts
(4) 1/2", (2) 1/2" + 3/4" EKO
Color
Red
Material
Steel
Special features
Ground screw installed
Crouse-Hinds series 4-Inch Steel Square Boxes and Covers catalog page
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings Canadian certification
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings Canadian certification
Steel Outlet Boxes for Electrical Systems
The 4-inch steel square box delivers a generous 30.3 cubic inch capacity, enabling secure terminations for complex wiring runs and reducing the need for field extensions, which translates to faster panel wiring and fewer rework cycles. The MSB stud bracket paired with welded steel construction provides a rigid, vibration-resistant mounting platform that improves reliability in demanding environments and simplifies alignment when integrating with existing control panels. Multiple knockouts (two side 1/2 inch, two bottom 3/4 inch, and end knockouts including EKO options) give installers flexible conduit routing without resorting to adapters, minimizing labor and clamp costs while supporting diverse installation topologies. Ground screw installed standardizes grounding practices, saving time and ensuring consistent safety. The red finish enhances visibility for maintenance crews, aiding rapid inspections and reducing accidental impacts in busy facilities. NEC/CEC compliance and ordinary/non-hazardous area rating guarantee regulatory alignment for most industrial applications, while the option to reference Canadian certification materials supports cross-border projects and audits.
Get a Quick Quote for a Eaton TP4MSBGRED
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP4MSBGRED?
Enquire Now
FAQs
Mounting is simplified by the MSB stud bracket designed to align with standard panel studs. Secure the box with the included hardware, ensure the 4-inch box sits square, and use the welded steel body for rigidity. The ground screw is pre-installed to expedite grounding, and the 30.3 cubic inch interior supports multiple conductors, reducing the need for rework during relay or terminal block upgrades.
The TP4MSBGRED provides side knockouts at 1/2 inch, bottom knockouts at 1/2 and 3/4 inch, and end knockouts including EKO options. This mix offers flexible conduit entry points for various layouts, enabling direct conduit routing to control panels or machine enclosures. Conduit can be run without clamps, simplifying installation in tight spaces and reducing hardware costs.
This enclosure is designed for ordinary and non-hazardous locations, aligned with the area classification stated for the product. It is NEC/CEC compliant for general industrial use, but it should not be used in hazardous environments unless specified for such ratings. Always verify local codes and safety requirements before deployment in a plant.
The TP4MSBGRED meets NEC/CEC standards and is intended for ordinary/non-hazardous locations. Documentation is available for Canadian certification via UL references, and Eaton provides catalogs and spec guides to support compliance reviews. Use these references during audits and cross-border commissioning to demonstrate regulatory alignment.
Choosing the TP4MSBGRED delivers measurable value: higher wiring capacity with 30.3 cu in interior, faster installation through MSB mounting and pre-installed ground screw, and enhanced reliability from welded steel construction. The multiple knockouts reduce configuration time, while the red visibility aids maintenance checks, contributing to lower lifecycle costs and fewer field modifications in busy facilities.
