Eaton TP4Q10BMPF Quick-Lok 4\" Square Outlet Box - NEC/CEC
Part Number: TP4Q10BMPF
Quick Summary
Eaton TP4Q10BMPF is a Quick-Lok 4-inch square outlet box designed for robust electrical installations in industrial control panels and enclosures. Engineers often struggle with door clearance, flexible knockout layouts, and reliable grounding in tight spaces; this box addresses those challenges with a dense, factory-terminated solution. It aligns with NEC/CEC standards and is UL-certified for 4-inch steel square outlet boxes used in ordinary locations, including Canada and the US. The welded steel construction, integrated pigtail, double-sided M-bracket, and multiple knockouts deliver installation efficiency, predictable performance, and long-term reliability in demanding manufacturing environments. For system integrators and maintenance teams, this translates into faster builds, easier service access, and code-compliant enclosure hardware that scales across projects.
Product Information
Extended Description

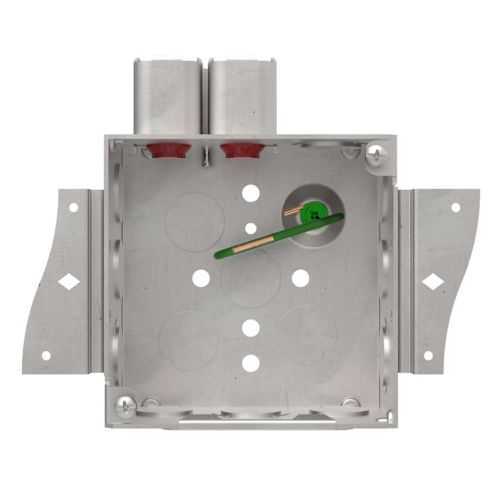

TP4Q10BMPF Eaton: Eaton Crouse-Hinds series Quick-Lok 4" square box, (2) 1/2", (2) 1/2"+ 3/4"E bottom KO, Solid wire, M bkt, 2 cable KO, Double sided bkt, Welded, 2-1/8" depth, Steel, (6) 1/2", (4) 1/2" + 3/4" E side KO, Pigtail, 1 backside supp, 30.3 cu in
Product Name
Eaton Crouse-Hinds series Quick-Lok square outlet box
Catalog Number
TP4Q10BMPF
UPC
662277115049
Product Length/Depth
5 in
Product Height
3 in
Product Width
6 in
Product Weight
1.07 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Box size
4"
Capacity
30.3 cubic inch capacity
Depth
2-1/8"
Conduit/cable
AC/MC clamps
Bracket style
M
Construction
Welded
Box ground wire
Solid
Side knockouts
(6) 1/2", (4) 1/2" + 3/4" E side KOs
Bottom Knockouts
(2) 1/2", (2) 1/2"+ 3/4" E bottom KOs
Cable knockouts
2
Configuration
Double sided bracket
Material
Steel
Special features
Includes pigtail
Type
One backside support
Crouse-Hinds series Quick-Lok Outlet Boxes and Assemblies brochure
Crouse-Hinds series Quick-Lok Outlet Boxes and Assemblies catalog pages
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings UL certification
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings UL certification
Steel Outlet Boxes for Electrical Systems
Steel Outlet Boxes for Electrical Systems
Feature: Welded steel construction provides a rigid, vibration-resistant housing that survives harsh industrial environments. Business Impact: Reduces field repairs and extends service life, lowering total cost of ownership. Application: Suitable for control panels and electrical enclosures in manufacturing facilities. Feature: Multiple knockouts including six 1/2" side KOs and bottom configurations (2 x 1/2" and 2 x 1/2"+3/4" E) plus two cable knockouts. Business Impact: Flexible conduit routing enables quick, code-compliant wiring layouts and minimizes onsite modifications. Application: Power distribution blocks and device mounting in compact panels. Feature: Includes a solid ground wire and pigtail with a backside support; Configuration supports a double-sided bracket with M-style mount. Business Impact: Ensures reliable grounding and straightforward mounting, reducing installation time and grounding variability. Application: Enclosures requiring dependable grounding and secure back supports. Feature: 30.3 cubic inch capacity with 4" box size and 2-1/8" depth; Dimensions 5" L x 3" H x 6" W. Business Impact: Adequate space for conductors and devices while maintaining compact footprint; simplifies conductor fill planning. Application: Panels needing space-efficient but capable wiring cavities. Feature: NEC/CEC compliance and UL certification for 4-Inch Steel Square Outlet Boxes; Ordinary/Non-Hazardous Locations. Business Impact: Streamlines regulatory approvals and installation documentation, reducing compliance risk. Application: OEMs and integrators deploying in North American markets. Feature: Special features include a pigtail and double-sided bracket configuration; compatible with AC/MC clamps. Business Impact: Faster wiring, easier assembly, and versatile installation options. Application: Industrial enclosures requiring adaptable mounting hardware and reliable grounding.
Get a Quick Quote for a Eaton TP4Q10BMPF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP4Q10BMPF?
Enquire Now
FAQs
TP4Q10BMPF provides six side knockouts at 1/2" and four additional 1/2"+3/4" E side eliminations, plus two 1/2" bottom knockouts and two 1/2"+3/4" E bottom knockouts, along with two cable knockouts. This enables flexible conduit routing and back-side mounting with the M-bracket configuration. It supports AC/MC clamps and a double-sided bracket for secure, code-compliant panel installations.
The TP4Q10BMPF is a 4" box with 5 inches of length, 3 inches of height, and 6 inches of width. It has a depth of 2-1/8" and a total capacity of 30.3 cubic inches, with a weight of approximately 1.07 lb. The configuration includes welds and a solid ground wire for dependable grounding during wiring and device mounting.
Yes, the TP4Q10BMPF is intended for Ordinary/Non-Hazardous Locations and is listed under NEC/CEC standards. It is UL-certified for 4-Inch Steel Square Outlet Boxes (Canada and US), ensuring compliance for typical industrial and commercial panel applications.
This box carries NEC/CEC compliance and UL certification for 4-Inch Steel Square Outlet Boxes, with UL certification reports available for both US and Canada. Downloadable literature includes a product spec page and the Crouse-Hinds Quick-Lok catalog, which support regulatory approvals and installation guidance.
The TP4Q10BMPF offers a faster wiring process due to multiple knockouts and the included pigtail, plus a welded steel body that resists vibration and wear. The double-sided M-bracket simplifies mounting, reducing labor time and service calls, which translates to lower maintenance costs and faster project completion for OEMs and integrators.
