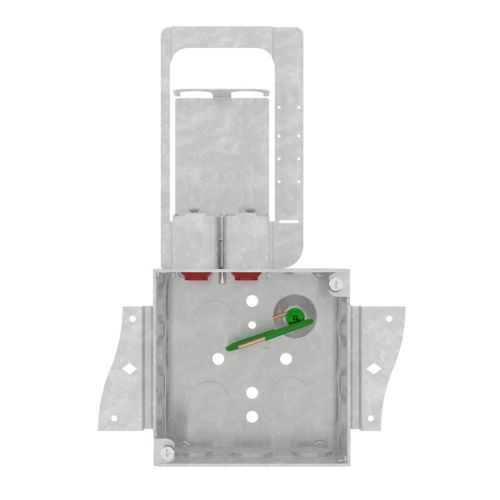

Eaton TP4Q10CBMPF Quick-Lok Square Outlet Box NEC/CEC
Part Number: TP4Q10CBMPF
Quick Summary
Eaton TP4Q10CBMPF is a Quick-Lok 4-inch square outlet box for durable electrical installations in industrial enclosures. End users often struggle with installation complexity and limited wiring options in crowded panels, which can drive errors and rework. This model is NEC/CEC compliant and carries UL Canadian certifications for ordinary locations, supporting code-compliant and safe installations. Its welded steel construction, integrated pigtail grounding, and versatile knockout patterns streamline field wiring, reduce labor time, and lower total cost of ownership. The design also aligns well with AC/MC clamps and dual-sided bracket configurations, delivering practical value across industrial environments and machine builds.
Product Information
Extended Description
TP4Q10CBMPF Eaton: Eaton Crouse-Hinds series Quick-Lok 4" square box, (2) 1/2", (2) 1/2"+ 3/4"E bottom KO, Solid wire, M bkt, 2 cable KO, Dbl sided bkt, (6) 1/2", (4) 1/2" + 3/4"E side KO, Pigtail, 1 cable mgt backside supp, 1 conn per addl. conn, 30.3 cu in
Product Name
Eaton Crouse-Hinds series Quick-Lok square outlet box
Catalog Number
TP4Q10CBMPF
UPC
662277115063
Product Length/Depth
5 in
Product Height
3 in
Product Width
6 in
Product Weight
1.16 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Box size
4"
Capacity
30.3 cubic inch capacity
Depth
2-1/8"
Conduit/cable
AC/MC clamps
Bracket style
M
Construction
Welded
Box ground wire
Solid
Side knockouts
(6) 1/2", (4) 1/2" + 3/4" E side KOs
Bottom Knockouts
(2) 1/2", (2) 1/2"+ 3/4" E bottom KOs
Cable knockouts
2
Configuration
Double sided bracket
Material
Steel
Special features
Includes pigtail
Type
One cable management backside support, one cable management connector per additional connector
Crouse-Hinds series Quick-Lok Outlet Boxes and Assemblies brochure
Crouse-Hinds series Quick-Lok Outlet Boxes and Assemblies catalog pages
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings Canadian certification
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings Canadian certification
Steel Outlet Boxes for Electrical Systems
Steel Outlet Boxes for Electrical Systems
4 inch square steel box with 30.3 cubic inch capacity → enables more room for conductors and easier wire routing → ideal for control panels and machine enclosures in manufacturing environments. Six side knockouts and four side knockouts plus two bottom knockouts (with 1/2" and 1/2"+3/4" E options) plus two cable knockouts → provides flexible entry points for diverse wiring schemes and clamps → reduces field modification, speeds installation, and minimizes conduit runs. Welded construction and solid ground wire → delivers rugged durability and reliable grounding under vibration and temperature cycling → enhances safety and regulatory compliance in ordinary locations. Double-sided M-bracket configuration with pigtail ground and backside cable management support → simplifies mounting in compact spaces and reduces additional hardware → improves install time and panel density for multi-panel racks. NEC/CEC standards compliance and Canadian certification for ordinary locations → ensures regulatory alignment across North America and supports multi-region project procurement → lowers risk during audits and project handoffs.
Get a Quick Quote for a Eaton TP4Q10CBMPF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP4Q10CBMPF?
Enquire Now
FAQs
TP4Q10CBMPF supports AC/MC clamps and features six side knockouts, four additional side KOs, two bottom KOs, and two cable knockouts. This provides flexible routing for diverse conduit types and simplifies field wiring during control-panel and machine-enclosure installs.
The box offers 30.3 cubic inches of interior volume, a 4" square form factor, and welded steel construction with a solid ground wire. It uses a double-sided M-bracket configuration, enabling versatile mounting in compact enclosures and ensuring stable support for components and conduits in demanding environments.
Yes. The TP4Q10CBMPF is rated for Ordinary/Non-Hazardous locations and carries NEC/CEC standards compliance along with Canadian certification. It is designed for durable industrial enclosures and panel wiring where rugged grounding and reliable enclosure integrity are required.
This outlet box adheres to NEC/CEC standards and is certified for ordinary locations in Canada. The product’s certifications align with multi-region electrical codes, streamlining procurement for projects requiring cross-border compliance.
The combination of flexible knockouts, pigtail grounding, and dual-sided bracket mounting reduces field modifications and hardware needs. Faster wiring, easier grounding, and reliable durability translate into lower labor costs, quicker commissioning, and reduced maintenance in long-term operation.
