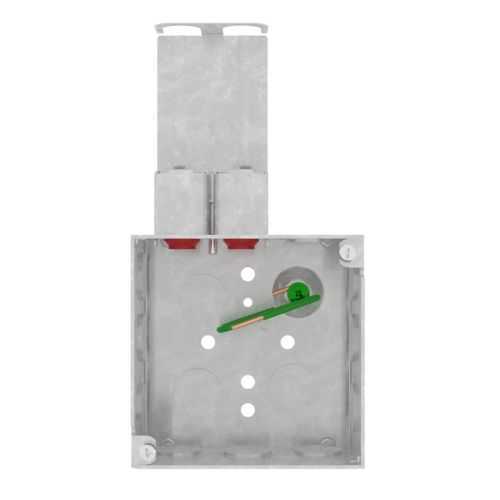

Eaton TP4Q10CPF Quick-Lok Square Outlet Box - NEC/CEC
Part Number: TP4Q10CPF
Quick Summary
TP4Q10CPF is a Quick-Lok 4-inch square outlet box designed for industrial equipment enclosures and control panels. It addresses field wiring challenges by delivering a rugged welded-steel housing, multiple knockouts, a built-in pigtail, and per-connector cable management to speed installation and reduce wiring errors. The unit is engineered to NEC/CEC standards and is suitable for Ordinary/Non-Hazardous locations, with Canadian certification support. This combination delivers reliable, code-compliant enclosure performance in demanding environments. For engineers and procurement teams, the TP4Q10CPF provides a durable, installation-friendly solution that minimizes downtime and supports scalable panel wiring as machines and lines grow.
Product Information
Extended Description
TP4Q10CPF Eaton: Eaton Crouse-Hinds series Quick-Lok 4" square box, (2) 1/2", (2) 1/2"+ 3/4" E bottom KOs, Solid wire, 2 cable KOs, Welded, 2-1/8" depth, Steel, (6) 1/2", (4) 1/2" + 3/4" E side KOs, Pigtail, 1 cable mgmt per connector, 30.3 cu in
Product Name
Eaton Crouse-Hinds series Quick-Lok square outlet box
Catalog Number
TP4Q10CPF
UPC
662277114974
Product Length/Depth
5 in
Product Height
3 in
Product Width
4 in
Product Weight
1.04 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Box size
4"
Capacity
30.3 cubic inch capacity
Depth
2-1/8"
Conduit/cable
AC/MC clamps
Construction
Welded
Box ground wire
Solid
Side knockouts
(6) 1/2", (4) 1/2" + 3/4" E side KOs
Bottom Knockouts
(2) 1/2", (2) 1/2"+ 3/4" E bottom KOs
Cable knockouts
2
Material
Steel
Special features
Includes pigtail
Type
One cable management per connector
Crouse-Hinds series Quick-Lok Outlet Boxes and Assemblies brochure
Crouse-Hinds series Quick-Lok Outlet Boxes and Assemblies catalog pages
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings Canadian certification
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings Canadian certification
Eaton Specification Sheet - TP4Q10CPF
Eaton Specification Sheet - TP4Q10CPF
Feature → Business Impact → Application: The TP4Q10CPF features a welded steel 4" square box with a total capacity of 30.3 cubic inches, providing substantial space for conductors and devices while delivering rugged mechanical protection. This translates to improved wiring density and reduced risk of overheating or crowding in control panels, enabling cleaner terminations in automation cabinets used in manufacturing environments. Application-wise, the larger capacity supports more complex circuits and future upgrades without box rework, which accelerates commissioning and reduces downtime. The welded construction also ensures robust grounding continuity, supporting long-term reliability in harsh industrial settings. These attributes suit environments where consistent performance and minimal maintenance are critical for uptime and productivity.
Get a Quick Quote for a Eaton TP4Q10CPF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP4Q10CPF?
Enquire Now
FAQs
TP4Q10CPF is compatible with AC/MC clamps and standard conduit wiring practices for a 4" square enclosure. It supports multiple knockouts and a built-in pigtail, enabling straightforward grounding and wiring within control panels, automation cabinets, and machinery enclosures. The solid steel construction ensures compatibility with demanding industrial environments and long-term reliability.
TP4Q10CPF includes six side knockouts at 1/2" and four side knockouts combining 1/2" and 3/4" E sizes on the side, plus two 1/2" bottom knockouts and two 1/2"+3/4" E bottom knockouts. Additionally, there are two cable knockouts for flexible power and control wiring runs, enabling versatile cable routing in tight spaces.
TP4Q10CPF complies with NEC/CEC standards and is classified for Ordinary/Non-Hazardous locations. It also aligns with Canadian certification requirements via UL listings for metal outlet boxes, supporting cross-border usage in industrial facilities. These certifications help ensure code compliance, safety, and consistent performance in diverse installation environments.
The TP4Q10CPF measures 5 inches in length, 3 inches in height, and 4 inches in width, with a depth of 2-1/8 inches. It provides a 30.3 cubic inch cavity, and weighs approximately 1.04 pounds. This combination yields ample space for conductors, connectors, and devices while remaining compact for panel layouts.
The TP4Q10CPF delivers installation advantages such as built-in pigtail grounding, multiple knockouts for flexible wiring options, and per-connector cable management. Its welded steel construction provides durable protection, while the 30.3 cu in capacity supports future expansion. These features collectively reduce wiring time, minimize field rework, and lower total cost of ownership for control cabinets.
