Eaton TP4Q10MPF Quick-Lok square outlet box - NEC/CEC
Part Number: TP4Q10MPF
Quick Summary
Eaton TP4Q10MPF Quick-Lok square outlet box is designed to house electrical terminations in industrial control panels and equipment enclosures. For engineers pressed to reduce installation time and maximize wire capacity, this box delivers fast, secure mounting with multiple knockouts and a durable welded-steel body. It supports NEC/CEC compliance and Ordinary/Non-Hazardous Locations ratings, helping you meet field regulatory requirements without custom parts. The double-sided M bracket, solid ground wire, and included pigtail streamline grounding and termination, while AC/MC clamps facilitate cable entry without additional accessories. With a 30.3 cubic inch capacity and a compact 4" box footprint, TP4Q10MPF provides reliable space planning for densely wired enclosures.
Product Information
Extended Description
TP4Q10MPF Eaton: Eaton Crouse-Hinds series Quick-Lok 4" square box, (2) 1/2", (2) 1/2"+ 3/4" E bottom KOs, Solid wire, M bracket, 2 cable KOs, Double sided bracket, Welded, Steel, 2-1/8" depth, (6) 1/2", (4) 1/2" + 3/4" E side KOs, Pigtail, 30.3 cu in
Product Name

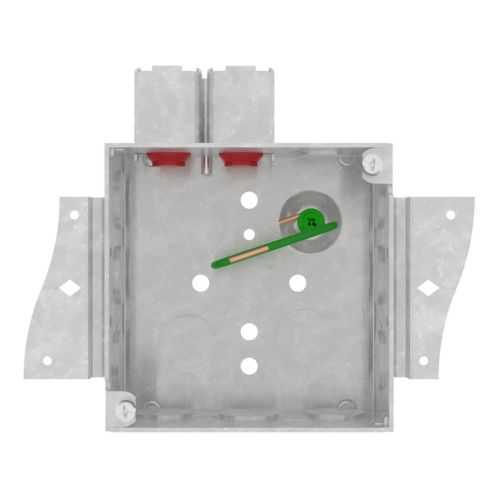

Eaton Crouse-Hinds series Quick-Lok square outlet box
Catalog Number
TP4Q10MPF
UPC
662277114981
Product Length/Depth
5 in
Product Height
3 in
Product Width
6 in
Product Weight
1.06 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Box size
4"
Capacity
30.3 cubic inch capacity
Depth
2-1/8"
Conduit/cable
AC/MC clamps
Bracket style
M
Construction
Welded
Box ground wire
Solid
Side knockouts
(6) 1/2", (4) 1/2" + 3/4" E side KOs
Bottom Knockouts
(2) 1/2", (2) 1/2"+ 3/4" E bottom KOs
Cable knockouts
2
Configuration
Double sided bracket
Material
Steel
Special features
Includes pigtail
Crouse-Hinds series Quick-Lok Outlet Boxes and Assemblies brochure
Crouse-Hinds series Quick-Lok Outlet Boxes and Assemblies catalog pages
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings Canadian certification
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings Canadian certification
Eaton Specification Sheet - TP4Q10MPF
Eaton Specification Sheet - TP4Q10MPF
Feature: 4" square Quick-Lok box with welded steel construction and a 2-1/8" depth. Business Impact: Delivers durable protection for terminations in harsh industrial environments while preserving conductor integrity and ease of access when upgrading wiring. Application: Ideal for control panels and machine enclosures where space is at a premium and reliability matters. Feature: 30.3 cubic inch capacity and precise internal layout. Business Impact: Reduces wire crowding and rework, enabling quicker terminations and safer splices. Application: Suitable for high-density wiring in manufacturing lines and process equipment. Feature: (6) side knockouts and (4) E side knockouts plus (2) bottom knockouts and 2 cable knockouts. Business Impact: Flexible routing options cut installation time and accessory needs. Application: Fits diverse feeder configurations with AC/MC clamps. Feature: Includes pigtail and solid ground wire with M bracket. Business Impact: Streamlines grounding, improves fault protection, and reduces field assembly steps. Application: Enhances reliability in junction points and control cabinet housings. Feature: Configuration with double-sided bracket and welded construction. Business Impact: Provides mounting versatility and long-term mechanical stability in rugged environments. Application: Fits modular panels and equipment housings requiring sturdy, reconfigurable support.
