Eaton TP4Q10PF Quick-Lok Square Outlet Box - NEC/CEC
Part Number: TP4Q10PF
Quick Summary
TP4Q10PF is a rugged Quick-Lok square outlet box designed for secure wiring in industrial control panels. Engineers rely on a dependable enclosure that simplifies field wiring and reduces install time. This model addresses common pain points like crowded knockouts and limited routing options with a versatile knockout pattern and welded steel construction. It meets NEC and CEC standards and is suitable for ordinary/non-hazardous locations, offering predictable performance in harsh environments. The inclusion of a pigtail and robust ground connectivity adds to installation efficiency, while the steel box provides long-term durability and corrosion resistance. For panel builders seeking code-compliant, space-efficient conduit management, this unit delivers measurable value.
Product Information
Extended Description
TP4Q10PF Eaton: Eaton Crouse-Hinds series Quick-Lok 4" square outlet box, (2) 1/2", (2) 1/2"+ 3/4" E bottom KOs, Solid wire, 2 cable KOs, Welded, 2-1/8" depth, Steel, (6) 1/2", (4) 1/2" + 3/4" E side KOs, Includes pigtail, 30.3 cu in
Product Name

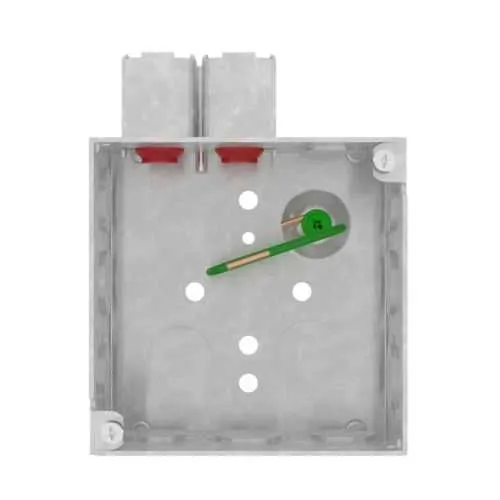

Eaton Crouse-Hinds series Quick-Lok square outlet box
Catalog Number
TP4Q10PF
UPC
662277114950
Product Length/Depth
5 in
Product Height
3 in
Product Width
4 in
Product Weight
0.98 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Box size
4"
Capacity
30.3 cubic inch capacity
Depth
2-1/8"
Conduit/cable
AC/MC clamps
Construction
Welded
Box ground wire
Solid
Side knockouts
(6) 1/2", (4) 1/2" + 3/4" E side KOs
Bottom Knockouts
(2) 1/2", (2) 1/2"+ 3/4" E bottom KOs
Cable knockouts
2
Material
Steel
Special features
Includes pigtail
