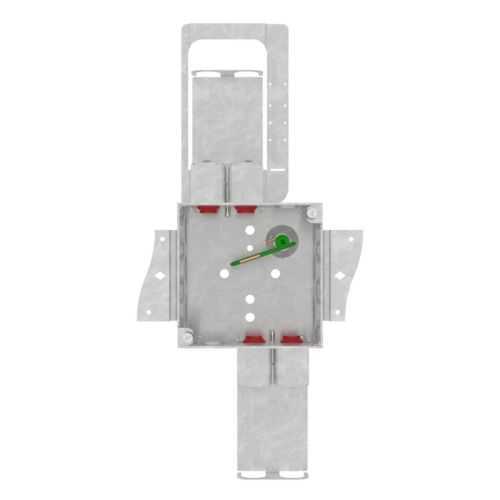

Eaton TP4Q11CBMPF Quick-LokSquare Outlet Box - 30.3 cu in
Part Number: TP4Q11CBMPF
Quick Summary
The Eaton TP4Q11CBMPF Quick-Lok square outlet box enables rugged, reliable cable management in industrial enclosures. Installers often wrestle with cramped back panels, misaligned knockouts, and mounting constraints that slow projects. This model is built for NEC/CEC compliance with an ordinary-location rating and Canadian certification documentation, giving teams clear regulatory alignment. Its welded steel construction provides durable grounding paths and long-term integrity, while a 30.3 cu in capacity supports multi-conductor runs without crowding. The box includes pigtail grounding and a backside cable management feature to streamline wiring, reducing field labor time. Compatible with AC/MC clamps and standard M-bracket mounting, it delivers straightforward installation that minimizes downtime and supports reliable, scalable electrical infrastructure.
Product Information
Extended Description
TP4Q11CBMPF Eaton: Eaton Crouse-Hinds series Quick-Lok 4" square box, (2) 1/2", (2) 1/2"+3/4"E bottom KO, Solid wire, M bkt, 4 cable KO, Dbl sided bkt, (4) 1/2", (4) 1/2" + 3/4"E side KOs, Pigtail, 1 cable mgt backside support, 1 conn per add'l, 30.3 cu in
Product Name
Eaton Crouse-Hinds series Quick-Lok square outlet box
Catalog Number
TP4Q11CBMPF
UPC
662277115162
Product Length/Depth
6 in
Product Height
3 in
Product Width
6 in
Product Weight
1.32 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Box size
4"
Capacity
30.3 cubic inch capacity
Depth
2-1/8"
Conduit/cable
AC/MC clamps
Bracket style
M
Construction
Welded
Box ground wire
Solid
Side knockouts
(4) 1/2", (4) 1/2" + 3/4" E side KOs
Bottom Knockouts
(2) 1/2", (2) 1/2"+ 3/4" E bottom KOs
Cable knockouts
4
Configuration
Double sided bracket
Material
Steel
Special features
Includes pigtail
Type
One cable management backside support, one cable management connector per additional connector
Crouse-Hinds series Quick-Lok Outlet Boxes and Assemblies brochure
Crouse-Hinds series Quick-Lok Outlet Boxes and Assemblies catalog pages
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings Canadian certification
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings Canadian certification
Steel Outlet Boxes for Electrical Systems
Steel Outlet Boxes for Electrical Systems
Feature: 4-inch square, welded steel box with 30.3 cubic inches of capacity. Business Impact: Delivers ample space for multiple conductors and devices within a single enclosure, reducing the need for additional boxes and simplifying panel planning. Application: ideal for industrial control panels, machine enclosures, and equipment cabinets where space is at a premium. Feature: Abundant knockouts including four side knockouts and bottom options plus four cable knockouts. Business Impact: maximizes routing options for AC/MC cables, reduces the need for adapters, and speeds wiring tasks. Application: flexible mounting in control panels and equipment housings. Feature: M-bracket with double-sided mounting. Business Impact: simplifies precise positioning in tight spaces, cuts installation time, and improves alignment across multiple enclosures. Application: modular cabinets and conveyor systems. Feature: Solid grounding with a ground wire and included pigtail. Business Impact: ensures robust earth path and EMI performance with minimal additional parts. Application: any metallic enclosure requiring reliable grounding. Feature: Welded construction and steel material. Business Impact: enhances durability, impact resistance, and long-term reliability in harsh industrial environments. Application: factories, processing plants, and outdoor installations. Feature: Conduit/clamp compatibility with AC/MC clamps. Business Impact: reduces need for additional fittings and enables faster, code-compliant terminations. Application: electrical distribution within enclosures and panels.
Get a Quick Quote for a Eaton TP4Q11CBMPF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP4Q11CBMPF?
Enquire Now
FAQs
The TP4Q11CBMPF is designed for straightforward mounting with AC/MC clamps and the built-in M-bracket. Start by aligning the box to the enclosure mounting surface, attach the double-sided M-bracket for stable positioning, then route conductors through the side or bottom knockouts as required. Use the pigtail grounding provided to establish a solid earth path, and secure clamps per local code. This approach minimizes field adjustments and speeds commissioning while maintaining NEC/CEC compliance.
The box features four side knockouts plus E option knockouts and two bottom knockouts with E options, plus four cable knockouts for flexible routing. It provides a total capacity of 30.3 cubic inches, supporting multi-conductor runs typical in industrial control panels. Grounding is facilitated by a solid box ground wire and an included pigtail, ensuring reliable earth continuity for safety and EMI considerations.
Yes. TP4Q11CBMPF is designed for ordinary/non-hazardous locations and is listed under NEC/CEC standards. Its welded steel construction, ample 30.3 cu in capacity, and versatile knockout options make it ideal for control panels, machine enclosures, and process equipment where robust mechanical and electrical performance is required without special environment ratings.
The product is specified for NEC/CEC compliance and ordinary-location use. Canadian certification references are available in the provided literature, and Eaton maintains documentation to support regulatory verification. This combination ensures the box meets common North American electrical installation requirements and supports cross-border projects.
Quick-Lok assemblies like TP4Q11CBMPF reduce field labor time by providing pre-engineered knockouts, straightforward grounding, and bracket mounting. The welded steel construction offers durable, long-life performance in industrial environments, lowering maintenance cycles and replacement costs. Overall, you gain faster installation, improved reliability, and lower total cost of ownership for enclosure projects.
