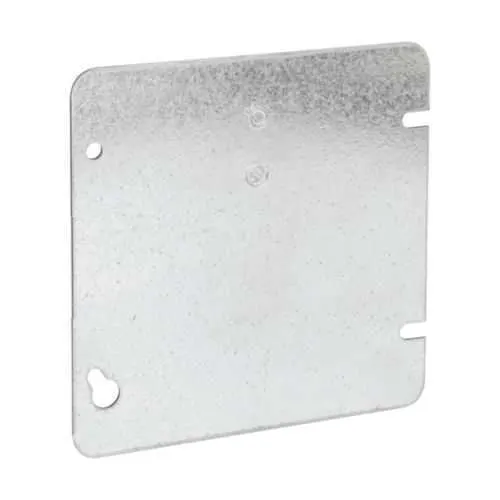

Eaton TP568 Square Cover - Steel, NEC/CEC Certification
Part Number: TP568
Quick Summary
TP568 square cover from Eaton protects 4-11/16 inch steel outlet boxes used in industrial enclosures. Blankings unused openings can invite dust ingress and misconnection risk if covers are ill-fitting. This product is NEC/CEC compliant and UL-listed for Ordinary/Non-Hazardous Locations, supporting safe, compliant installs. Built from steel with a natural finish, it delivers durable, long-term value for enclosures & electrical infrastructure projects, enabling easy future reconfigurations and consistent maintenance across sites. Its flat blank configuration and 4-11/16 inch box size simplify retrofit on legacy systems, while straightforward mounting reduces installation time and labor cost.
Product Information
Extended Description
TP568 Eaton: Eaton Crouse-Hinds series Square Cover, 4-11/16", Natural, Blank, Steel, Flat blank
Product Name
Eaton Crouse-Hinds series square cover
Catalog Number
TP568
UPC
786189105681
Product Length/Depth
4.69 in
Product Height
0.06 in
Product Width
4.69 in
Product Weight
0.4 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Box size
4-11/16"
Color
Natural
Configuration
Blank
Material
Steel
Type
Flat blank
Eaton Crouse-Hinds TP568 3D drawing
Crouse-Hinds series 4-11/16 Inch Steel Square Boxes and Covers catalog page
4-11/16 Inch Steel Square Outlet Boxes, Covers, Extension Rings UL certification
4-11/16 Inch Steel Square Outlet Boxes, Covers, Extension Rings UL certification
Eaton Specification Sheet - TP568
Eaton Specification Sheet - TP568
Feature: Steel construction and natural finish provide durable protection in standard environments. Business impact: Long service life with corrosion resistance and low maintenance, reducing replacement costs over time. Application: Ideal for industrial enclosures where a clean, unobtrusive blank is needed. Feature: 4-11/16 inch box size with flat blank configuration. Business impact: Standardized footprint enables quick swaps and inventory simplification, lowering project lead times. Application: Retrofit and new installations across Crouse-Hinds steel square boxes. Feature: Blank configuration seals unused openings. Business impact: Minimizes dust ingress, moisture intrusion, and potential arcing or contamination, improving reliability. Application: Enclosures in non-hazardous locations requiring safe blanking. Feature: NEC/CEC compliance and UL listing. Business impact: Simplifies compliance and inspection processes, reducing risk and rework. Application: Regulated electrical installations in ordinary locations. Feature: Lightweight handling at 0.4 lb and compact dimensions. Business impact: Easier installation, reduced technician fatigue, and faster project closeouts. Application: Field installs where straightforward mounting is beneficial. Feature: Material compatibility with steel square boxes in the Eaton/Crouse-Hinds family. Business impact: Easy cross-compatibility lowers spare parts stock and accelerates maintenance cycles. Application: Integrated with existing steel box systems for consistent performance.
Get a Quick Quote for a Eaton TP568
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP568?
Enquire Now
FAQs
TP568 is a flat blank square cover sized for 4-11/16 inch steel square outlet boxes. It matches standard Crouse-Hinds steel boxes and uses the same mounting footprint, enabling easy retrofit, stocking compatibility, and predictable enclosure blanking in both new builds and retrofits. It is designed for ordinary locations and integrates with the Eaton steel box family.
Yes. TP568 carries NEC/CEC compliance and UL certification for 4-11/16 inch steel square boxes used in ordinary/non-hazardous locations, giving installers confidence in code compliance and safe operation without modifying existing enclosures. This simplifies inspections and reduces rework, while aligning with common electrical infrastructure standards.
TP568 is designed for Ordinary/Non-Hazardous Locations according to area classifications. It is not rated for outdoor exposure or hazardous locations, so for damp, corrosive, or explosive environments you should select weatherproof or explosion-proof covers that meet the appropriate codes and standards.
TP568 uses standard mounting hardware compatible with 4-11/16 inch square boxes. Typical tools include a screwdriver and the appropriate screws or fasteners for square box covers. Its blank design allows quick blanking of unused knockouts, speeding up retrofit projects and minimizing downtime during installations.
Using TP568 standardizes blanking across enclosures, reducing dust ingress and contamination risk, which improves reliability and uptime. The NEC/CEC compliance and UL listing streamline audits and approvals, while the consistent size simplifies inventory management and installation labor, delivering measurable cost savings and faster project completion.
