Eaton TP568RED Square Cover - NEC/CEC Standards
Part Number: TP568RED
Quick Summary

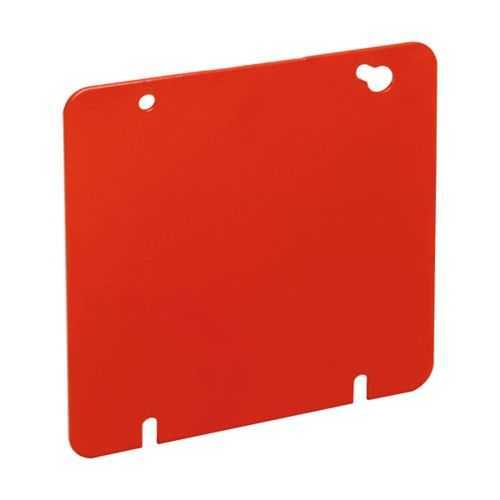

TP568RED is a steel square cover designed for 4-11/16 inch boxes used in industrial enclosures. This blank red cover helps seal and protect wiring while maintaining easy access for maintenance. The product complies with NEC/CEC standards and UL certifications, with an Ordinary/Non-Hazardous Locations area classification to support general facility environments. From a procurement perspective, the 4-11/16 inch square profile simplifies stocking and ensures compatibility across Eaton Crouse-Hinds steel square boxes, while the lightweight design minimizes installation time and handling effort. Designed for reliability in harsh industrial settings, it also reinforces consistent aesthetics across connected enclosures and panels.
Product Information
Extended Description
TP568RED Eaton: Eaton Crouse-Hinds series Square Cover, 4-11/16", Red painted, Blank, Steel, Flat blank, red
Product Name
Eaton Crouse-Hinds series square cover
Catalog Number
TP568RED
UPC
662279000497
Product Length/Depth
4.69 in
Product Height
0.06 in
Product Width
4.69 in
Product Weight
0.4 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Box size
4-11/16"
Color
Red painted
Configuration
Blank
Material
Steel
Type
Flat blank, red
Eaton Crouse-Hinds TP568RED 3D drawing
Crouse-Hinds series 4-11/16 Inch Steel Square Boxes and Covers catalog page
4-11/16 Inch Steel Square Outlet Boxes, Covers, Extension Rings UL certification
4-11/16 Inch Steel Square Outlet Boxes, Covers, Extension Rings UL certification
Eaton Specification Sheet - TP568RED
Eaton Specification Sheet - TP568RED
Feature: Steel construction with red painted finish delivers robust durability and high visibility in crowded electrical rooms. Business Impact: Reduced risk of damage from impact or moisture while enabling quick visual identification of cover-type in complex assemblies. Application: Suitable for 4-11/16 inch square outlet boxes in industrial enclosures. Feature: Flat blank configuration supports on-site customization and future wiring changes. Business Impact: Simplifies modifications and reduces rework during upgrades; Application: Ideal for maintenance-friendly panel assemblies. Feature: 4-11/16 inch box size provides a universal fit with Crouse-Hinds steel square boxes. Business Impact: Streamlines stocking, improves field interchangeability, and lowers spare-part costs. Application: Fits standard Eaton enclosures for faster deployment. Feature: NEC/CEC compliance with UL certification ensures regulatory alignment. Business Impact: Speeds audits and reduces non-compliant risk; Application: Appropriate for general facility installations in Ordinary/Non-Hazardous Locations. Feature: Lightweight at 0.4 lb with straightforward mounting. Business Impact: Eases installation, lowers labor time, and improves site safety during deployment. Application: Beneficial for quick upgrades and routine maintenance in industrial plants.
Get a Quick Quote for a Eaton TP568RED
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP568RED?
Enquire Now
FAQs
Yes. TP568RED is specifically sized for 4-11/16 inch square boxes and is designed to mount with standard Eaton Crouse-Hinds steel square box systems. Its flat blank configuration provides a generic yet secure cover that fits common mounting patterns, enabling fast field upgrades and maintenance without the need for specialized adapters.
Key specs include a 4-11/16 inch box size, red painted steel finish, blank configuration, and a weight of approximately 0.4 lb. The product name and catalog number are TP568RED, with a height of 0.06 in and overall dimensions matching the 4-11/16 inch square footprint for easy integration into standard panels.
TP568RED is supported by UL certification references for steel square outlet boxes. It is intended for Ordinary/Non-Hazardous Locations, aligning with NEC/CEC standards. These certifications help simplify compliance during audits and support reliable performance in general facilities.
Best suited for enclosure maintenance and non-hazardous applications, TP568RED protects wiring and maintains a neat, accessible panel. Its red finish aids identification, and its compatibility with 4-11/16 inch square boxes makes it ideal for Crouse-Hinds steel box systems in manufacturing, process, and building automation environments.
To maximize reliability, ensure the cover aligns with standard mounting holes on 4-11/16 inch square boxes and use proper gaskets if required by enclosure design. Its lightweight 0.4 lb profile reduces handling time and labor costs during installation, while standardization across Eaton Crouse-Hinds components helps reduce spare-part inventory and downtime.
