Eaton TP569 Square Cover - NEC/CEC Compliant (Steel)
Part Number: TP569
Quick Summary
TP569 Square Cover is a steel lid designed for 4-11/16 inch square boxes. It provides reliable lid protection for splices and terminations in industrial electrical installations. Engineers often face the challenge of finding a cover that installs quickly, stays securely in place, and remains compliant with electrical codes. This Eaton Crouse-Hinds cover is engineered for Ordinary/Non-Hazardous locations and aligns with NEC/CEC standards, with Canadian certification validation. The raised surface and mounting ears simplify alignment and fastening, reducing field rework. By integrating seamlessly with Eaton’s steel square box family, it delivers reliable protection, long service life, and faster procurement—supporting safer, code-compliant assemblies and lower total cost of ownership.
Product Information
Extended Description

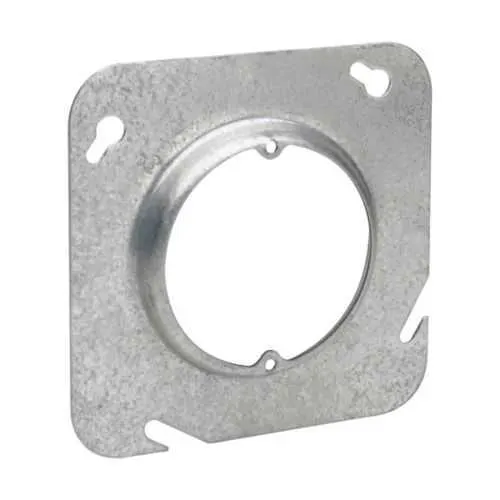

TP569 Eaton: Eaton Crouse-Hinds series Square Cover, 4-11/16", Natural, Raised surface, Steel, 1/2" raised, with ears 2-3/4", 3.3 cubic inch capacity
Product Name
Eaton Crouse-Hinds series square cover
Catalog Number
TP569
UPC
786189105698
Product Length/Depth
4.69 in
Product Height
0.5 in
Product Width
4.69 in
Product Weight
0.36 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Box size
4-11/16"
Capacity
3.3 cubic in
Color
Natural
Configuration
Raised surface
Material
Steel
Type
1/2" raised, with ears 2-3/4"
Eaton Crouse-Hinds TP569 3D drawing
Crouse-Hinds series 4-11/16 Inch Steel Square Boxes and Covers catalog page
4-11/16 Inch Steel Square Outlet Boxes, Covers, Extension Rings Canadian certification
4-11/16 Inch Steel Square Outlet Boxes, Covers, Extension Rings Canadian certification
Eaton Specification Sheet - TP569
Eaton Specification Sheet - TP569
Feature: Square cover for 4-11/16 inch steel square boxes. Business impact: Provides a secure, dust-resistant lid that protects splices and reduces maintenance, improving uptime in critical control panels. Application: Ideal for junction boxes in manufacturing and process environments where quick, reliable installation is essential. Feature: Steel construction with natural finish and raised surface. Business impact: Delivers durable equipment enclosure protection and dependable mounting surface for screws and accessories, lowering replacement frequency. Application: Suitable for heavy-duty electrical installations across facilities with standard hardware. Feature: 1/2 inch raised with ears 2-3/4 inches and 3.3 cubic inch capacity. Business impact: Supports small terminations and connectors while maintaining compact enclosure profiles, reducing space and material costs. Application: Useful for compact wiring splices in 4-11/16 inch boxes in control cabinets. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous Locations designation. Business impact: Helps ensure code-compliant installations, reducing risk of non-conformance fines and rework. Application: North American facilities seeking standardization across maintenance and project work. Feature: Compatibility with Eaton Crouse-Hinds steel square boxes and availability of technical docs. Business impact: Streamlines design-to-install workflows and accelerates procurement with access to CAD drawings and catalogs. Application: Engineering and procurement teams benefit from fast integration into drawings and bill of materials.
Get a Quick Quote for a Eaton TP569
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP569?
Enquire Now
FAQs
TP569 is specifically designed for 4-11/16 inch square boxes used in industrial electrical installations. It features a 1/2 inch raised profile with ears at 2-3/4 inches, a natural steel finish, and a 3.3 cubic inch capacity, ensuring a secure fit and straightforward mounting with common hardware.
Key specs include a 4-11/16 inch box size, 3.3 cubic inches of internal capacity, natural color, steel construction, a raised surface at 1/2 inch, and ears at 2-3/4 inches. The product accommodates standard mounting practices and aligns with NEC/CEC requirements for ordinary locations.
Yes. TP569 is classified for Ordinary/Non-Hazardous Locations and complies with NEC/CEC standards. This makes it appropriate for general purpose electrical installations where non-hazardous environments and predictable performance are expected, helping simplify compliance across projects.
Use standard mounting screws to secure the cover to the 4-11/16 inch steel square box, align the raised surface with the box opening, and maintain proper clearance around the cover. This reduces field adjustments, improves seal integrity, and minimizes maintenance needs over the cover’s service life.
Technical resources are available in the downloads section: 3D CAD drawing packages, product catalogs, and Eaton specification sheets for TP569. Access to these documents speeds design validation, BOM generation, and integration with the Crouse-Hinds steel square boxes family.
