Eaton TP571 Square Cover - 4-11/16 in Steel, NEC/CEC
Part Number: TP571
Quick Summary
TP571 Square Cover from Eaton provides a durable lid for 4-11/16 in steel square boxes. Engineers often encounter misfit lids that complicate installation and extend project timelines. It complies with NEC/CEC standards and is rated for Ordinary/Non-Hazardous locations, supporting safe, compliant panel assemblies. The natural steel finish, raised surface, 3/4 inch raised with ears 2-3/4 inch, and a 5 cubic inch capacity help maximize enclosure integrity while reducing maintenance. For procurement and field service, this cover delivers predictable fit, quick installation, and long-term reliability in industrial environments.
Product Information
Extended Description

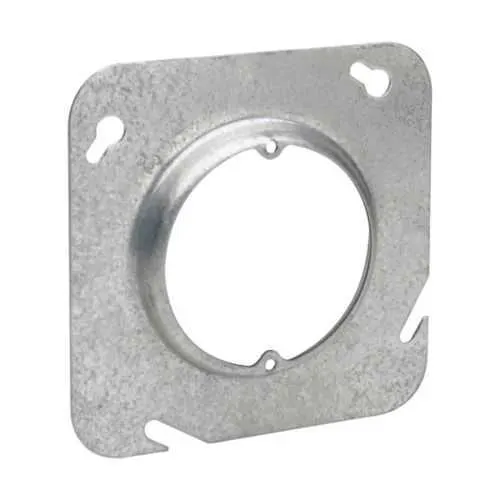

TP571 Eaton: Eaton Crouse-Hinds series Square Cover, 4-11/16", Natural, Raised surface, Steel, 3/4" raised, with ears 2-3/4", 5.0 cubic inch capacity
Product Name
Eaton Crouse-Hinds series square cover
Catalog Number
TP571
UPC
786189105711
Product Length/Depth
4.69 in
Product Height
0.75 in
Product Width
4.69 in
Product Weight
0.4 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Box size
4-11/16"
Capacity
5 cubic in
Color
Natural
Configuration
Raised surface
Material
Steel
Type
3/4" raised, with ears 2-3/4"
Eaton Crouse-Hinds TP571 3D drawing
Crouse-Hinds series 4-11/16 Inch Steel Square Boxes and Covers catalog page
4-11/16 Inch Steel Square Outlet Boxes, Covers, Extension Rings Canadian certification
4-11/16 Inch Steel Square Outlet Boxes, Covers, Extension Rings Canadian certification
Eaton Specification Sheet - TP571
Eaton Specification Sheet - TP571
Feature: Fits 4-11/16 inch steel square boxes with a 5 cubic inch capacity. Business Impact: enables compact control-panel designs and reduces the need for larger enclosures, lowering material and space costs. Application: suitable for machine control interfaces and electrical enclosures in automation lines. Feature: Raised surface design with 3/4 inch elevation and ears at 2-3/4 inches. Business Impact: improves gasket seating and mounting alignment, cutting shutdown risk during maintenance. Application: ideal where reliable seal integrity and quick cover removal are needed in rugged plant environments. Feature: Steel construction with natural finish. Business Impact: provides durable protection against incidental contact and mechanical wear, supporting long service life with minimal maintenance. Application: fits standard steel square boxes across industrial cabinets and panel enclosures. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous Location rating. Business Impact: simplifies regulatory approvals and reduces risk of non-compliance in commercial facilities. Application: streamlines procurement for compliant electrical infrastructure in safe environments. Feature: Lightweight 0.4 lb and precise dimensions (4.69 in x 4.69 in x 0.75 in). Business Impact: easy handling for installation crews and faster field retrofits, reducing labor time. Application: suitable for quick-turn projects and service updates in production floors.
Get a Quick Quote for a Eaton TP571
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP571?
Enquire Now
FAQs
The TP571 is designed to fit 4-11/16 inch square steel outlet boxes. It measures 4.69 inches in length and width with a height of 0.75 inches, providing a 5 cubic inch internal capacity and a raised surface for secure mounting and gasket seating in standard control panels.
TP571 is certified for NEC/CEC standards and Ordinary/Non-Hazardous locations, supporting compliant installations in typical industrial environments. The specification page also notes its compatibility with Canadian certification sources, aiding cross-border procurement and regulatory filing.
TP571 is intended for Ordinary/Non-Hazardous locations. It is not rated for hazardous or outdoor environments requiring explosion-proof or IP-rated enclosures, so select alternatives with appropriate certifications for those applications.
The TP571 features a raised surface with 3/4 inch elevation and ears at 2-3/4 inches, plus a 4-11/16 inch box fit. These specifics simplify alignment, provide reliable gasket seating, and enable quick cover removal during maintenance, reducing downtime in automation lines.
The TP571 is manufactured from natural finish steel, weighs 0.4 lb, and fits within compact control-panel footprints. Its durable steel construction offers robust protection for electrical components while remaining easy to handle during installation and service tasks.
