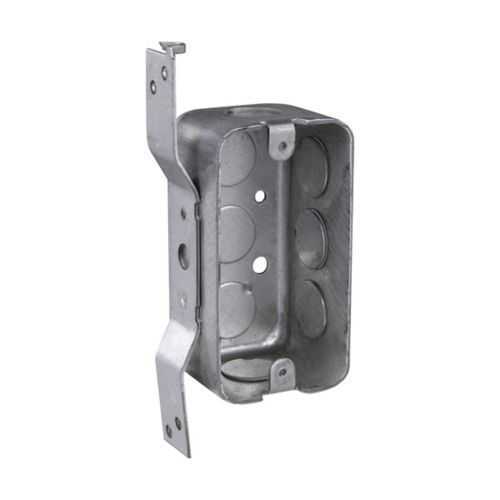

Eaton TP598 Utility Box - Steel, 13 cu in, NEC/CEC
Part Number: TP598
Quick Summary
Introducing the Eaton TP598 Utility Box—a steel enclosure that protects wiring connections in industrial installations. Operators face space constraints, knockouts that don’t align, and corrosion risk when selecting budget enclosures—and these challenges can drive project delays. The TP598 carries NEC/CEC compliance and UL certification, with ordinary/non-hazardous location suitability, ensuring safe, code-compliant deployment. Its compact 4 in length, 2.13 in width, and 1.88 in height help maximize cabinet real estate. Designed for quick wiring and durable service, it supports reliable field termination while reducing maintenance costs. For engineers and procurement teams, the TP598 delivers predictable performance, installation simplicity, and long-term cost efficiency in steel utility boxes.
Product Information
Extended Description
TP598 Eaton: Eaton Crouse-Hinds series Utility Box, (3) 1/2", S, set 1/2", 1-7/8", Steel, (5) 1/2", 13.0 cubic inch capacity
Product Name
Eaton Crouse-Hinds series utility box
Catalog Number
TP598
UPC
786189105988
Product Length/Depth
4 in
Product Height
1.88 in
Product Width
2.13 in
Product Weight
0.6 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Depth
1-7/8"
Capacity
13 cubic in
Bracket style
S, Set 1/2"
Side knockouts
(5) 1/2 in
Bottom Knockouts
(3) 1/2 in
Material
Steel
Crouse-Hinds series Steel Utility Boxes and Covers catalog page
Steel Utility Boxes and Covers UL certification
Steel Utility Boxes and Covers UL certification
Eaton Specification Sheet - TP598
Eaton Specification Sheet - TP598
Feature: Robust steel construction. Business impact: Delivers durable protection against impact, corrosion, and wear in demanding industrial environments, reducing maintenance and replacement costs. Application: Ideal for control panels and exterior installations where mechanical protection is essential. The rugged steel build aligns with standard industrial practices for steel utility boxes used in non-hazardous locations. Feature: Generous capacity of 13 cubic inches. Business impact: Supports multiple conductors, connectors, and terminations in a compact footprint, decreasing the number of boxes required and saving material costs. Application: Wiring enclosures in compact control panels and machine housings. Feature: Flexible knockouts with five side and three bottom options. Business impact: Enables fast, mess-free wiring runs and adaptable conduit routing, shortening install times. Application: Field wiring in industrial equipment, where layout and access vary. Feature: Precise dimensions and weight. Business impact: 4 in length, 2.13 in width, 1.88 in height and 0.6 lb weight optimize space in crowded cabinets while maintaining ease of handling. Application: Space-constrained electrical infrastructure installations. Feature: Compliance and certification. Business impact: NEC/CEC alignment, UL certification, and ordinary/non-hazardous location rating support regulatory conformity and project acceptance. Application: Engineering designs requiring reliable, standards-based steel utility boxes. Feature: S bracket mounting capability. Business impact: Simplifies mounting and alignment during installation, reducing accessory costs and enabling faster integration. Application: Retrofit projects and new builds in electrical infrastructure.
Get a Quick Quote for a Eaton TP598
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP598?
Enquire Now
FAQs
TP598 provides (5) side knockouts and (3) bottom knockouts, all 1/2 inch in diameter, offering flexible routing for 1/2 inch conduit. Its S bracket mounting option simplifies installation and alignment, making it compatible with common surface and back-panel mounting methods in control panels and utility cabinets.
TP598 is designed to meet NEC/CEC standards and is suitable for ordinary/non-hazardous locations. Its UL certification supports safety compliance for steel utility boxes used in commercial and industrial applications, giving engineers confidence in regulatory alignment and long-term reliability.
TP598 is specified for ordinary/non-hazardous locations and does not carry IP ratings or hazardous-location approvals. For harsh or hazardous environments, consider enclosures with appropriate ingress protection and additional certifications to ensure compliance and safety in your specific application.
The TP598 offers 4 in length, 2.13 in width, 1.88 in height with a total capacity of 13 cubic inches. This容量 supports multiple conductors and terminations while keeping the footprint compact for space-constrained panels and electrical infrastructure.
In addition to its compact footprint, TP598 features convenient knockouts and a bracket style of S, set 1/2 inch, enabling quick wiring and secure mounting. Its steel construction provides durable protection, while NEC/CEC compliance and UL certification reduce compliance risks and support faster project sign-off.
