Eaton TP5SQ50100 Outlet Box - Steel Square NEC/CEC

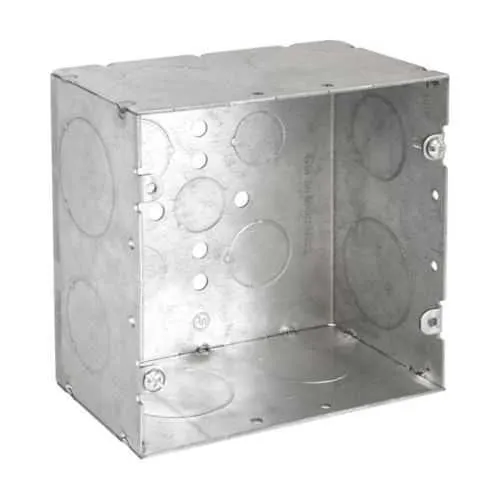

Part Number: TP5SQ50100
Quick Summary
The Eaton TP5SQ50100 outlet box is a rugged 5-inch steel square enclosure designed for low-voltage wiring in control panels and junction points. This unit addresses space constraints and corrosion risk by delivering a compact, durable solution for busy plants. It meets NEC/CEC standards and is intended for Ordinary/Non-Hazardous locations, reinforcing code compliance while reducing rework. With galvanized steel construction and welded seams, the box resists harsh environments. Its compatible knockouts and conduit options support fast installation, helping contractors and OEMs shorten project timelines and lower total installed costs.
Product Information
Extended Description
TP5SQ50100 Eaton: Eaton Crouse-Hinds series outlet box, (3)- 1/2", (2) 3/4", 5", Conduit (no clamps), Welded, 2-7/8", Galvanized steel, (4) 1/2", (8) 1", 67.0 cubic inch capacity
Product Name
Eaton Crouse-Hinds series outlet box
Catalog Number
TP5SQ50100
UPC
662276805866
Product Length/Depth
16 in
Product Height
6 in
Product Width
12 in
Product Weight
1.4 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Box size
5"
Capacity
67 cubic in
Depth
2-7/8"
Conduit/cable
Conduit (no clamps)
Construction
Welded
Side knockouts
(4) 1/2 in, (8) 1 in
Bottom Knockouts
(3) 1/2 in, (2) 3/4 in
Material
Galvanized steel
Crouse-Hinds series Low Voltage flyer
5-Inch Steel Square Low Voltage Outlet Boxes and Covers Catalog Page
Eaton Specification Sheet - TP5SQ50100
Eaton Specification Sheet - TP5SQ50100
67 cubic inch capacity within a 5-inch steel square box provides ample wiring volume while keeping enclosure footprint small. This reduces panel size, lowers material costs, and speeds wiring harness planning. Welded galvanized steel construction delivers robust seam integrity and corrosion resistance in challenging environments, reducing maintenance and replacement costs over time. Conduit no clamps enables faster installation and fewer parts on site, while side knockouts (4 x 1/2 in and 8 x 1 in) and bottom knockouts (3 x 1/2 in, 2 x 3/4 in) support multiple routing options for motor starters, sensors, and control wiring. The 16 in L × 12 in W × 6 in H footprint and 1.4 lb weight streamline handling in tight spaces, ideal for panel mounting and equipment boxes. Compliance with NEC/CEC for Ordinary/Non-Hazardous locations ensures code-ready installations reducing inspection time and rework.
Get a Quick Quote for a Eaton TP5SQ50100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP5SQ50100?
Enquire Now
FAQs
The TP5SQ50100 supports conduit runs with no clamps and provides multiple knockouts: four 1/2 in and eight 1 in side knockouts, plus three 1/2 in and two 3/4 in bottom knockouts. This enables flexible routing and quick field installation in control panels and junction boxes.
No. The box is rated for Ordinary/Non-Hazardous Locations, with NEC/CEC compliance for standard electrical installations in industrial environments.
This 5-inch steel square box has a 67 cubic inch capacity. Side knockouts include four 1/2 in and eight 1 in; bottom knockouts include three 1/2 in and two 3/4 in, supporting diverse wiring configurations.
The TP5SQ50100 follows NEC/CEC standards and carries an Ordinary/Non-Hazardous location rating, ensuring code-compliant installation in standard industrial and electrical enclosures.
Dimensions are 16 inches in length, 12 inches in width, and 6 inches in height, with a weight of approximately 1.4 pounds, making it suitable for lightweight, space-constrained installations.
