Eaton TP5SQ5075 Outlet Box - 67 cu in NEC/CEC
Part Number: TP5SQ5075
Quick Summary
The Eaton TP5SQ5075 outlet box provides a durable low‑voltage enclosure for reliable conduit terminations in industrial control panels. In tight spaces, inconsistent knockouts and non‑welded assemblies can drive field labor and create compliance risk. This unit delivers NEC and CEC compliance for ordinary/non‑hazardous locations, supported by galvanized steel construction and a welded box that withstands tough industrial environments. The 5-inch footprint and 67 cubic inch capacity support scalable layouts and multiple conductor terminations, while robust fabrication lowers maintenance costs and simplifies inspections in data, power distribution, and control applications.
Product Information
Extended Description

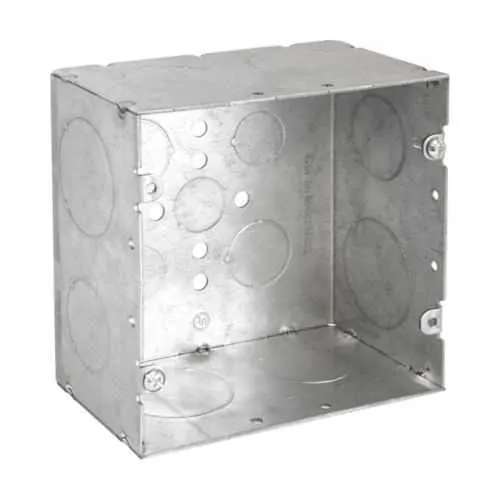

TP5SQ5075 Eaton: Eaton Crouse-Hinds series outlet box, (3)- 1/2", (2) 3/4", 5", Conduit (no clamps), Welded, 2-7/8", Galvanized steel, (12) 1/2" + 3/4" C, 67.0 cubic inch capacity
Product Name
Eaton Crouse-Hinds series outlet box
Catalog Number
TP5SQ5075
UPC
662276805897
Product Length/Depth
16 in
Product Height
6 in
Product Width
12 in
Product Weight
1.4 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Box size
5"
Capacity
67 cubic in
Depth
2-7/8"
Conduit/cable
Conduit (no clamps)
Construction
Welded
Side knockouts
(12) 1/2 in + 3/4 in C
Bottom Knockouts
(3) 1/2 in, (2) 3/4 in
Material
Galvanized steel
Crouse-Hinds series Low Voltage flyer
5-Inch Steel Square Low Voltage Outlet Boxes and Covers Catalog Page
Steel Outlet Boxes - 5 in square, low voltage
Steel Outlet Boxes - 5 in square, low voltage
Welded galvanized steel construction delivers durability and tamper resistance, reducing maintenance needs and extending service life in harsh industrial environments. This translates to lower replacement costs and fewer field repairs when panels are deployed in manufacturing plants or process lines. The box’s 5-inch size and 67 cubic inch capacity allow multiple conductors and accessory fits, supporting compact control panels and junction assemblies with room to spare for splices and connectors. A versatile knockout pattern, including twelve 1/2 inch plus 3/4 inch side knockouts and three 1/2 inch plus two 3/4 inch bottom knockouts, enables flexible wiring routes and minimizes field modifications. Conduit is supported without clamps, simplifying early-stage installation and reducing hardware requirements. Suitable for ordinary/non-hazardous locations under NEC/CEC, this enclosure helps ensure code compliance while speeding up project timelines. Its light yet rugged galvanized steel design makes handling easier on site and improves long-term reliability in power distribution and control applications.
Get a Quick Quote for a Eaton TP5SQ5075
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP5SQ5075?
Enquire Now
FAQs
TP5SQ5075 uses standard 1/2 and 3/4 inch knockouts on the sides and bottom, designed for typical conduit fittings without clamps. The welded galvanized steel enclosure is suitable for mounting on standard control panels and equipment racks. For best results, pair with compatible conduit adapters and hardware rated for non-hazardous locations and ensure mounting surfaces are flat and clean before fastening.
Key specs include a 5-inch square box, 67 cubic inches of internal capacity, 16 inches by 12 inches by 2-7/8 inches overall dimensions, side knockouts of 12x 1/2 in + 3/4 in, bottom knockouts of 3x1/2 in and 2x3/4 in, welded construction, and galvanized steel material. It is intended for ordinary/non-hazardous locations and complies with NEC/CEC standards, with conduit (no clamps) installation guidance.
TP5SQ5075 is specified for Ordinary/Non-Hazardous Locations. It is not rated for hazardous environments. When projects involve hazardous areas, select enclosures with appropriate explosion-proof or dust-ignition-proof ratings and verify compliance with local electrical codes and safety standards before deployment.
The welded construction and pre-defined knockouts reduce field fabrication and fastener requirements, leading to faster installation and fewer on-site adjustments. Since clamps are not included, you can tailor conduit fittings to current project needs, avoiding unnecessary hardware. The 67 cu in capacity helps minimize the number of separate boxes for modest control circuits, potentially shortening assembly and inspection times.
TP5SQ5075 carries NEC/CEC standards for Ordinary/Non-Hazardous Locations, ensuring compliance for typical industrial enclosures. This certification supports safe integration into control panels and distribution boxes, simplifies inspections, and reduces risk of non-compliance penalties. Product labeling and area classification guidance confirm suitability for standard, non-hazardous electrical installations in manufacturing or facility environments.
