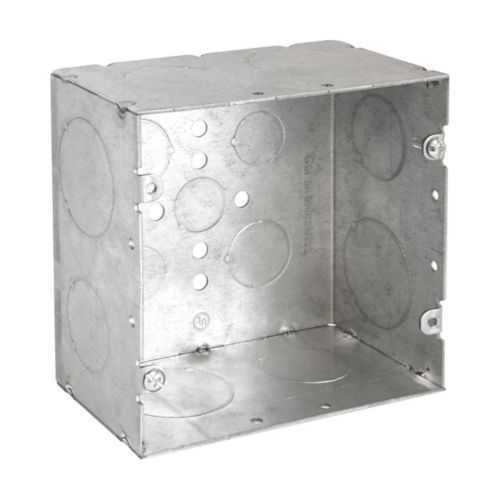

Eaton TP5SQ5075-BLUE Outlet Box - NEC/CEC
Part Number: TP5SQ5075-BLUE
Quick Summary
Eaton TP5SQ5075-BLUE outlet box is a rugged five-inch steel enclosure designed for low-voltage circuits in industrial environments. This Crouse-Hinds series box helps prevent field rework by providing a durable, ready-to-wire housing that tolerates busy shop floors. It complies with NEC/CEC standards and is classified for Ordinary/Non-Hazardous Locations, ensuring safe deployment in standard facilities. By combining galvanized steel with a blue-painted finish, it offers quick visual identification and long-term reliability. This enclosure supports scalable wiring layouts and faster maintenance cycles, delivering cost savings through improved install efficiency and reduced downtime for electrical systems.
Product Information
Extended Description
TP5SQ5075-BLUE Eaton: Eaton Crouse-Hinds series outlet box, (3)- 1/2", (2) 3/4", 5", Blue painted, Conduit (no clamps), Welded, 2-7/8", Galvanized steel, (12) 1/2" + 3/4" C, 67.0 cubic inch capacity
Product Name
Eaton Crouse-Hinds series outlet box
Catalog Number
TP5SQ5075-BLUE
UPC
662276805057
Product Length/Depth
16 in
Product Height
6 in
Product Width
12 in
Product Weight
1.4 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Box size
5"
Capacity
67 cubic in
Depth
2-7/8"
Conduit/cable
Conduit (no clamps)
Construction
Welded
Side knockouts
(12) 1/2 in + 3/4 in C
Bottom Knockouts
(3) 1/2 in, (2) 3/4 in
Color
Blue painted
Material
Galvanized steel
Crouse-Hinds series Low Voltage flyer
5-Inch Steel Square Low Voltage Outlet Boxes and Covers Catalog Page
Eaton Specification Sheet - TP5SQ5075-BLUE
Eaton Specification Sheet - TP5SQ5075-BLUE
Feature: Five-inch box size with 67 cubic inch capacity → Business Impact: Accommodates larger splices and multiple terminations without oversizing enclosures, reducing panel space requirements and material costs. Application: Ideal for control panels and low-voltage distribution where space is at a premium. Feature: Conduit entries with no clamps and multiple knockouts (side and bottom) → Business Impact: Enables fast, clamp-free wiring and flexible routing, shortening installation time and improving cable management in dense installations. Application: Suitable for retrofit and new-build low-voltage conduit runs. Feature: Welded galvanized steel construction → Business Impact: Delivers durable, corrosion-resistant protection in harsh industrial environments, lowering maintenance and replacement frequency. Application: Factory floors, rugged enclosures, and outdoor-rated indoor spaces. Feature: Blue painted finish → Business Impact: Enhances visibility for installers and service technicians, reducing misidentification during maintenance. Application: High-traffic electrical rooms and equipment bays. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous Locations classification → Business Impact: Ensures regulatory conformity and safe operation in standard facilities, reducing risk of non-compliant wiring practices. Application: General industrial applications requiring non-hazardous location enclosures. Feature: Lightweight design at 1.4 lb with compact dimensions → Business Impact: Simplifies handling, reduces installation fatigue, and speeds up mounting in overhead or wall-mount applications. Application: Quick deployment in constrained spaces where weight matters.
Get a Quick Quote for a Eaton TP5SQ5075-BLUE
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP5SQ5075-BLUE?
Enquire Now
FAQs
The box is designed for conduit (no clamps) with side knockouts and bottom knockouts. Use the 12 side knockouts (1/2 in + 3/4 in) and the three 1/2 in plus two 3/4 in bottom knockouts to route conductors, then secure the enclosure to a mounting surface. Welded galvanized steel construction provides a rigid, long-lasting housing.
This five-inch box offers a 67 cubic inch capacity with a depth of 2-7/8 inches. External dimensions reflect a compact footprint suitable for control panels, while internal space supports multiple splices and terminations.
Yes. The enclosure is classified for Ordinary/Non-Hazardous Locations and complies with NEC/CEC standards, making it appropriate for standard indoor industrial environments that do not present hazardous location conditions.
The box uses galvanized steel with a welded construction and a blue painted finish, delivering corrosion resistance and high visibility, which helps reduce maintenance needs and misidentification in busy facilities.
Its combination of durable galvanized steel, standard knockouts, and lightweight design (1.4 lb) minimizes field labor, speeds up wiring, and reduces the likelihood of enclosure-related failures, supporting a favorable total cost of ownership.
