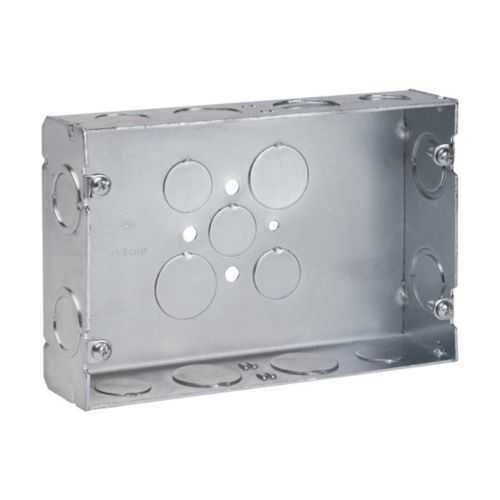

Eaton TP629 Gang Box - NEC/CEC Steel, 45 cu in Capacity
Part Number: TP629
Quick Summary
The Eaton TP629 gang box securely houses electrical connections in industrial control panels and outdoor enclosures. End users often struggle with misaligned knockouts and cramped spaces that slow wiring and testing. This enclosure meets NEC/CEC standards for ordinary/non‑hazardous locations and is built from durable steel for long life. By combining robust construction with flexible knockout configurations, it helps maintenance teams reduce rework and accelerate panel assembly. With a 45 cubic inch capacity and standard industrial knockouts, electricians can route conductors efficiently while staying code-compliant.
Product Information
Extended Description
TP629 Eaton: Eaton Crouse-Hinds series Gang Box, (3) 1/2", (2) 3/4", 1-5/8", (1) 1/2", (1) 3/4", Steel, Two-gang, (2) 1/2", (2) 3/4", 45.0 cubic inch capacity
Product Name
Eaton Crouse-Hinds series gang box
Catalog Number
TP629
UPC
786189106299
Product Length/Depth
6.81 in
Product Height
1.63 in
Product Width
4.5 in
Product Weight
0.45 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Depth
1-5/8"
Number of gangs
Two-gang
Capacity
45 cubic in
End Knockouts
(1) 1/2 in, (1) 3/4 in
Side knockouts
(2) 1/2 in, (2) 3/4 in
Bottom Knockouts
(3) 1/2 in, (2) 3/4 in
Material
Steel
Crouse-Hinds series Steel Gang Boxes and Covers catalog page
Steel Gang Boxes and Covers UL certification
Steel Gang Boxes and Covers UL certification
Steel Outlet Boxes for Electrical Systems
Steel Outlet Boxes for Electrical Systems
Feature: Steel two-gang construction provides robust protection against impact and harsh conditions. Business Impact: Improves reliability and reduces maintenance costs over the enclosure’s life. Application: Suitable for control panels and industrial enclosures where durability matters. Feature: Knockout versatility with end, side, and bottom options enables flexible wiring and conduit routing. Business Impact: Cuts installation time and minimizes rework in busy manufacturing lines. Application: Ideal for machines with evolving wiring needs. Feature: 45 cubic inch capacity supports multiple devices without crowding conductors. Business Impact: Frees panel space and simplifies wiring layouts, lowering commissioning time. Application: Effective for compact control panels in automation closets. Feature: NEC/CEC compliance for Ordinary Locations provides code assurance. Business Impact: Eases audits and accelerates approvals. Application: Meets regulatory requirements in commercial and light-industrial settings. Feature: Compact footprint (6.81 in L x 4.5 in W x 1.63 in H) and weight ~0.45 lb. Business Impact: Easier installation, reduced mounting footprint, and faster upgrades. Application: Flexible for retrofit projects and modernized automation racks.
Get a Quick Quote for a Eaton TP629
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP629?
Enquire Now
FAQs
The TP629 supports standard two-gang mounting in common industrial enclosures, with overall dimensions of 6.81 in L x 4.5 in W x 1.63 in H. It uses standard knockouts: end, side, and bottom, sized for 1/2 in and 3/4 in conduits. This layout ensures straightforward alignment with compatible Eaton Crouse-Hinds steel gang boxes and rapid panel assembly.
Critical specs include a 45 cubic inch internal capacity and a steel construction that resists impact in harsh environments. The footprint is 6.81 inches long, 4.5 inches wide, and 1.63 inches deep, with a weight of about 0.45 pounds. Knockouts include one end pair (1/2 and 3/4), two side knockouts (1/2 and 3/4), and three end bottom knockouts—facilitating flexible wiring and conduit routing.
Yes. The TP629 is specified for Ordinary/Non-Hazardous Locations and is manufactured to NEC/CEC standards, enabling compliant installations in commercial, industrial, and manufacturing environments. Steel construction provides durability in vibration-prone settings, while the two-gang capacity accommodates multiple devices without crowding conductors. This makes it a dependable choice for panels, machine dashboards, and protected enclosures.
Certification and reference materials for the TP629 are available through Eaton and UL sources. The product catalog page and steel gang boxes datasheet cover dimensions, knockouts, and capacity, while UL certification pages verify compliance for steel gang boxes in Canada and the U.S. Electricians can also access the Crouse-Hinds steel gang boxes catalog page for installation guidelines.
Choosing the TP629 offers longer service life due to steel construction, reducing repaint, corrosion, and replacement costs in harsh environments. Its flexible knockout pattern reduces wiring time, while compact 6.81 in length minimizes enclosure footprint, freeing panel space and simplifying future expansions. Overall, maintenance intervals shorten, downtime decreases, and total cost of ownership improves during equipment upgrades.
