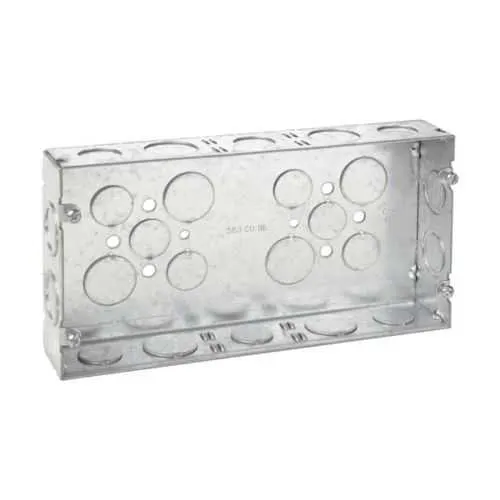

Eaton TP630 Three-Gang Steel Gang Box - 58 cu in Capacity NEC/CEC
Part Number: TP630
Quick Summary
TP630 is a steel three-gang gang box for durable panel wiring in industrial control applications. A common challenge is meeting code while accommodating a variety of conductors and devices within a compact footprint. This enclosure is NEC/CEC compliant and UL-listed for ordinary/non-hazardous locations, with additional UL certification for steel gang boxes in Canada. By delivering 58 cu in of space in a rugged steel shell, it enables faster installs, fewer field modifications, and longer service life, delivering real business value for panel builders, maintenance teams, and facilities managers alike.
Product Information
Extended Description
TP630 Eaton: Eaton Crouse-Hinds series Gang Box, (6) 1/2", (4) 3/4", 1-5/8", (1) 1/2", (1) 3/4", Steel, Three-gang, (3) 1/2", (2) 3/4", 58.0 cubic inch capacity
Product Name
Eaton Crouse-Hinds series gang box
Catalog Number
TP630
UPC
786189106305
Product Length/Depth
8.63 in
Product Height
1.63 in
Product Width
4.5 in
Product Weight
0.58 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Depth
1-5/8"
Number of gangs
Three-gang
Capacity
58 cubic in
End Knockouts
(1) 1/2 in, (1) 3/4 in
Side knockouts
(3) 1/2 in, (2) 3/4 in
Bottom Knockouts
(6) 1/2 in, (4) 3/4 in
Material
Steel
Crouse-Hinds series Steel Gang Boxes and Covers catalog page
Steel Gang Boxes and Covers UL certification
Steel Gang Boxes and Covers UL certification
Eaton Specification Sheet - TP630
Eaton Specification Sheet - TP630
Feature: Three-gang steel enclosure with a 58 cubic inch capacity supports multiple conductors and devices in a compact footprint. Business impact: This combination reduces the need for larger panels and extra fittings, lowering material costs and simplifying panel layouts. Application: Ideal for control panels, junction boxes, and equipment enclosures in industrial facilities where space is at a premium and reliability is required. Feature: Versatile knockouts arranged for flexible routing — end knockouts (1/2 in and 3/4 in), side knockouts (3x 1/2 in and 2x 3/4 in), and bottom knockouts (6x 1/2 in and 4x 3/4 in). Business impact: Enables fast wiring and reduces field modifications by accommodating typical conduit schedules while maintaining a neat, code-compliant installation. Application: Suitable for control wiring runs in machine panels and electrical cabinets. Feature: Rugged steel construction delivers durability and impact resistance suitable for harsh industrial environments. Business impact: Longer service life and lower maintenance costs, with easy field modifications when upgrading or expanding circuits. Application: Factory floors, process lines, and outdoor or partially protected installations where enclosure integrity matters. Feature: Compliance and certifications include NEC/CEC standards and UL certifications for steel outlet boxes, with ordinary/non-hazardous locations endorsement and cross-border Canada recognition. Business impact: Reduces regulatory risk and accelerates procurement by providing a single, compliant enclosure across projects. Application: Critical for panel builds that require multi-region approval and consistent documentation. Feature: Precise dimensions and weight — 8.63 in length, 4.5 in width, 1.63 in height, and a lightweight 0.58 lb enclosure. Business impact: Easier handling, faster site installation, and minimized shipment costs. Application: Compatible with standard Eaton Crouse-Hinds steel gang boxes and covers, designed to integrate into existing layouts without modification.
Get a Quick Quote for a Eaton TP630
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP630?
Enquire Now
FAQs
The TP630 includes end knockouts (1/2 in and 3/4 in), side knockouts (3x 1/2 in and 2x 3/4 in), and bottom knockouts (6x 1/2 in and 4x 3/4 in). This layout provides routing flexibility for standard conduits and multi-circuit wiring, reducing the need for field modifications. Plan conductor runs to match the most accessible knockout pattern for faster, compliant wiring.
Yes. The TP630 is designed to meet NEC/CEC standards for metallic outlets in ordinary locations and is UL certified for steel gang boxes. This combination supports compliance across US and Canadian projects, reducing audit findings and ensuring safe installations. Always verify current listings in the manufacturer datasheet or UL database for your region.
Absolutely. With 58 cubic inches of capacity and a three-gang configuration, the TP630 accommodates multiple devices and conductors within a compact footprint. Its rugged steel construction and NEC/CEC compliance make it a reliable choice for control panels, junctions, and equipment enclosures in non-hazardous factory environments.
The TP630 measures 8.63 inches in length, 4.5 inches in width, and 1.63 inches in height, with a weight of about 0.58 pounds. These compact, lightweight dimensions simplify mounting in tight spaces and reduce handling effort during installation and field upgrades, while still offering robust 58 cu in capacity.
Official TP630 specifications and datasheets are available from Eaton. Key documents include the Crouse-Hinds steel gang boxes and covers catalog page, the TP630 specification sheet, and UL certification listings. These resources provide detailed dimensions, knockouts, and installation guidelines to support procurement and field work.
