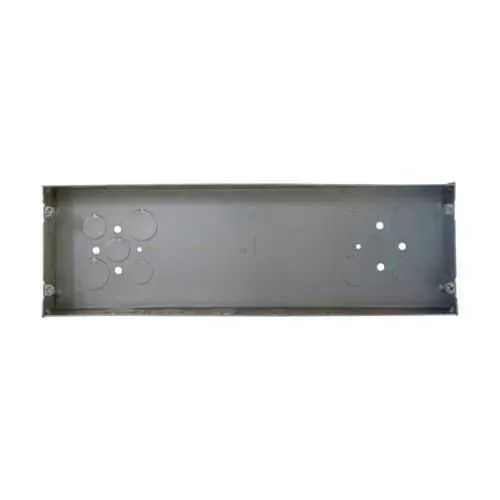

Eaton TP641 Six-Gang Steel Gang Box - NEC/CEC
Part Number: TP641
Quick Summary
TP641 is a six-gang steel gang box designed for industrial control panels and junction boxes in harsh facilities. Many installs wrestle with limited knockout options and insufficient space, forcing field improvisation and added hardware. UL-listed, NEC/CEC compliant, and rated for ordinary/non-hazardous locations ensure safe, code‑compliant wiring in demanding environments. Designed to reduce install time and unify enclosure solutions, it supports quick wiring and cleaner assemblies, helping projects meet timelines while controlling costs.
Product Information
Extended Description
TP641 Eaton: Eaton Crouse-Hinds series Gang Box, (6) 1/2", (4) 3/4", 1-5/8", (1) 1/2", (1) 3/4", Steel, Six-gang, (4) 1/2", (4) 3/4", 95.0 cubic inch capacity
Product Name
Eaton Crouse-Hinds series gang box
Catalog Number
TP641
UPC
786189106411
Product Length/Depth
14.06 in
Product Height
1.63 in
Product Width
4.5 in
Product Weight
0.95 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Depth
1-5/8"
Number of gangs
Six-gang
Capacity
95 cubic in
End Knockouts
(1) 1/2 in, (1) 3/4 in
Side knockouts
(4) 1/2 in, (4) 3/4 in
Bottom Knockouts
(6) 1/2 in, (4) 3/4 in
Material
Steel
Crouse-Hinds series Steel Gang Boxes and Covers catalog page
Steel Gang Boxes and Covers UL certification
Steel Gang Boxes and Covers UL certification
Steel Outlet Boxes for Electrical Systems
Steel Outlet Boxes for Electrical Systems
Feature: Six-gang steel construction delivers rugged durability and dense wiring capacity. Benefit: reduces the need for multiple boxes, saving floor space and labor hours. Application: panel assemblies in manufacturing cells and auxiliary equipment rooms. Feature: 95 cubic inch capacity accommodates multiple conductors and devices. Benefit: enables more organized wiring layouts and less hardware handling. Application: motor control centers, relays, and terminal block assemblies. Feature: Comprehensive knockout pattern — end (1/2 in, 3/4 in), side (4 of each size), bottom (6 of 1/2 in and 4 of 3/4 in). Benefit: flexible wiring routes and faster terminations. Application: complex control wiring and field terminations in control panels. Feature: Dimensions of 14.06 in length, 4.5 in width, and 1.63 in depth. Benefit: fits common enclosure footprints and mounting patterns, reducing layout surprises. Application: retrofit projects and new installations in standard enclosures. Feature: NEC/CEC compliance and UL listing with Ordinary/Non-Hazardous Location rating. Benefit: ensures regulatory alignment and safe operation with minimal risk of non-compliance. Application: industrial installations in non-hazardous environments, IC/Control cabinet wiring. Feature: Lightweight at 0.95 lb with compatibility to Crouse-Hinds steel gang box accessories. Benefit: easier handling and faster installation, lowering total installed cost. Application: field deployments where tool access is limited and speed matters.
Get a Quick Quote for a Eaton TP641
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP641?
Enquire Now
FAQs
Yes. TP641 is designed to accept common conduit sizes and pairs with Crouse-Hinds steel gang box covers and accessories. The knockout arrangement and 14.06 in length support straightforward mounting in standard enclosures, reducing field adaptation time and ensuring a clean, secure installation in panel assemblies.
TP641 carries NEC/CEC compliance and UL listing for ordinary/non-hazardous locations, ensuring code-conforming installations. With a 95 cubic inch capacity and a structured knockout pattern, it supports safe wiring density, orderly terminations, and predictable performance in industrial panels.
TP641 excels in manufacturing, process industries, and general industrial control panels. Its six-gang layout, ample capacity, and robust steel construction are well-suited for motor controls, relay blocks, and junctions that demand durable enclosures and reliable, code-compliant wiring in non-hazardous environments.
TP641 is UL-listed and NEC/CEC compliant, with an Ordinary/Non-Hazardous Location rating. These certifications simplify compliance audits, support safe operation in typical industrial settings, and provide documented assurance for electrical inspections and safety reviews.
The six-gang steel design reduces the number of enclosures needed, while the generous knockouts and compact footprint speed wiring and mounting. UL/NEC/CEC certifications minimize rework risk, and lighter weight eases handling in confined spaces, delivering faster deployments and lower labor costs over the life of a project.
