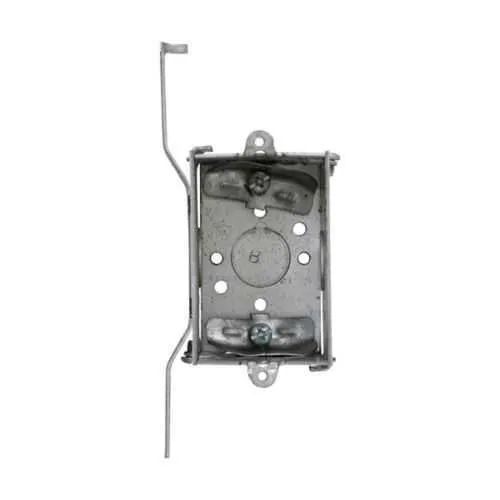

Eaton TP664 Steel Switch Box - NEC/CEC Certified, 14 cu in
Part Number: TP664
Quick Summary
Eaton TP664 Switch Box delivers rugged steel enclosure protection for electrical controls in industrial panels. In tight installations, engineers often wrestle with limited space, awkward knockouts, and wiring congestion that slows assembly and increases risk. It carries NEC/CEC compliance, UL certification for steel switch boxes, and ordinary/non-hazardous area classification to keep installations safe and code-compliant. Designed for control panels, motor starters, and automation cabinets, the TP664 uses NM clamps, 2-cable knockouts, and a gangable configuration to maximize space, simplify routing, and allow future expansion with minimal hardware changes. This combination reduces installation time and maintenance costs while improving reliability in harsh industrial environments.
Product Information
Extended Description
TP664 Eaton: Eaton Crouse-Hinds series Switch Box, (1) 1/2", S, set 5/8", 2, NM clamps, 2-3/4", 2-cable, Steel, (1) 1/2", Gangable, 14.0 cubic inch capacity
Product Name
Eaton Crouse-Hinds series switch box
Catalog Number
TP664
UPC
786189106640
Product Length/Depth
2 in
Product Height
3 in
Product Width
2.75 in
Product Weight
0.7 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Depth
2-3/4"
Type
Gangable
Capacity
14 cubic in
Conduit/cable
NM clamps
Bracket style
S, Set 5/8"
End Knockouts
2-cable
Side knockouts
(1) 1/2 in
Bottom Knockouts
(1) 1/2 in
Cable knockouts
2
Material
Steel
Crouse-Hinds series Steel Switch Boxes catalog page
Steel Switch Boxes UL certification
Steel Switch Boxes UL certification
Eaton Specification Sheet - TP664
Eaton Specification Sheet - TP664
Feature: Steel construction with 14 cubic inch capacity provides durable protection and ample space for wiring in standard control circuits. Business Impact: Enhances reliability, minimizes enclosure breaches, and supports compliant, long-life installations. Application: Ideal for non-hazardous locations in machine controls and automation cabinets. Feature: Gangable design with compact dimensions (2 in length, 2-3/4 in depth, 2.75 in width) enables scalable multi-gang configurations. Business Impact: Increases panel density, reduces footprint, and speeds wiring organization during retrofit or new-build projects. Application: Suitable for compact control panels and modular electrical enclosures. Feature: NM clamps and designated conduit/cable management simplify wiring methods. Business Impact: Shortens wiring time, reduces field errors, and improves overall site safety. Application: General purpose electrical wiring in industrial controls. Feature: Knockouts include side and bottom 1/2 in openings plus two cable knockouts, with end-knockouts for 2-cable routing. Business Impact: Flexible routing options support diverse field wiring scenarios and future expansion. Application: Quick adaptation to evolving control circuit layouts. Feature: Lightweight steel construction (0.7 lb) with NEC/CEC compliance and Ordinary/Non-Hazardous Location rating lowers handling effort and supports regulatory alignment. Business Impact: Lowers shipping costs, simplifies installation logistics, and reduces downtime. Application: Everyday use in automation equipment and panel houses.
Get a Quick Quote for a Eaton TP664
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP664?
Enquire Now
FAQs
For installation, select the gangable TP664 enclosure with 2 in depth and 2.75 in width to fit your panel footprint. Use NM clamps for non-metallic cable runs and utilize the side and bottom 1/2 in knockouts plus two cable knockouts to route conductors. Plan for future expansion by leaving space for additional boxes in multi-gang assemblies.
TP664 offers 14 cubic inches of internal capacity, accommodates NM clamps, and provides two cable knockouts along with side and bottom 1/2 inch knockouts. Its 2-3/4 inch depth and 2.75 inch width support compact control wiring, while its 0.7 lb weight aids handling during installation and servicing.
Yes. TP664 is classified for Ordinary/Non-Hazardous Locations and adheres to NEC/CEC standards. It is UL-listed for steel switch boxes, ensuring compliance with key electrical codes while supporting safe operation in typical factory environments.
TP664 aligns with NEC/CEC standards and is UL-certified for steel switch boxes. Its area classification supports ordinary locations, making it suitable for general industrial use. Access the official UL listings and Eaton documentation for the most current certification details and installation guidelines.
The TP664’s lightweight steel construction reduces handling effort and shipping costs, while its durable build minimizes replacement and maintenance needs. The gangable design enables scalable panel layouts, speeding installs and future upgrades, which translates to lower labor costs and shorter downtime in production environments.
