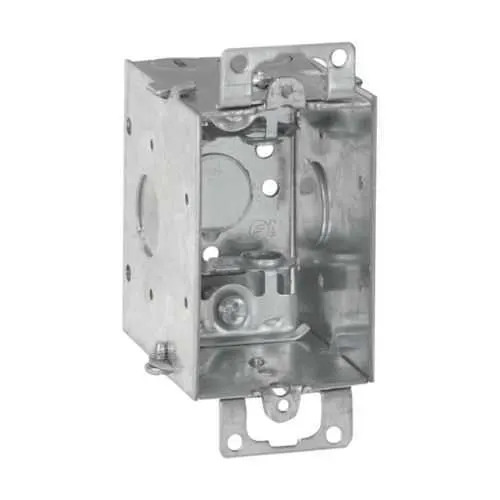

Eaton TP668 switch box - 14 cu in capacity NEC/CEC
Part Number: TP668
Quick Summary
The Eaton TP668 switch box provides rugged steel protection for electrical connections in industrial control panels and junction boxes. Engineers often face space constraints and misalignment when wiring in harsh environments, and this model addresses those challenges with compact 2 by 3 by 2.75 in dimensions and standard 1/2 in knockouts on the sides and bottom. It carries NEC/CEC compliance and is suitable for Ordinary/Non-Hazardous Locations, with Canadian certifications available for broader deployment. By pairing a gangable design with AC/MC clamps and 14 cubic inches of capacity, the TP668 delivers faster, safer installations and reduced field rework—supporting both small-scale panels and multi-gang configurations for scalable control systems.
Product Information
Extended Description
TP668 Eaton: Eaton Crouse-Hinds series Switch Box, (1) 1/2", 2, AC/MC clamps, 2-3/4", 2-cable, Steel, (1) 1/2", Ears, Gangable, 14.0 cubic inch capacity
Product Name
Eaton Crouse-Hinds series switch box
Catalog Number
TP668
UPC
786189106688
Product Length/Depth
2 in
Product Height
3 in
Product Width
2.75 in
Product Weight
0.68 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Depth
2-3/4"
Type
Gangable
Capacity
14 cubic in
Conduit/cable
AC/MC clamps
End Knockouts
2-cable
Side knockouts
(1) 1/2 in
Bottom Knockouts
(1) 1/2 in
Cable knockouts
2
Material
Steel
Special features
Ears
Crouse-Hinds series Steel Switch Boxes catalog page
Steel Switch Boxes Canadian certification
Steel Switch Boxes Canadian certification
Steel Outlet Boxes for Electrical Systems
Steel Outlet Boxes for Electrical Systems
Feature: Steel construction and 14 cu in capacity. Business Impact: Delivers robust physical protection for terminations and splices, reducing maintenance and warranty costs over time. Application: Control panels and junction boxes in demanding environments. Feature: Compact footprint (2 in depth x 3 in height x 2.75 in width). Business Impact: Enables dense panel layouts, freeing space for wiring bundles and future expansions. Application: Narrow enclosures and multi-gang installations. Feature: Side and bottom 1/2 in knockouts plus 2-cable end knockouts; AC/MC clamps. Business Impact: Flexible wiring options and quicker terminations, lowering labor time and ensuring reliable connections. Application: Field terminations with mixed conductor types. Feature: Gangable with ears; lightweight 0.68 lb. Business Impact: Simplifies modular installations and reduces handling effort on site. Application: Scalable assemblies in control rooms and equipment rooms. Feature: Certifications: NEC/CEC; Ordinary/Non-Hazardous Locations; Canadian certification options. Business Impact: Ensures regulatory compliance and enables cross-border deployment, minimizing compliance risk. Application: Industrial, commercial, and multi-site projects.
Get a Quick Quote for a Eaton TP668
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP668?
Enquire Now
FAQs
The TP668 is designed for straightforward installation in compact panels. It features gangable ears for multi-gang configurations, standard 1/2 in knockouts on the sides and bottom, and AC/MC clamps for reliable terminations. Its steel construction provides durable protection, while the lightweight 0.68 lb weight reduces handling strain during mounting and wiring, speeding up field work.
TP668 offers 14 cubic inches of internal capacity with dimensions of approximately 2 in deep, 3 in high, and 2.75 in wide. It weighs about 0.68 lb and accepts two 1/2 in side knockouts plus a 1/2 in bottom knockout, along with two end knockouts. It supports AC/MC clamps for secure conductor terminations and is built to NEC/CEC standards.
The TP668 is ideal for non-hazardous, ordinary locations such as control panels, junction boxes, and small distribution setups. Its gangable design supports scalable panel architectures, while the 14 cu in capacity accommodates typical control wiring. Installation efficiency and reliable protection make it well-suited for retrofit projects and new equipment housings alike.
TP668 complies with NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations. Canadian certification options are available, and the series aligns with Crouse-Hinds specifications for steel switch boxes. This reduces regulatory risk for cross-border deployments and helps ensure code-compliant installations in diverse facilities.
Using the TP668 can lower maintenance costs through durable steel construction that resists impacts and corrosion in typical environments. Its compact, light design simplifies installation and reduces labor time, while the standardized knockouts and clamps minimize rework. Over time, these factors translate to faster project completion and lower total cost of ownership in control panel applications.
