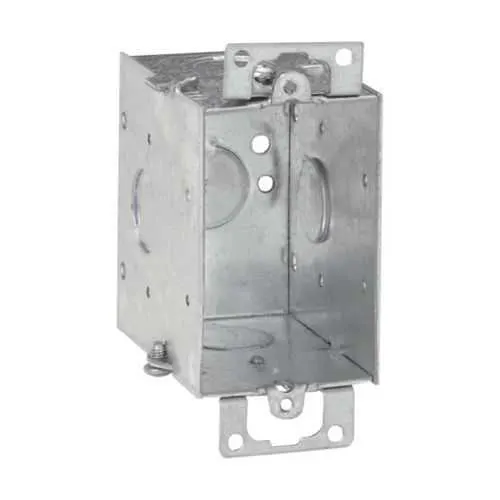

Eaton TP676 Switch Box - Steel, 14 cu in, NEC/CEC
Part Number: TP676
Quick Summary
Eaton TP676 switch box delivers a rugged steel enclosure for reliable terminations in industrial control panels. This design addresses the common pain point of fitting wiring access and knockouts into a compact footprint while meeting code requirements. The unit carries NEC/CEC compliance with UL certification references and is suitable for ordinary/non-hazardous locations, offering a dependable solution from a trusted brand. With gangable capability and ears for mounting, this box supports scalable installations and faster procurement, reducing design time and overall project risk.
Product Information
Extended Description
TP676 Eaton: Eaton Crouse-Hinds series Switch Box, (1) 1/2", Conduit (no clamps), 2-3/4", (1) 1/2", Steel, (1) 1/2", Ears, Gangable, 14.0 cubic inch capacity
Product Name
Eaton Crouse-Hinds series switch box
Catalog Number
TP676
UPC
786189106763
Product Length/Depth
2 in
Product Height
3 in
Product Width
2.75 in
Product Weight
0.61 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Depth
2-3/4"
Type
Gangable
Capacity
14 cubic in
Conduit/cable
Conduit (no clamps)
End Knockouts
(1) 1/2 in
Side knockouts
(1) 1/2 in
Bottom Knockouts
(1) 1/2 in
Material
Steel
Special features
Ears
Crouse-Hinds series Steel Switch Boxes catalog page
Steel Switch Boxes UL certification
Steel Switch Boxes UL certification
Eaton Specification Sheet - TP676
Eaton Specification Sheet - TP676
Feature → Business Impact → Application: Steel construction provides durable protection for critical terminations, reducing field rework and warranty costs while enabling long service life in harsh environments. Application: Use in control panels and equipment enclosures where reliable performance is essential. Feature → 14 cubic inch capacity → Efficient wiring space reduces panel size and simplifies conductor management, lowering panel costs and enabling clean, compliant terminations. Application: Ideal for compact junctions in non-hazardous locations requiring NEC/CEC compliance. Feature → Conduit (no clamps) with (1) 1/2 in end, side, and bottom knockouts → Faster, tool-less wiring integration with standard conduit runs, minimizing installation time and material costs. Application: Quick field wiring in new or retrofit projects. Feature → Gangable design with ears → Scales from single to multi-gang configurations without changing enclosure type, saving inventory and enabling modular assemblies. Application: Panel expansions and modular control architectures. Feature → Material: Steel → Robust mechanical protection and predictable thermal behavior, supporting high-reliability installations. Application: Industrial control cabinets subjected to mechanical contact and routine maintenance. Feature → Certifications: NEC/CEC compliance and UL references → Regulatory alignment reduces compliance risk and accelerates approvals in multi-region facilities. Application: Global deployments across US and Canada with confidence.
Get a Quick Quote for a Eaton TP676
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP676?
Enquire Now
FAQs
The TP676 features (1) 1/2 in end knockout, (1) 1/2 in side knockout, and (1) 1/2 in bottom knockout, plus ears for mounting in a gangable configuration. It accepts conduit without clamps, enabling quick field connections. Plan wiring routes to minimize bending and verify NEC/CEC adherence, then secure the enclosure to framing using appropriate hardware for a stable, code-compliant installation.
TP676 is designed for Ordinary/Non-Hazardous Locations with NEC/CEC standards compliance. It is UL-certified for steel switch boxes in the US and Canada, as reflected in Eaton’s certification resources. This combination provides regulatory alignment, safety assurance, and minimizes certification-related project delays across North American facilities.
TP676 is well-suited for control panels, junction boxes, and equipment enclosures in non-hazardous environments. With a 14 cubic inch capacity and 2-3/4 inch depth, it supports compact terminations while leaving room for wiring management. The gangable design and 1/2 inch knockouts enable flexible configurations in standard industrial installations.
Yes, TP676 is designed for compatibility with Eaton conduit systems and uses conduit without clamps. It provides end, side, and bottom knockouts, each 1/2 inch in diameter, plus ears for mounting. This combination simplifies wiring routes and lets you create modular, scalable solutions without changing enclosure types.
TP676 delivers durability and regulatory compliance, reducing field repairs and rework over the life of the installation. Its steel construction and UL/NEC/CEC compliance minimize downtime due to failures or nonconformance. The gangable design supports modular expansions, lowering future enclosure counts and procurement risk in growing control systems.
