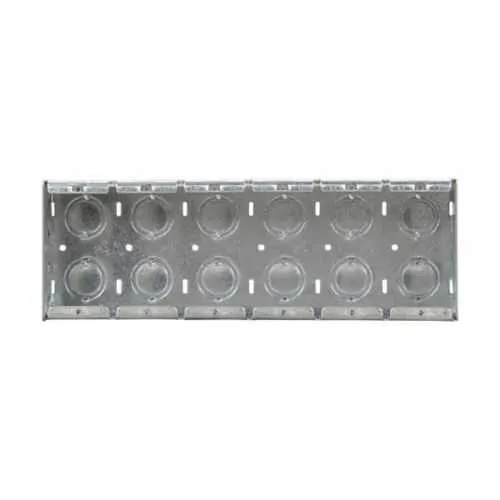

Eaton TP687 Masonry Box - Six-Gang, 93 cu in capacity
Part Number: TP687
Quick Summary
The Eaton TP687 masonry box provides rugged steel enclosure for six-gang electrical terminations in masonry walls. When project timelines hinge on reliable installation, limited knockouts or misaligned enclosures can derail progress. This Crouse-Hinds steel box carries UL certification for Steel Masonry Boxes and Canada listings, and it meets NEC/CEC standards, ensuring safe and code-compliant performance across jurisdictions. By combining durable steel construction with a clear knockout pattern and a generous 93 cu in capacity, TP687 supports faster wiring, easier maintenance, and predictable field outcomes. For engineers and procurement teams, it delivers consistent fit, documented compliance, and reduced total cost of ownership in commercial and industrial installations.
Product Information
Extended Description
TP687 Eaton: Eaton Crouse-Hinds series Masonry Box, (12) 1/2", (12) 3/4", 2-1/2", (6) 1/2", (6) 3/4", Steel, Six-gang, (2) 1/2", (2) 3/4", 93.0 cubic inch capacity
Product Name
Eaton Crouse-Hinds series masonry box
Catalog Number
TP687
UPC
786189106879
Product Length/Depth
11 in
Product Height
3.75 in
Product Width
3.75 in
Product Weight
2.3 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Depth
2-1/2"
Number of gangs
Six-gang
End Knockouts
(6) 1/2 in, (6) 3/4 in
Side knockouts
(2) 1/2 in, (2) 3/4 in
Bottom Knockouts
(12) 1/2 in, (12) 3/4 in
Capacity
93 cubic in
Material
Steel
Crouse-Hinds series Steel Masonry Boxes catalog page
Steel Masonry Boxes UL certification
Steel Masonry Boxes UL certification
Steel Outlet Boxes for Electrical Systems
Steel Outlet Boxes for Electrical Systems
Six-gang configuration optimizes space for multiple conduits, reducing panel footprint and enabling cleaner wiring in service entrances and equipment rooms. This translates to fewer enclosures on large projects and faster installation in tight wall cavities. The steel masonry box construction provides impact resistance and long-term durability, lowering replacement costs and maintenance needs in busy industrial environments. A generous 93 cubic inch capacity accommodates multi-wire assemblies, minimizing splices and simplifying cable management for better reliability and traceability. Knockout patterns—end, side, and bottom—offer flexible routing for 1/2 and 3/4 inch conduits, reducing on-site fabrication and fit issues. Compliance-focused design with NEC/CEC and UL certifications supports cross-border projects and procurement efficiency, while the 11 inch length and compact footprint suit standard masonry workflows. Weighing 2.3 lb, this enclosure balances rigidity with ease of handling during installation and retrofit projects.
Get a Quick Quote for a Eaton TP687
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP687?
Enquire Now
FAQs
The TP687 is designed for six-gang electrical terminations in masonry walls for ordinary/non-hazardous locations. It features six end knockouts, two side knockouts, and multiple bottom knockouts to accommodate common conduit sizes, aligning with NEC/CEC requirements and UL certifications for safe, code-compliant installations.
Key specs include a six-gang steel enclosure with 93 cubic inches of internal capacity, 11 in length, 3.75 in width, and 3.75 in height. Knockouts consist of six 1/2 in and six 3/4 in at the end, two 1/2 in and two 3/4 in on the sides, and 12 each of 1/2 in and 3/4 in at the bottom. Weight is approximately 2.3 lb.
Yes. The TP687 carries UL certification for Steel Masonry Boxes and NEC/CEC standards compliance. It is suitable for ordinary/non-hazardous locations and has Canada UL listings, supporting cross-border electrical installations.
Its six-gang configuration, generous 93 cu in capacity, and standardized knockout pattern reduce field modifications and wiring complexity. This translates to fewer enclosure assemblies, faster wiring runs, easier maintenance, and smoother procurement and installation workflows on commercial and industrial projects.
Documentation includes the Crouse-Hinds steel masonry boxes catalog page, UL certification reports (US and Canada), and steel outlet boxes spec guides in PDF formats, all of which support design verification, compliance checks, and quick reference during procurement.
