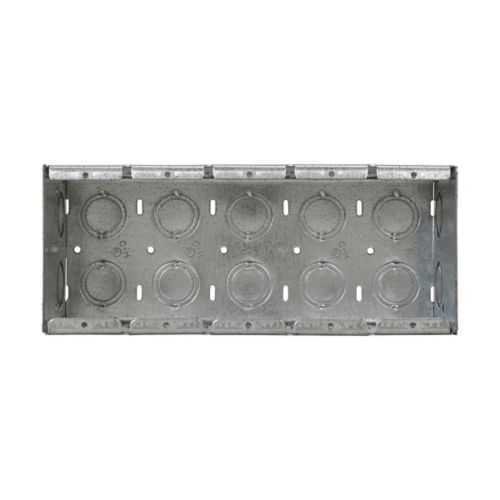

Eaton TP694 Masonry Box - Five-Gang Steel, NEC/CEC
Part Number: TP694
Quick Summary
The Eaton TP694 masonry box is a five-gang, steel enclosure for electrical outlets in masonry walls. It provides generous space for conductors while protecting terminations in rugged environments. Contractors often struggle with limited space and confusing knockout patterns, which can slow installs and inflate labor costs. This enclosure meets NEC/CEC requirements and offers UL Canadian certifications, reinforcing cross‑border compliance. By combining robust steel construction with a versatile knockout layout, the TP694 streamlines wiring, improves organization, and supports scalable enclosure strategies for industrial applications. This translates to faster, more reliable installations and fewer field modifications on high-traffic projects, delivering measurable business value through code-compliant, durable infrastructure.
Product Information
Extended Description
TP694 Eaton: Eaton Crouse-Hinds series Masonry Box, (10) 1/2", (10) 3/4", 3-1/2", (10) 1/2", (10) 3/4", Steel, Five-gang, (2) 1/2", (2) 3/4", 110.0 cubic inch capacity
Product Name
Eaton Crouse-Hinds series masonry box
Catalog Number
TP694
UPC
786189106947
Product Length/Depth
9.19 in
Product Height
3.75 in
Product Width
3.75 in
Product Weight
2.35 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Depth
3-1/2"
Number of gangs
Five-gang
End Knockouts
(10) 1/2 in, (10) 3/4 in
Side knockouts
(2) 1/2 in, (2) 3/4 in
Bottom Knockouts
(10) 1/2 in, (10) 3/4 in
Capacity
110 cubic in
Material
Steel
Crouse-Hinds series Steel Masonry Boxes catalog page
Steel Masonry Boxes Canadian certification
Steel Masonry Boxes Canadian certification
Steel Outlet Boxes for Electrical Systems
Steel Outlet Boxes for Electrical Systems
Feature: Five-gang, steel masonry box with 110 cubic inches of capacity. Business Impact: Enables more conductors and devices in a single enclosure, reducing the overall box count and field labor. Application: Ideal for complex junctions or multi‑device terminations in masonry walls within commercial and industrial facilities. Feature: Knockout layout includes (10) 1/2 in and (10) 3/4 in end knockouts, plus (2) 1/2 in and (2) 3/4 in side knockouts. Business Impact: Flexible routing for wires and conduits reduces on-site modification time and potential miswiring. Application: Supports diverse conduit configurations in rugged installations, speeding up project timelines. Feature: Dimensions and weight—9.19 in length, 3.75 in height, 3.75 in width, 2.35 lb weight, with 3-1/2 in depth. Business Impact: Easy handling and compatibility with standard mounting schemes lowers installation effort and risk. Application: Suits typical wall cavities and common conduit fittings in industrial spaces. Feature: Certifications and compliance—Ordinary/Non-Hazardous Locations; NEC/CEC. Business Impact: Ensures code-compliant installations across North American projects, reducing inspection holds and rework. Application: Essential for commercial builders and multi-site industrial rollouts requiring consistent enclosures. Feature: Cross‑region readiness—UL Canada certification documentation available. Business Impact: Simplifies procurement and validation for projects spanning the U.S. and Canada. Application: Helpful for international facilities and cross-border construction teams.
Get a Quick Quote for a Eaton TP694
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP694?
Enquire Now
FAQs
TP694 uses a five-gang steel masonry box design with versatile end and side knockouts (10 end knockouts at 1/2 and 3/4, plus 2 side knockouts at 1/2 and 3/4). This configuration supports common conduit types and mounting patterns in masonry walls, reducing field cutting and simplifying alignment with adjacent boxes or devices. The unit’s 110 cu in capacity ensures ample space for conductors and terminations, enabling clean, compliant installations in industrial facilities.
TP694 provides five-gang capacity, 110 cubic inches of internal volume, and a depth of 3-1/2 inches with overall dimensions of 9.19 inches long by 3.75 inches tall and 3.75 inches wide. It is manufactured in steel for durability and is intended for ordinary/non-hazardous locations under NEC/CEC standards. The box supports multiple devices and conductors while maintaining a compact footprint suitable for masonry installations.
TP694 is specified for Ordinary/Non-Hazardous Locations, aligning with NEC/CEC requirements for non-hazardous settings. For projects in hazardous environments, alternative enclosures with appropriate explosion-proof or weatherproof ratings would be required. Always verify the area classification and applicable codes before selection to ensure compliance and safety.
Yes, TP694 is NEC/CEC compliant and suitable for ordinary locations. UL Canadian certification documentation is available through Eaton’s data pages, supporting cross‑border acceptance for projects in Canada. This makes TP694 a solid choice for multi-site deployments across the U.S. and Canada, reducing the need for alternative enclosures or multiple SKUs.
TP694 offers installation advantages such as integrated five-gang capacity, versatile knockouts, and a compact steel body that simplify routing and termination. The durable construction reduces maintenance calls due to damaged enclosures, while NEC/CEC compliance minimizes inspection risk. Access to catalogs and datasheets from Eaton aids design accuracy and procurement efficiency, contributing to faster project completion and lower total cost of ownership.
