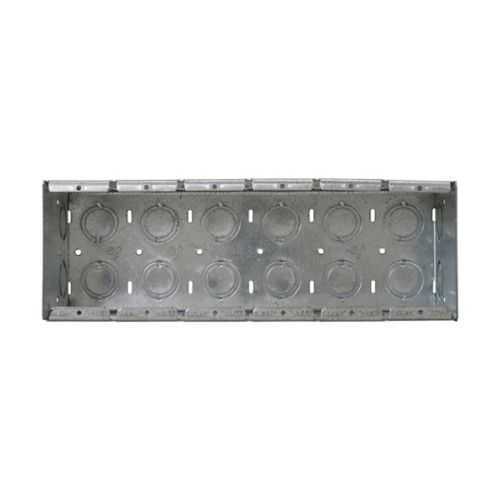

Eaton TP695 Masonry Box - Steel, 132 cu in, NEC/CEC
Part Number: TP695
Quick Summary
TP695 Masonry Box provides rugged steel housing for electrical junctions in masonry walls and other non-hazardous settings. Installers often face limited space, multiple conduit routes, and field modification challenges that slow projects. The enclosure supports NEC/CEC compliance, Ordinary/Non-Hazardous location classification, and Canada certification documentation, helping teams meet regulatory requirements with confidence. With 132 cu in of capacity, (12) 1/2 in and (12) 3/4 in end/bottom knockouts plus (2) 1/2 in and (2) 3/4 in side knockouts, it delivers flexible conduit management. This translates to faster wiring, fewer field cuts, and cleaner installations in commercial and industrial electrical infrastructure projects.
Product Information
Extended Description
TP695 Eaton: Eaton Crouse-Hinds series Masonry Box, (12) 1/2", (12) 3/4", 3-1/2", (12) 1/2", (12) 3/4", Steel, Six-gang, (2) 1/2", (2) 3/4", 132.0 cubic inch capacity
Product Name
Eaton Crouse-Hinds series masonry box
Catalog Number
TP695
UPC
786189106954
Product Length/Depth
11 in
Product Height
3.75 in
Product Width
3.75 in
Product Weight
2.87 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Depth
3-1/2"
Number of gangs
Six-gang
End Knockouts
(12) 1/2 in, (12) 3/4 in
Side knockouts
(2) 1/2 in, (2) 3/4 in
Bottom Knockouts
(12) 1/2 in, (12) 3/4 in
Capacity
132 cubic in
Material
Steel
Crouse-Hinds series Steel Masonry Boxes catalog page
Steel Masonry Boxes Canadian certification
Steel Masonry Boxes Canadian certification
Eaton Specification Sheet - TP695
Eaton Specification Sheet - TP695
Feature: Steel, six-gang design with 132 cubic inches of capacity. Business Impact: Supports multiple conductors and devices in a single enclosure, reducing the need for additional boxes and trimming installation time. Application: Ideal for complex junctions in masonry walls and surface-mounted installations. Feature: Comprehensive knockouts (end, bottom, and side patterns). Business Impact: Enables flexible conduit routing and field wiring without custom fabrication, lowering labor costs and risk of mistakes. Application: Conduit management for 12 x 1/2 in and 12 x 3/4 in end/bottom knockouts; 2 x 1/2 in and 2 x 3/4 in side knockouts. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous location classification. Business Impact: Streamlines regulatory approvals and project sign-off, reducing schedule risk. Application: Suitable for non-hazardous industrial and commercial environments. Feature: Compact dimensions and weight (11 in length, 3.75 in height, 3.75 in width, 2.87 lb). Business Impact: Easier handling, transport, and installation in constrained spaces. Application: Fits standard mounting footprints and conduit interfaces. Feature: Documentation and compatibility resources. Business Impact: Improves procurement speed and engineering validation with accessible catalogs and spec sheets. Application: Use Eaton-Crouse-Hinds catalog pages and TP695 specification documents during design review.
Get a Quick Quote for a Eaton TP695
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP695?
Enquire Now
FAQs
The TP695 is a steel six-gang masonry box intended for non-hazardous locations, ideal for electrical junctions in concrete or masonry walls. It provides extensive end, bottom, and side knockouts to route conductors and devices, with a total capacity of 132 cubic inches. Use it when you need a single rugged enclosure that supports multiple circuits and clean conduit management in tight spaces.
TP695 offers (12) 1/2 in and (12) 3/4 in knockouts on the ends and bottom, plus (2) 1/2 in and (2) 3/4 in knockouts on the sides. The overall internal capacity is 132 cubic inches, with a footprint of 11 in length by 3.75 in by 3.75 in. This combination supports flexible wiring layouts while maintaining compact form in masonry installations.
Yes. TP695 aligns with NEC/CEC standards and is classified for Ordinary/Non-Hazardous locations, simplifying regulatory approvals. Canadian certification documents are available, and additional UL Canada references exist in Eaton’s downloadable resources to support cross-border projects and engineering sign-off.
TP695 improves efficiency through a single rugged enclosure with extensive knockouts, reducing the need for field fabrication. Its 11 in length and 3.75 in footprint fit typical installation footprints, while the 132 cu in capacity accommodates multiple conductors and devices. Lightweight steel construction aids handling, speeding up wiring, mounting, and commissioning.
You can access the Eaton Crouse-Hinds TP695 specification sheets and catalog pages, as well as Canadian certifications, through Eaton’s product downloads. Look for the TP695 specification sheet and the Crouse-Hinds steel masonry boxes catalog page for engineering documentation and procurement references.
