Eaton TP7011 Weatherproof Outlet Box - 18 cu in, NEC/CEC
Part Number: TP7011
Quick Summary
Eaton TP7011 Weatherproof Outlet Box protects electrical terminations in outdoor industrial enclosures, enabling reliable connections in harsh environments. This single-gang, die-cast aluminum box provides 18 cu in of capacity with three 1/2 in conduit outlets, making compact installations straightforward. A common pain point is moisture and dust ingress that lead to corrosion and downtime; TP7011 minimizes that risk with a weatherproof design and rugged construction. It aligns with NEC/CEC standards and is suitable for ordinary, non-hazardous locations, supporting safe, code-compliant installs. For cross-border projects, its Canadian certification documentation and UL-listed references add confidence. When paired with compatible weatherproof covers and conduit fittings, you gain faster install times and longer lifecycle value.
Product Information
Extended Description

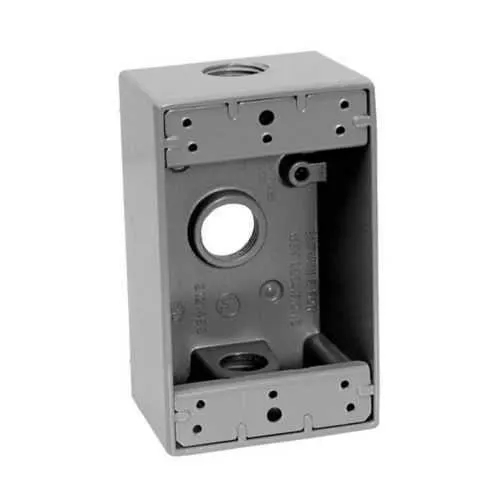

TP7011 Eaton: Eaton Crouse-Hinds series weatherproof outlet box, 18.0 cu in, White, 2" deep, Die cast aluminum, Single-gang, (3) 1/2" outlet holes, Rectangular, with lugs
Product Name
Eaton Crouse-Hinds series weatherproof outlet box
Catalog Number
TP7011
UPC
786189070118
Product Length/Depth
2.88 in
Product Height
4.56 in
Product Width
2 in
Product Weight
0.58 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Number of gangs
Single-gang
Depth
2"
Type
Rectangular, with lugs
Outlet holes
(3) 1/2 in
Capacity
18 cubic in
Color
White
Material
Die cast aluminum
Crouse-Hinds series Weatherproof portfolio catalog pages
Weatherproof Outlet Boxes and Covers Canadian certification
Weatherproof Outlet Boxes and Covers Canadian certification
TP7011 PDF drawing
TP7011 PDF drawing
Eaton Specification Sheet - TP7011
Feature: Weatherproof design with die-cast aluminum housing provides robust protection against moisture, dust, and impact. Business impact: longer service life, reduced maintenance, and fewer unplanned outages in outdoor enclosures. Application: ideal for outdoor equipment rooms, washdown zones, and exposed conduit runs where reliability is mission-critical. Feature: Single-gang, rectangular footprint with lugs enables simple mounting and secure fits within standard panels. Business impact: reduces installation time and engineering validation, lowering total cost of ownership. Application: wall-mounted control stations and compact terminal boxes in manufacturing lines. Feature: 18 cu in capacity with (3) 1/2 in outlet holes supports multiple wires and wiring configurations. Business impact: streamlines wiring schemes, supports faster commissioning. Application: compact control circuits and junctions near machinery. Feature: 2 inch depth, 4.56 inch height, 2 inch width offers a tight, space-efficient enclosure. Business impact: minimizes protrusion while meeting mounting constraints; Application: restricted interior spaces in outdoor facilities. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous location suitability provide regulatory alignment. Business impact: ensures code-compliant installations and reduced compliance risk. Application: general-purpose industrial panels and commercial installations. Feature: Documentation and CAD resources (drawings and spec sheets) accelerate design reviews. Business impact: speeds procurement, approvals, and field installation. Application: engineering workflows requiring precise enclosure data. These points collectively support compatibility with weatherproof covers and conduit fittings, resulting in lower lifecycle costs and predictable performance in rugged environments.
Get a Quick Quote for a Eaton TP7011
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP7011?
Enquire Now
FAQs
The TP7011 serves as a weatherproof enclosure for terminations and outlets in outdoor or exposed environments. It provides 18 cu in of space, three 1/2 inch outlet holes, and a single-gang footprint, enabling secure, code-compliant connections while protecting wiring from moisture, dust, and impact. Ideal for outdoor control panels and equipment cabinets in non-hazardous locations.
Key specs include 18 cubic inches of capacity, a single-gang rectangular form, die-cast aluminum construction, white color, 2 inch depth, dimensions of 2.88 in length, 4.56 in height, and 2 in width. It supports three 1/2 inch outlet holes and weighs about 0.58 lb, with NEC/CEC compliance for ordinary locations.
Yes. The TP7011 is designed for ordinary/non-hazardous locations and complies with NEC/CEC standards, making it suitable for outdoor control panels and other exterior installations. Its weatherproof die-cast aluminum construction helps prevent moisture ingress, reducing maintenance and downtime in non-hazardous settings.
The TP7011 adheres to NEC/CEC standards and is intended for ordinary/non-hazardous locations. Additional Canadian certification resources are available in the product literature, and UL documentation is provided to support cross-border compliance and procurement decisions for multinational projects.
Installation benefits include faster mounting due to its single-gang, lugged rectangular design, robust weatherproof protection from the die-cast aluminum housing, and reliable terminations with three 1/2 inch outlet holes. These features reduce maintenance intervals, minimize downtime, and enhance compliance, delivering a favorable return on investment for outdoor or exposed-environment electrical infrastructure.
