Eaton TP7018 Weatherproof Outlet Box - NEC/CEC
Part Number: TP7018
Quick Summary
The Eaton TP7018 Weatherproof Outlet Box is a rugged enclosure for outdoor and damp-location outlet installations. Installers often struggle with corrosion resistance, moisture ingress, and limited wiring space in compact enclosures. It complies with NEC/CEC and is rated for Ordinary/Non-Hazardous locations, with Canadian certification data available. The design also aligns with the Crouse-Hinds weatherproof portfolio, offering reliable performance with minimal field rework and faster project turnaround. In addition to robust protection, the TP7018 helps you meet cost and maintenance targets by combining durable aluminum construction with straightforward mounting.
Product Information
Extended Description

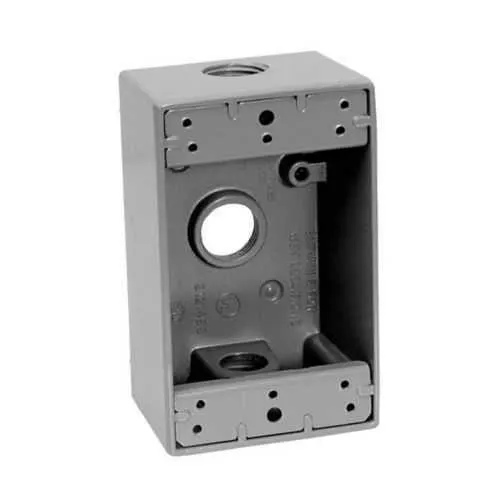

TP7018 Eaton: Eaton Crouse-Hinds series weatherproof outlet box, 18.0 cu in, Gray, 2" deep, Die cast aluminum, Single-gang, (3) 3/4" outlet holes, Rectangular, with lugs
Product Name
Eaton Crouse-Hinds series weatherproof outlet box
Catalog Number
TP7018
UPC
786189070187
Product Length/Depth
2.88 in
Product Height
4.56 in
Product Width
2 in
Product Weight
0.58 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Number of gangs
Single-gang
Depth
2"
Type
Rectangular, with lugs
Outlet holes
(3) 3/4 in
Capacity
18 cubic in
Color
Gray
Material
Die cast aluminum
Crouse-Hinds series Weatherproof portfolio catalog pages
Weatherproof Outlet Boxes and Covers Canadian certification
Weatherproof Outlet Boxes and Covers Canadian certification
TP7018 PDF drawing
TP7018 PDF drawing
Eaton Specification Sheet - TP7018
Die-cast aluminum body delivers superior durability in harsh environments, reducing corrosion risk and replacement costs for outdoor electrical fixtures. This rugged enclosure supports long service life in weather-exposed areas and simplifies maintenance planning for facilities managers. The 18 cubic inch capacity, 2 inch depth, and three 3/4 inch outlet holes enable flexible internal layouts, reducing the need for awkward wiring configurations and lowering installation time on site. Single-gang form factor with lugs provides secure mounting and compatibility with standard conduits, speeding up field assembly and ensuring a neat, compliant installation. NEC/CEC compliance and Ordinary/Non-Hazardous location rating give project teams confidence during inspections and cross-border deployments. The gray die-cast aluminum body resists corrosion while preserving visibility in busy industrial environments, supporting consistent performance across changing outdoor conditions. Designed for compatibility with standard 2 inch deep enclosures and common mounting patterns, TP7018 minimizes rework, improves predictability, and reduces maintenance cycles in outdoor lighting and control-panel applications.
Get a Quick Quote for a Eaton TP7018
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP7018?
Enquire Now
FAQs
TP7018 provides three 3/4 in outlet holes, designed for standard conduit connections. Its single-gang, rectangular form factor with lugs enables straightforward mounting on walls or enclosures, while maintaining a compact 2 in depth profile. This configuration supports typical control wiring and outlet integration in industrial settings without crowding internal space.
Yes. The TP7018 is a weatherproof, single-gang outlet box with an aluminum body designed for ordinary/non-hazardous locations. Its weatherproof construction helps resist moisture ingress and debris exposure, making it a reliable choice for outdoor lighting, switchgear housings, and other outdoor electrical installations.
TP7018 is specified to comply with NEC/CEC standards and is rated for Ordinary/Non-Hazardous locations. This makes it suitable for non-hazardous industrial and commercial exterior installations and facilitates regulatory compliance across North American projects.
The TP7018 features a single-gang footprint with lugs for secure mounting, aiding fast and predictable installations. Its 2 inch depth provides adequate internal wiring space, reducing the need for filler components. The gray die-cast aluminum body offers durability while maintaining manageable weight, which simplifies handling and installation for field technicians.
The durable aluminum construction and weatherproof design reduce corrosion-related failures and maintenance cycles in outdoor environments. Its compact size and straightforward mounting reduce installation time, lowering labor costs. With NEC/CEC compliance and suitability for ordinary locations, projects spend less on re-inspection and replacement, improving overall lifecycle cost efficiency.
