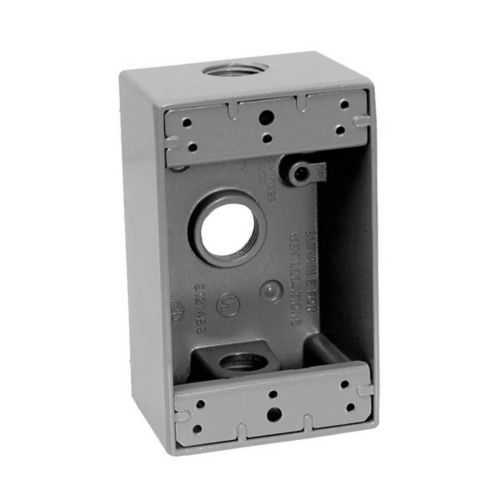

Eaton TP7020 Weatherproof Outlet Box - 3R
Part Number: TP7020
Quick Summary
The TP7020 weatherproof outlet box by Eaton safely protects electrical terminations in outdoor and harsh-industrial environments. This enclosure helps prevent moisture intrusion, corrosion, and dust ingress that commonly cause field failures and downtime. It carries a NEMA 3R rating and NEC/CEC compliance, suitable for ordinary/non-hazardous locations and harsh outdoor conditions alike. The bronze die-cast aluminum body delivers durable protection without excessive weight, while its single-gang, rectangular form and three 3/4" outlet holes simplify wiring layouts. With a 4.54 in length, 2.78 in width, and 2.14 in height footprint and a 0.54 lb weight, it offers a practical balance of space and installability for small control panels and outdoor circuits.
Product Information
Extended Description
TP7020 Eaton: Eaton Crouse-Hinds series weatherproof outlet box, 18.3 cu in capacity, Bronze, 2" deep, Die cast aluminum, Single-gang, (3) 3/4" outlet holes, Rectangular
Product Name
Eaton Crouse-Hinds series weatherproof outlet box
Catalog Number
TP7020
UPC
662276948204
Product Length/Depth
4.54 in
Product Height
2.14 in
Product Width
2.78 in
Product Weight
0.54 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Number of gangs
Single-gang
Depth
2"
Type
Rectangular
Outlet holes
(3) 3/4"
Capacity
18.3 cu in
Color
Bronze
Material
Die cast aluminum
Crouse-Hinds series Weatherproof portfolio catalog pages
Weatherproof Outlet Boxes and Covers Canadian certification
Weatherproof Outlet Boxes and Covers Canadian certification
TP7020 PDF drawing
TP7020 PDF drawing
Eaton Specification Sheet - TP7020
Feature: Weatherproof design and die-cast aluminum body delivers superior corrosion resistance and long-term durability. Business Impact: Reduces maintenance costs and unplanned downtime in outdoor and damp environments. Application: Outdoor controls, weather-exposed receptacles, and process equipment enclosures. Feature: 18.3 cu in capacity with (3) 3/4" outlet holes. Business Impact: Supports compact, yet versatile wiring layouts, improving field install efficiency and reducing rework. Application: Small control panels and field junctions in industrial facilities. Feature: Single-gang rectangular footprint with 2" depth. Business Impact: Easier mounting in tight spaces and streamlined wiring routes, lowering installation time and labor costs. Application: Compact enclosures for space-constrained equipment. Feature: NEMA 3R rating and NEC/CEC alignment. Business Impact: Compliance assurance for code-based projects and risk reduction in regulated environments. Application: Outdoor installations in ordinary/non-hazardous locations. Feature: Bronze color and lightweight construction (0.54 lb). Business Impact: Lower handling effort during installation and maintenance, with vibrant visibility in field deployments. Application: Wiring in outdoor zones and exposed control panels.
Get a Quick Quote for a Eaton TP7020
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP7020?
Enquire Now
FAQs
TP7020 is a single-gang, rectangular weatherproof box designed for straightforward mounting in standard outdoor enclosures. Its 4.54 in length, 2.78 in width, and 2 in depth provide a compact footprint that fits easily in tight spaces, while the three 3/4 in knockouts support common conduit configurations used in outdoor control panels.
Yes. The TP7020 carries a NEMA 3R rating, offering weather protection for outdoor terminations and damp locations. It is built from bronze die-cast aluminum for corrosion resistance, making it a reliable choice for non-hazardous outdoor applications under NEC/CEC standards.
The TP7020 provides 18.3 cu in of internal capacity with (3) 3/4 inch outlet holes. This configuration supports compact wiring needs while maintaining adequate space for safe terminations and orderly cable management in single-gang enclosures.
TP7020 conforms to NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations. This ensures code compliance for typical outdoor electrical installations and reduces risk during inspections and audits.
With its lightweight bronze die-cast aluminum body, compact single-gang form, and clear outdoor suitability, TP7020 simplifies mounting and wiring, reduces field errors, and lowers maintenance needs over time due to its robust weatherproof construction and corrosion resistance.
