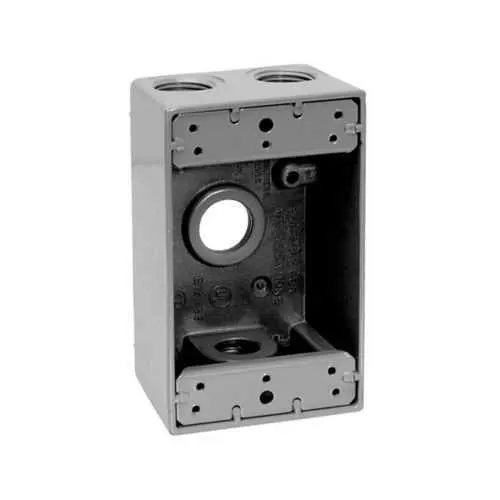

Eaton TP7026 Outlet Box - Weatherproof NEC/CEC
Part Number: TP7026
Quick Summary
Eaton TP7026 Outlet Box provides weatherproof electrical enclosure for outdoor control and power connections. In outdoor or harsh environments, unreliable sealing leads to moisture ingress, corrosion, and costly downtime. This enclosure meets NEC/CEC standards and is suitable for Ordinary/Non-Hazardous Locations, helping teams stay compliant while protecting critical terminations. The die cast aluminum construction delivers rugged durability without excessive weight, while its 18 cubic inch capacity supports tidy, scalable wiring. With a compact single-gang footprint and four 1/2 inch outlet holes, TP7026 integrates smoothly with standard weatherproof covers and field-installed outlets, streamlining procurement, installation, and service for OEMs and maintenance teams alike.
Product Information
Extended Description
TP7026 Eaton: Eaton Crouse-Hinds series weatherproof outlet box, 18.0 cu in, Gray, 2" deep, Die cast aluminum, Single-gang, (4) 1/2" outlet holes, Rectangular, with lugs
Product Name
Eaton Crouse-Hinds series weatherproof outlet box
Catalog Number
TP7026
UPC
786189070262
Product Length/Depth
2.88 in
Product Height
4.56 in
Product Width
2 in
Product Weight
0.58 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Number of gangs
Single-gang
Depth
2"
Type
Rectangular, with lugs
Outlet holes
(4) 1/2 in
Capacity
18 cubic in
Color
Gray
Material
Die cast aluminum
Crouse-Hinds series Weatherproof portfolio catalog pages
Weatherproof Outlet Boxes and Covers Canadian certification
Weatherproof Outlet Boxes and Covers Canadian certification
TP7026 SLDDRW drawing
TP7026 SLDDRW drawing
Eaton Specification Sheet - TP7026
Feature: Die cast aluminum construction delivers rugged durability and corrosion resistance. Business impact: Extends enclosure life in outdoor and demanding environments while reducing maintenance cycles and repair costs. Application: Outdoor equipment housings, control panels, and field junctions exposed to weather. Feature: 18 cubic inches of internal capacity with 2 inch depth. Business impact: Provides ample space for tidy terminations, minimizing field rework and enabling scalable wiring for future upgrades. Application: Small to mid-size control circuits in outdoor installations. Feature: Four 1/2 inch outlet holes and a rectangular enclosure with lugs. Business impact: Flexible wiring entry points and secure mounting; supports reliable terminations with a compact form factor. Application: Field wiring for weatherproof electrical connections in harsh environments. Feature: Single-gang footprint. Business impact: Space-efficient design that fits tight panels and aligns with standard covers, reducing enclosure footprint without compromising capacity. Application: OEM equipment enclosures and space-constrained control cabinets. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous Location certification. Business impact: Regulatory adherence and safer installations in non-hazardous outdoor settings, reducing compliance risk. Application: Commercial and light-industrial outdoor sites requiring code-compliant solutions. Feature: Compatibility with weatherproof covers and lugs. Business impact: Simplifies procurement and maintenance, enabling rapid field servicing and component upgrades. Application: Retrofit projects and ongoing service across outdoor automation installations.
Get a Quick Quote for a Eaton TP7026
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP7026?
Enquire Now
FAQs
To install TP7026, mount the single-gang enclosure using its lugs in a suitable outdoor panel or junction area. The box provides 18 cu in of space and four 1/2 in outlet holes for wiring, with a 2 in depth to accommodate terminations. Use appropriate weatherproof covers and gaskets to ensure a sealed, code-compliant connection in non-hazardous locations.
TP7026 is designed for Ordinary/Non-Hazardous Locations and complies with NEC/CEC standards. This makes it appropriate for non-hazardous outdoor environments such as commercial exterior equipment housings, remote control stations, and field wiring where weatherproof protection is essential.
TP7026 dimensions are 2.88 inches in depth, 4.56 inches in height, and 2 inches in width, with a weight of approximately 0.58 pounds. The enclosure accommodates 18 cubic inches of internal volume and features four 1/2 inch outlet holes in a single-gang, rectangular form with lugs.
TP7026 provides four 1/2 inch outlet holes for wiring terminations, offering flexible entry points for field conduits. Its 18 cu in capacity supports tidy terminations, while the rectangular, lug-enabled design allows secure mounting in outdoor installations without compromising weatherproof integrity.
Ideal for outdoor equipment housings, control panels, and field wiring in non-hazardous environments, TP7026 combines a durable die cast aluminum body with a weatherproof design. It is well-suited for OEM equipment enclosures and maintenance applications where code compliance, reliability, and compact form factor are critical.
