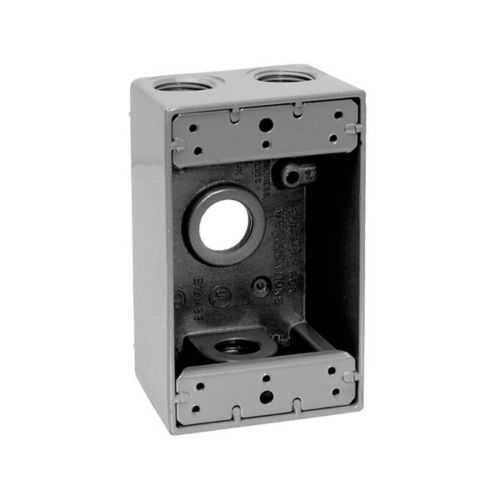

Eaton TP7035 Weatherproof Outlet Box - NEMA 3R
Part Number: TP7035
Quick Summary
The Eaton TP7035 weatherproof outlet box protects electrical terminations in rugged outdoor and harsh-industrial environments. When field enclosures are exposed to moisture, debris, or vibration, misalignment and water ingress drive maintenance costs and downtime. This unit carries NEC/CEC compliance, a NEMA 3R rating, and an Ordinary/Non-Hazardous Location classification, ensuring reliable operation across diverse sites. Its rectangular, single-gang form and 18.3 cu in capacity support straightforward mounting and versatile wiring, while die-cast aluminum construction offers durability and heat dissipation. With white visibility and standard conduit connections, it provides a durable weatherproof enclosure that reduces service calls and supports quick field servicing.
Product Information
Extended Description
TP7035 Eaton: Eaton Crouse-Hinds series weatherproof outlet box, 18.3 cu in capacity, White, 2" deep, Die cast aluminum, Single-gang, (4) 3/4" outlet holes, Rectangular
Product Name
Eaton Crouse-Hinds series weatherproof outlet box
Catalog Number
TP7035
UPC
662276948235
Product Length/Depth
4.54 in
Product Height
2.14 in
Product Width
2.78 in
Product Weight
0.54 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Number of gangs
Single-gang
Depth
2"
Type
Rectangular
Outlet holes
(4) 3/4"
Capacity
18.3 cu in
Color
White
Material
Die cast aluminum
Crouse-Hinds series Weatherproof portfolio catalog pages
Weatherproof Outlet Boxes and Covers Canadian certification
Weatherproof Outlet Boxes and Covers Canadian certification
TP7035 SLDDRW drawing
TP7035 SLDDRW drawing
Eaton Specification Sheet - TP7035
Feature: Die cast aluminum construction and weatherproof rating. Benefit: Delivers durable, corrosion-resistant housing that withstands moisture and harsh conditions, lowering replacement costs. Application: Ideal for outdoor control panels and equipment housings that demand long-term reliability in challenging environments. Long-tail keywords: weatherproof enclosure, die cast aluminum enclosure, outdoor electrical box. Feature: 18.3 cu in capacity with (4) 3/4" outlet holes. Benefit: Offers ample space for wiring terminations and devices while minimizing field modifications. Application: Suitable for single-gang wiring provisions in compact enclosures. Long-tail keywords: 18.3 cu in capacity, outlet holes 3/4 inch. Feature: Dimensions 4.54 in L Ă— 2.14 in H Ă— 2.78 in W and weight 0.54 lb. Benefit: Compact, easy to fit within standard backboxes and on equipment surfaces, reducing installation footprint. Application: Streamlines mounting in constrained electrical rooms and on outdoor fixtures. Long-tail keywords: rectangular weatherproof box, single-gang enclosure, compact weatherproof box. Feature: NEMA 3R rating and NEC/CEC compliance. Benefit: Ensures reliable weather protection and code compliance for non-hazardous locations, reducing inspection issues. Application: Outdoor installations and maintenance-ready control panels. Long-tail keywords: NEMA 3R, NEC/CEC compliant, ordinary locations. Feature: Color and material finish. Benefit: White color enhances visibility for labeling and diagnostics; aluminum construction aids heat dissipation. Application: General-purpose wiring boxes in service panels and outdoor equipment. Long-tail keywords: weatherproof rectangular box, white enclosure.
Get a Quick Quote for a Eaton TP7035
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP7035?
Enquire Now
FAQs
TP7035 is a single-gang rectangular weatherproof outlet box designed for ordinary/non-hazardous locations, featuring four 3/4" outlet holes and a 4.54" L depth to accommodate common field wiring in outdoor panels and control stations.
The TP7035 carries NEC/CEC standards compliance and a NEMA 3R rating, delivering weather-resistant protection for outdoor and mist-prone environments while maintaining code-conforming wiring termination practices.
Yes. The unit is classified for Ordinary/Non-Hazardous Locations and is designed to withstand weather exposure, making it appropriate for exterior equipment, outdoor panels, and similar non-hazardous settings.
TP7035 measures 4.54 in in length, 2.14 in in height, and 2.78 in in width, with a weight of 0.54 lb, enabling compact mounting in standard backboxes and on equipment surfaces.
Technical resources are available from Eaton, including the TP7035 specification sheet and CAD drawings, which cover installation details, dimensions, and mounting guidance for outdoor weatherproof use.
