Eaton TP7058 Weatherproof Outlet Box - NEC/CEC
Part Number: TP7058
Quick Summary
Eaton TP7058 weatherproof outlet box protects outdoor electrical connections in industrial enclosures. In outdoor or harsh indoor settings, moisture, dust, and cramped wiring spaces challenge safety and uptime. This Eaton TP7058 meets NEC/CEC standards and Ordinary/Non-Hazardous locations, backed by die-cast aluminum durability. Its side-entry, single-gang footprint with five 1/2 in outlet holes and 18 cu in capacity delivers flexible wiring, easier installations, and long-term reliability. Designed for field applications, it simplifies installations in control panels, junction areas, and outdoor equipment enclosures. By meeting industry standards and using durable materials, it reduces maintenance cycles and minimizes retrofit costs. This combination supports safer, compliant, and budget-friendly outdoor electrical installations.
Product Information
Extended Description

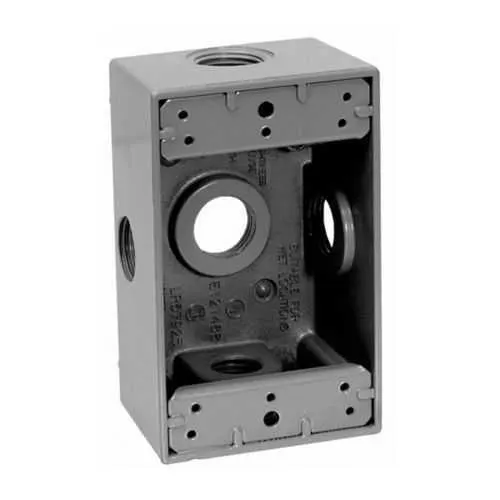

TP7058 Eaton: Eaton Crouse-Hinds series weatherproof outlet box, 18.0 cu in, Gray, 2" deep, Die cast aluminum, Single-gang, (5) 1/2" outlet holes, Rectangular, side entry, with lugs
Product Name
Eaton Crouse-Hinds series weatherproof outlet box
Catalog Number
TP7058
UPC
786189070583
Product Length/Depth
2.88 in
Product Height
4.56 in
Product Width
2 in
Product Weight
0.58 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Number of gangs
Single-gang
Depth
2"
Type
Rectangular, side entry, with lugs
Outlet holes
(5) 1/2 in
Capacity
18 cubic in
Color
Gray
Material
Die cast aluminum
Crouse-Hinds series Weatherproof portfolio catalog pages
Weatherproof Outlet Boxes and Covers Canadian certification
Weatherproof Outlet Boxes and Covers Canadian certification
TP7058 SLDDRW drawing
TP7058 SLDDRW drawing
Eaton Specification Sheet - TP7058
Die-cast aluminum construction delivers rugged weather resistance, protecting delicate terminations from moisture, corrosion, and impact. This translates into fewer field replacements and lower maintenance costs in outdoor industrial environments. In practice, such durability supports enclosure integrity for control panels, pump stations, and exterior light circuits. 18 cubic inch capacity supports multiple conductors and devices, reducing the need for additional junction boxes. This translates to faster wiring and lower material costs for installations in outdoor enclosures. Side-entry, 2" depth with lugs allows front or back conduit entry and secure mounting, which reduces installation time and simplifies wiring routes in tight spaces near equipment. Five 1/2 inch outlet holes provide flexible termination options for multiple devices while preserving gasket integrity. The single-gang rectangular profile keeps standard mounting footprints and, with lugs, enables secure wall or panel mounting for easy retrofits. NEC/CEC compliance and Ordinary/Non-Hazardous area classification ensure regulatory alignment, aiding audits and safety programs. The lightweight 0.58 lb gray die-cast aluminum body combines easy handling with durability, supporting efficient transport and site logistics for outdoor projects.
Get a Quick Quote for a Eaton TP7058
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP7058?
Enquire Now
FAQs
The TP7058 is ideal for outdoor electrical connections and exterior enclosures in industrial settings. Its weatherproof design suits control panels, outdoor receptacle assemblies, and junctions where moisture, dust, and exposure to the elements are factors. The side-entry configuration with lugs simplifies mounting on walls or equipment in non-hazardous locations, helping technicians complete installations quickly and safely.
Key specs include a 18 cubic inch capacity, 2 inch depth, 4.56 inch height, 2 inch width, and a weight of approximately 0.58 lb. It is made from die-cast aluminum and is gray in color. The enclosure is single-gang, rectangular, side-entry with five 1/2 inch outlet holes, suitable for ordinary/non-hazardous locations and NEC/CEC compliance.
Yes. The TP7058 is designed for exterior use and is classified for Ordinary/Non-Hazardous Locations. It carries NEC/CEC standards, ensuring regulatory compliance for outdoor control panels, lighting, and general-purpose outdoor wiring in non-hazardous environments.
The TP7058 carries NEC/CEC standards and an Ordinary/Non-Hazardous Locations area classification, aligning with common industrial and facility safety programs. The catalog also lists a UL Canada certification pathway for related components, providing broader regulatory coverage for cross-border installations.
The die-cast aluminum construction reduces corrosion and damage from weather, lowering maintenance needs. The side-entry design and lugs simplify conduit routing and mounting, speeding up install times. With five 1/2 inch outlet holes, wiring options are flexible, reducing the need for additional enclosures and minimizing retrofit costs.
