Eaton TP7066 weatherproof box - NEC/CEC
Part Number: TP7066
Quick Summary
The Eaton TP7066 weatherproof box is a durable outdoor outlet enclosure designed for rugged industrial environments. For engineers, moisture ingress, corrosion, and downtime are persistent pain points when installing in exposed locations. It complies with NEC/CEC standards and is suitable for Ordinary/Non-Hazardous locations, with UL Canada certification support. Beyond protection, the 18 cu in capacity, 2" depth, and side-entry design streamline installation and maintenance. With die-cast aluminum and five 3/4-inch outlet holes, it provides durable mounting options. The single-gang, rectangular form is compatible with standard knocks and lugs for quick, secure installation. This combination reduces maintenance costs and extends service life in outdoor enclosures.
Product Information
Extended Description

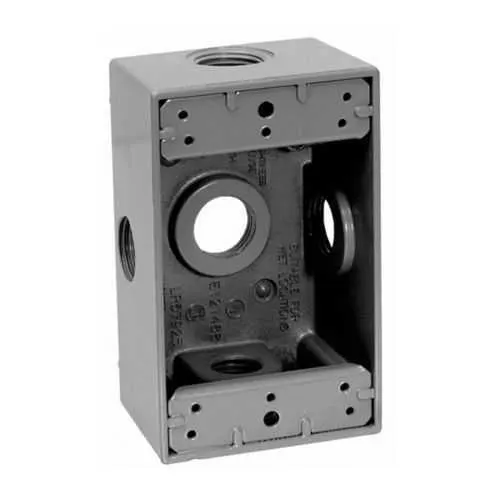

TP7066 Eaton: Eaton Crouse-Hinds series weatherproof outlet box, 18.0 cu in, Gray, 2" deep, Die cast aluminum, Single-gang, (5) 3/4" outlet holes, Rectangular, side entry, with lugs
Product Name
Eaton Crouse-Hinds series weatherproof outlet box
Catalog Number
TP7066
UPC
786189070668
Product Length/Depth
2.88 in
Product Height
4.56 in
Product Width
2 in
Product Weight
0.58 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Number of gangs
Single-gang
Depth
2"
Type
Rectangular, side entry, with lugs
Outlet holes
(5) 3/4 in
Capacity
18 cubic in
Color
Gray
Material
Die cast aluminum
Crouse-Hinds series Weatherproof portfolio catalog pages
Weatherproof Outlet Boxes and Covers Canadian certification
Weatherproof Outlet Boxes and Covers Canadian certification
TP7066 SLDDRW drawing
TP7066 SLDDRW drawing
Eaton Specification Sheet - TP7066
Capacity and layout of 18 cubic inches provide room for typical single-gang wiring and receptacle configurations within a single weatherproof enclosure, reducing the need for extra boxes and minimizing field modifications. This translates to faster installations, lower material waste, and improved project predictability in outdoor electrical infrastructure. Die-cast aluminum construction delivers robust corrosion resistance and weather durability, extending service life in damp or harsh environments common to outdoor control panels and equipment housings. The single-gang rectangular design with side-entry knockouts and lugs supports straightforward mounting and wiring—even in tight spaces—ensuring reliable terminations and secure support for devices. Five 3/4-inch outlet holes enable flexible wiring patterns for multiple conductors, reducing the need for additional fittings and streamlining conduit planning. The enclosure’s dimensions, including 2" depth, 4.56" height, and 2" width, align with standard installation footprints and simplify integration into existing layouts. Compliance with NEC/CEC standards and UL Canada certification provide confidence for regulatory audits and warranty durability while ensuring compatibility with common industrial controls and field devices.
Get a Quick Quote for a Eaton TP7066
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP7066?
Enquire Now
FAQs
Begin by selecting a suitable surface and ensuring the interior is clean and dry. Install the box with the included lugs, route cables through the side-entry knockouts, and terminate conductors to the receptacle or device. Seal entry points to maintain weatherproof integrity and attach the cover to complete the enclosure.
Yes. The TP7066 is designed for Ordinary/Non-Hazardous locations and complies with NEC/CEC standards, making it suitable for outdoor control circuits and weatherproof outlet applications in non-hazardous settings.
The enclosure provides 18 cubic inches of interior capacity, with a depth of 2 inches, a height of 4.56 inches, and a width of 2 inches, supporting typical single-gang wiring configurations.
The TP7066 aligns with NEC/CEC standards and has UL Canada certification support for weatherproof outlet boxes, providing regulatory assurance for cross-border installations.
Common uses include outdoor control panels, weatherproof outlets, and signal or power distribution in damp or exposed locations, where a rugged, single-gang, side-entry enclosure is beneficial.
