Eaton TP7074 Weatherproof Outlet Box - NEC/CEC
Part Number: TP7074
Quick Summary
Eaton TP7074 Weatherproof Outlet Box provides rugged weatherproof protection for 24 cubic inches of outlet capacity in outdoor or harsh indoor environments. This enclosure tackles moisture ingress and field wiring challenges by delivering a compact single-gang footprint with die-cast aluminum construction and integrated lugs for secure mounting. It aligns with NEC/CEC standards and UL-listed for Canada, and is suitable for ordinary/non-hazardous locations, giving installers confidence in regulatory compliance. For procurement teams, the combination of durable materials, standardized dimensions, and listed certifications translates into faster sourcing, predictable installation times, and lower lifecycle costs.
Product Information
Extended Description

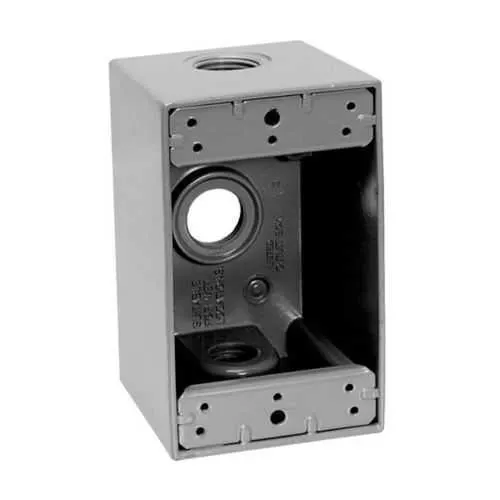

TP7074 Eaton: Eaton Crouse-Hinds series weatherproof outlet box, 24.0 cu in, Gray, 2-5/8" deep, Die cast aluminum, Single-gang, (3) 1/2" outlet holes, Rectangular, with lugs
Product Name
Eaton Crouse-Hinds series weatherproof outlet box
Catalog Number
TP7074
UPC
786189070743
Product Length/Depth
2.88 in
Product Height
4.25 in
Product Width
2.66 in
Product Weight
0.8 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Number of gangs
Single-gang
Depth
2-5/8"
Type
Rectangular, with lugs
Outlet holes
(3) 1/2 in
Capacity
24 cubic in
Color
Gray
Material
Die cast aluminum
Crouse-Hinds series Weatherproof portfolio catalog pages
Weatherproof Outlet Boxes and Covers Canadian certification
Weatherproof Outlet Boxes and Covers Canadian certification
TP7074 PDF drawing
TP7074 PDF drawing
Eaton Specification Sheet - TP7074
Die-cast aluminum construction delivers rugged weather resistance and longevity, improving corrosion resistance and reducing maintenance costs in exposed outdoor locations for a weatherproof outlet box. The 24 cubic inch capacity with three 1/2 inch outlet holes supports multiple connections in a compact single-gang footprint, enabling streamlined wiring and efficient panel layouts. A single-gang rectangular shape with integrated lugs simplifies mounting and field wiring, reducing installation time and ensuring secure, code-compliant enclosures. Compliance with NEC/CEC standards and UL certification for Canada minimizes regulatory risk and inspection delays across North American projects. With dimensions of 4.25 in height, 2.88 in length (depth), and 2.66 in width, plus a 0.8 lb weight, planners can optimize space and inventory. The gray, die-cast aluminum design aligns with the Crouse-Hinds weatherproof series, supporting scalable installations across facilities.
Get a Quick Quote for a Eaton TP7074
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP7074?
Enquire Now
FAQs
TP7074 is a single-gang, rectangular weatherproof outlet box with integrated lugs and three 1/2 inch outlet holes. It supports standard single-gang mounting in ordinary/non-hazardous locations and uses a compact footprint of 4.25 in height, 2.88 in depth, and 2.66 in width. For compatibility, plan for standard conduit fittings through exterior openings and ensure alignment with NEC/CEC requirements.
TP7074 provides 24 cubic inches of interior space, three 1/2 inch outlet holes, die-cast aluminum construction in gray, and a depth of 2-5/8 inches with overall dimensions of 2.88 by 4.25 by 2.66 inches. It weighs about 0.8 pounds and is designed for ordinary/non-hazardous locations with NEC/CEC compliance and UL Canada listing.
Yes. TP7074 is designed as a weatherproof outlet box intended for outdoor and harsh indoor environments. Its die-cast aluminum body and weatherproof configuration support rugged service in ordinary/non-hazardous locations, with NEC/CEC compliance and UL listing for Canada, delivering reliable protection against moisture ingress in exposed areas.
TP7074 complies with NEC/CEC standards and is UL-listed for Canada, reflecting coordination with North American electrical codes. It is part of Eaton's Crouse-Hinds weatherproof series, offering a validated level of regulatory alignment for outdoor and industrial installations in ordinary/non-hazardous locations.
Available resources include the Crouse-Hinds weatherproof catalog pages, the TP7074 PDF drawing, a STEP/SLDDRW CAD file, and the Eaton specification sheet. These assets support accurate installation planning, standardization across projects, and quick reference for dimensions, mounting, and compatibility during procurement.
