Eaton TP7075 Weatherproof Outlet Box - NEMA 3R
Part Number: TP7075
Quick Summary
TP7075 weatherproof outlet box is designed to protect outdoor electrical connections in harsh environments while maintaining access for service. This enclosure addresses common field challenges such as moisture ingress, corrosion, and failure under harsh weather conditions. The unit carries a NEMA 3R rating and NEC/CEC compliance to support reliable, code-ready installations in ordinary locations. With its die cast aluminum construction and a 25.5 cu in capacity, it delivers durability and space for essential wiring and outlets. By selecting this enclosure, engineers and procurement teams gain long-term reliability, streamlined maintenance, and fewer field reseals or replacements in non-hazardous settings.
Product Information
Extended Description

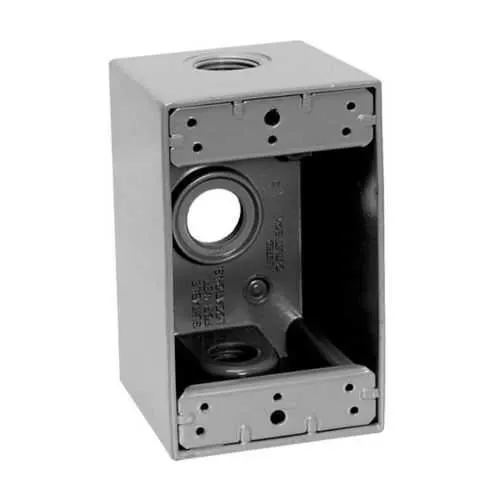

TP7075 Eaton: Eaton Crouse-Hinds series weatherproof outlet box, 25.5 cu in capacity, White, 2-5/8" deep, Die cast aluminum, Single-gang, (3) 1/2" outlet holes, Rectangular
Product Name
Eaton Crouse-Hinds series weatherproof outlet box
Catalog Number
TP7075
UPC
662276948266
Product Length/Depth
4.54 in
Product Height
2.8 in
Product Width
2.78 in
Product Weight
0.64 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Number of gangs
Single-gang
Depth
2-5/8"
Type
Rectangular
Outlet holes
(3) 1/2"
Capacity
25.5 cu in
Color
White
Material
Die cast aluminum
Crouse-Hinds series Weatherproof portfolio catalog pages
Weatherproof Outlet Boxes and Covers UL certification
Weatherproof Outlet Boxes and Covers UL certification
TP7075 PDF drawing
TP7075 PDF drawing
Eaton Specification Sheet - TP7075
Feature → Business Impact → Application: Die cast aluminum construction delivers robust corrosion resistance, reducing enclosure degradation in exposed locations and extending service life in outdoor wiring applications. This translates to lower maintenance costs and fewer replacements on long-term projects, especially in industrial facilities with harsh weather. Application: Ideal for outdoor outlet wiring in power distribution cabinets and wall-mounted installations where weather sealing is essential. Feature → Business Impact → Application: 25.5 cu in capacity supports three 1/2" outlet entries and space for inline terminations, enabling compliant splicing and device mounting without overcrowding. This improves installation efficiency and reduces labor time during panel fills and terminations in outdoor environments. Application: Useful for weatherproof outlets in parking structures, machine outdoor controls, and outdoor lighting circuits. Feature → Business Impact → Application: Rectangular single-gang configuration simplifies retrofit when upgrading from older, bulkier housings, enabling faster field replacements and compatibility with standard box rings and covers. Application: Service upgrades in commercial buildings and outdoor process areas where space is constrained. Feature → Business Impact → Application: White finish and standardized mounting depth of 2-5/8" align with common installation practices, minimizing misfit risk and ensuring consistent fit with Crouse-Hinds weatherproof accessories. Application: Quick, predictable installs in utility rooms, exterior walls, and control panels. Feature → Business Impact → Application: NEC/CEC compliance and Ordinary/Non-Hazardous Location rating provide regulatory confidence, reducing approval time and rework for non-hazardous outdoor enclosures. Application: Projects requiring code-compliant weatherproof outlet boxes for general building exteriors, light industrial, and campus infrastructure. Feature → Business Impact → Application: UL and UL Canada certifications available via downloadable documents support rigorous qualification processes, helping procurement justify specification across multinational sites. Application: Global deployments requiring validated weatherproof enclosures for US and Canadian markets.
Get a Quick Quote for a Eaton TP7075
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP7075?
Enquire Now
FAQs
The TP7075 is designed for outdoor electrical connections in ordinary/non-hazardous locations. Its 25.5 cu in capacity, rectangular single-gang form, and three 1/2" outlet holes support multiple conduits and outlets while maintaining weatherproof integrity. It is ideal for exterior walls, parking areas, and outdoor machinery control stations where reliable enclosure protection is required.
Yes. The TP7075 follows NEC/CEC standards and carries a NEMA 3R rating for weather resistance. It is documented with UL certification references for both the United States and Canada, ensuring regulatory compliance across multinational projects and simplifying procurement for global sites.
The TP7075 is a single-gang, rectangular box with a 2-5/8" depth and three 1/2" outlet holes. Its die cast aluminum body provides rugged support, and compatibility with standard weatherproof covers simplifies retrofits. Consider wall surface quality, seal integrity at mounting points, and appropriate gaskets to preserve IP/3R protection during service.
Certification data includes UL listings for weatherproof outlet boxes and covers (US and Canada) and NEC/CEC compliance. The unit aligns with Ordinary/Non-Hazardous Location classifications and is supported by drawings and datasheets accessible via Eaton’s portal and UL references, aiding qualification and audit readiness.
Adopting the TP7075 reduces maintenance and field failures through durable die cast aluminum construction and proven weatherproof performance, lowering lifecycle costs. Its standard dimensions and capacity enable faster installation, easier splicing, and reliable compliance for outdoor power distribution across manufacturing floors, campuses, and outdoor equipment stations.
