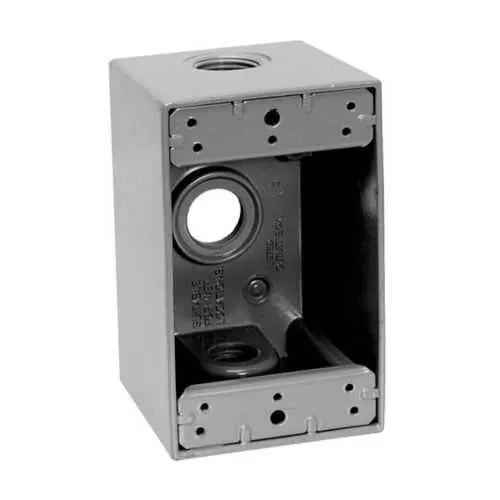

Eaton TP7076 Weatherproof Outlet Box - 3R
Part Number: TP7076
Quick Summary
Weatherproof outlet box TP7076 by Eaton protects electrical connections in harsh environments, delivering a reliable enclosure for single-gang installations. Users often face corrosion, moisture ingress, or space constraints in outdoor or industrial settings. This enclosure aligns with NEC/CEC standards and carries a NEMA 3R rating for outdoor durability; UL listings further ensure weatherproof performance in both the US and Canada. The bronze die-cast aluminum construction with a 25.5 cu in capacity supports compact, durable wiring solutions, delivering long-term reliability and reduced maintenance costs for mission-critical installations.
Product Information
Extended Description
TP7076 Eaton: Eaton Crouse-Hinds series weatherproof outlet box, 25.5 cu in capacity, Bronze, 2-5/8" deep, Die cast aluminum, Single-gang, (3) 1/2" outlet holes, Rectangular
Product Name
Eaton Crouse-Hinds series weatherproof outlet box
Catalog Number
TP7076
UPC
662276949348
Product Length/Depth
4.54 in
Product Height
2.8 in
Product Width
2.78 in
Product Weight
0.64 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Number of gangs
Single-gang
Depth
2-5/8"
Type
Rectangular
Outlet holes
(3) 1/2"
Capacity
25.5 cu in
Color
Bronze
Material
Die cast aluminum
Crouse-Hinds series Weatherproof portfolio catalog pages
Weatherproof Outlet Boxes and Covers UL certification
Weatherproof Outlet Boxes and Covers UL certification
TP7076 PDF drawing
TP7076 PDF drawing
Eaton Specification Sheet - TP7076
Feature: 25.5 cu in capacity within a single-gang weatherproof enclosure. Impact: provides space for splices and devices, reducing field rework and inventory needs. Application: ideal for outdoor lighting, compact control circuits, and pump or valve installations in harsh environments. Feature: Bronze die-cast aluminum housing. Impact: high corrosion resistance and durable protection against impact. Application: outdoor industrial and coastal environments. Feature: 2-5/8 in depth with compact overall footprint. Impact: enables easy mounting in tight spaces while preserving wiring access. Application: wall- or surface-mounted locations adjacent to equipment. Feature: (3) 1/2" outlet holes. Impact: supports multiple conductors and simplifies wiring layout. Application: ready-to-use for multi-conductor circuits in a small enclosure. Feature: NEC/CEC compliance; NEMA 3R rating; UL certifications for US/Canada. Impact: reduces regulatory risk, ensures weatherproof performance, and streamlines audits. Application: suitable for ordinary locations indoors and outdoors. Industry insight: Eaton’s weatherproof series is widely adopted in automation and electrical infrastructure projects, enabling standardized enclosure strategies, faster deployments, and easier maintenance planning in demanding environments.
Get a Quick Quote for a Eaton TP7076
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP7076?
Enquire Now
FAQs
For TP7076, select a single-gang, weatherproof enclosure with a 2-5/8 in depth and use the three 1/2 in outlet knockouts to route conductors. Ensure a proper gasketed cover and secure mounting to a rigid surface to preserve the NEMA 3R weatherproof integrity. Use appropriate conduit fittings and follow NEC guidelines for outdoor installs. This approach minimizes moisture ingress and simplifies future maintenance.
TP7076 carries a NEMA 3R rating for outdoor and protected locations, and is compliant with NEC/CEC standards. It is UL-listed for weatherproof performance in the US and Canada, providing verified safety and reliability for ordinary locations. These certifications help meet regulatory requirements and support audits in industrial facilities.
Yes. The TP7076 is designed as a weatherproof, single-gang enclosure with a 25.5 cu in capacity, bronze die-cast aluminum housing, and a NEMA 3R rating, making it suitable for outdoor lighting, pumps, and small control circuits in ordinary outdoor environments. Its UL listings further confirm suitability across US and Canadian installations.
The TP7076 enclosure measures 4.54 in in length, 2.8 in in height, and 2.78 in in width, with a 2-5/8 in depth. It uses bronze-colored die-cast aluminum for robust outdoor durability and provides (3) 1/2 in outlet holes. The internal capacity is 25.5 cu in, supporting compact wiring needs in single-gang configurations.
Available documents include the Crouse-Hinds Weatherproof portfolio catalog pages for reference, UL certification reports for both US and Canada, TP7076 CAD drawings (PDF and SLDDRW), and the Eaton Specification Sheet. These resources aid in design validation, compliance checks, and installation planning, ensuring consistent, code-compliant deployments.
