Eaton TP7078 Weatherproof Outlet Box - NEC/CEC
Part Number: TP7078
Quick Summary
Eaton TP7078 Weatherproof Outlet Box is a rugged enclosure that protects electrical connections in harsh environments. For engineers and procurement teams, on-site delays and corrosion risk can derail projects, increasing downtime and maintenance costs. This box is NEC/CEC compliant and UL-listed for ordinary locations, with additional UL Canada certification coverage to support cross-border installations. Its die-cast aluminum body, 24 cu in capacity, and 2-5/8 in depth provide robust protection without bulky footprint. By combining durable construction with straightforward mounting and clear labeling, TP7078 reduces field rework, simplifies maintenance, and extends service life for outdoor enclosures, control panels, and outdoor wiring runs. In short, it enables faster, safer installations with long-term cost savings for industrial facilities.
Product Information
Extended Description

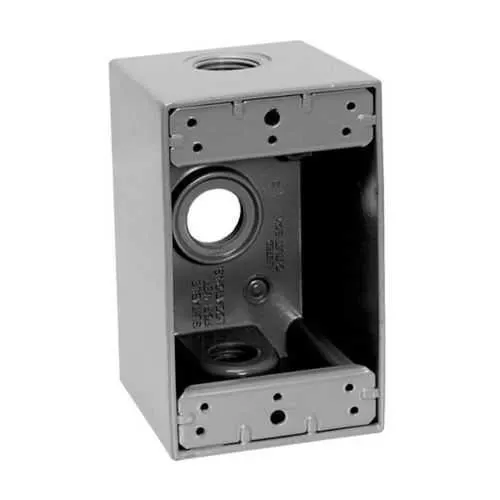

TP7078 Eaton: Eaton Crouse-Hinds series weatherproof outlet box, 24.0 cu in, Gray, 2-5/8" deep, Die cast aluminum, Single-gang, (3) 3/4" outlet holes, Rectangular, with lugs
Product Name
Eaton Crouse-Hinds series weatherproof outlet box
Catalog Number
TP7078
UPC
786189070781
Product Length/Depth
2.88 in
Product Height
4.25 in
Product Width
2.66 in
Product Weight
0.8 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Number of gangs
Single-gang
Depth
2-5/8"
Type
Rectangular, with lugs
Outlet holes
(3) 3/4 in
Capacity
24 cubic in
Color
Gray
Material
Die cast aluminum
Crouse-Hinds series Weatherproof portfolio catalog pages
Weatherproof Outlet Boxes and Covers UL certification
Weatherproof Outlet Boxes and Covers UL certification
TP7078 PDF drawing
TP7078 PDF drawing
Eaton Specification Sheet - TP7078
Die-cast aluminum construction is resilient to corrosion and impact, delivering long service life in outdoor and damp environments. Business impact: reduced replacement costs and fewer service calls; Application: outdoor enclosures, weather-exposed installations. The TP7078 also offers a compact 24 cubic inch capacity with a 2-5/8 inch depth, enabling efficient conductor packing without oversized footprint. Impact: lower material and labor costs; Application: single-gang mounting on walls or panels. The three 3/4 inch outlet holes, along with lugs for mounting, simplify wiring layouts and provide secure, ready-to-use connections in a single box. Impact: faster wiring, fewer misfits; Application: equipment bays and control panels. The gray finish and rectangular form factor support clean integration with covers and weather seals while meeting NEC/CEC standards. Impact: regulatory compliance and improved safety; Application: industrial facilities and hazardous-free locations. The lightweight design at 0.8 lb offers easier handling on site, reducing installation time and fatigue.
Get a Quick Quote for a Eaton TP7078
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP7078?
Enquire Now
FAQs
When installing TP7078, ensure wall mounting via the built-in lugs and align with a weatherproof cover. The unit supports (3) 3/4 in outlet holes and fits a single-gang footprint, so plan cable routing and seal compatibility with appropriate gaskets. Verify NEC/CEC compliance for ordinary locations and reference UL listings during selection to guarantee regulatory conformity.
TP7078 is designed to meet NEC/CEC standards for ordinary locations and is UL-listed for weatherproof use. The die-cast aluminum body provides robust protection against moisture and dust, while the three outlet holes support standard wiring configurations. Cross-border UL Canada certification also supports Canadian installations, simplifying procurement and compliance across sites.
Yes. TP7078 is a single-gang, rectangular box with lugs for secure mounting and multiple 3/4 inch outlets, compatible with standard weatherproof covers and gaskets. Its 24 cu in capacity accommodates common conductors and devices, making it a straightforward upgrade or replacement in existing outdoor wiring schemes without extensive rework.
The die-cast aluminum construction resists corrosion and impact, reducing replacement cycles and maintenance labor. With a compact footprint, straightforward mounting, and UL/NEC/CEC compliance, TP7078 lowers field service time, minimizes downtime, and supports longer service life for outdoor enclosures, control panels, and equipment pads, delivering measurable cost savings over traditional non-weatherproof boxes.
Authorized users can access TP7078 drawings and datasheets via Eaton’s service catalog, including PDF drawings and CAD files. Certification reports, including UL listings for weatherproof usage and Canada listings, are available through Eaton’s materials library and UL databases referenced in the product downloads section.
