Eaton TP7082 Weatherproof Outlet Box - NEC/CEC
Part Number: TP7082
Quick Summary
The Eaton TP7082 weatherproof outlet box is a rugged solution for protecting electrical outlets in outdoor and industrial environments. Installers often contend with moisture intrusion, corrosion, and cramped spaces that slow installs and threaten reliability. This unit aligns with NEC/CEC standards and is rated for Ordinary/Non-Hazardous locations, with UL listings for weatherproof performance in the U.S. and Canada. Featuring a die-cast aluminum body, a single-gang footprint, 24 cubic inches of capacity, and three 1-inch outlet holes, it delivers durable protection while enabling fast, straightforward installation for field or factory environments. The TP7082’s compact, lightweight design supports straightforward retrofit and compatibility with standard covers and gaskets, driving lower total cost of ownership over the equipment lifecycle.
Product Information
Extended Description

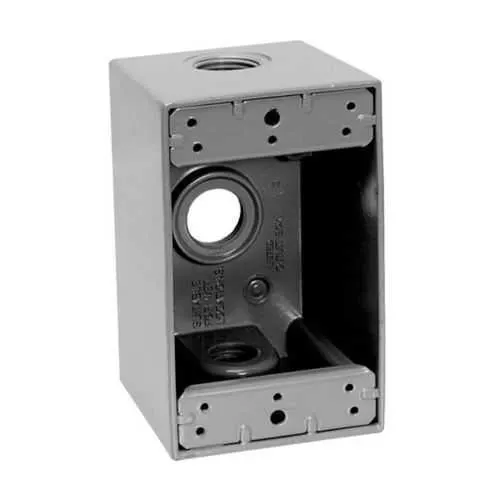

TP7082 Eaton: Eaton Crouse-Hinds series weatherproof outlet box, 24.0 cu in, Gray, 2-5/8" deep, Die cast aluminum, Single-gang, (3) 1" outlet holes, Rectangular, with lugs
Product Name
Eaton Crouse-Hinds series weatherproof outlet box
Catalog Number
TP7082
UPC
786189070828
Product Length/Depth
2.88 in
Product Height
4.25 in
Product Width
2.66 in
Product Weight
0.8 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Number of gangs
Single-gang
Depth
2-5/8"
Type
Rectangular, with lugs
Outlet holes
(3) 1 in
Capacity
24 cubic in
Color
Gray
Material
Die cast aluminum
Crouse-Hinds series Weatherproof portfolio catalog pages
Weatherproof Outlet Boxes and Covers UL certification
Weatherproof Outlet Boxes and Covers UL certification
TP7082 PDF drawing
TP7082 PDF drawing
Eaton Specification Sheet - TP7082
Feature → Business Impact → Application: Die-cast aluminum construction provides excellent corrosion resistance, reducing maintenance costs and extending service life in harsh outdoor and industrial settings; this translates to lower downtime and longer intervals between service with minimal risk of moisture ingress. Application-wise, it suits outdoor control panels, wet locations, and dusty environments where compact, single-gang outlets are needed without sacrificing protection. Feature → Business Impact → Application: 24 cubic inches of capacity and (3) 1-inch outlet holes deliver flexible wiring options while maintaining a compact footprint; installers can accommodate multiple conductors and devices without crowding the enclosure, improving fault isolation and simplifying future upgrades. Feature → Business Impact → Application: Rectangular shape with lugs and a 2-5/8 inch depth enables easy mounting against walls or equipment with minimal protrusion, reducing installation time and improving panel aesthetics in tight spaces. Feature → Business Impact → Application: NEC/CEC compliance and Ordinary/Non-Hazardous location rating provide regulatory confidence for plant floors, outdoor enclosures, and utility installations, helping procurement justify the choice based on risk mitigation and standardization. Feature → Business Impact → Application: Lightweight at 0.8 lb with standard 1-inch outlets supports quick retrofits and reduced handling costs on busy sites, increasing overall project throughput while maintaining rugged protection and compatibility with common weatherproof covers.
Get a Quick Quote for a Eaton TP7082
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP7082?
Enquire Now
FAQs
The TP7082 installs as a single-gang, rectangular weatherproof box with lugs for surface mounting. Its die-cast aluminum body, 2-5/8 in depth, and 24 cu in capacity accommodate three 1 in outlets while keeping wiring organized. Use compatible covers and gaskets to maintain weatherproof integrity, and secure with standard mounting screws for a quick, reliable retrofit into control panels or outdoor enclosures.
Key specifications include 24 cubic inches of capacity, 2-5/8 in depth, 4.25 in height, 2.66 in width, weight 0.8 lb, die-cast aluminum construction, gray color, and single-gang capacity with (3) 1 in outlet holes. It is NEC/CEC compliant and rated for Ordinary/Non-Hazardous locations, making it suitable for harsh environments while remaining compact.
Yes. TP7082 is described as a weatherproof outlet box designed for outdoor and industrial use. It features die-cast aluminum construction for corrosion resistance and is rated for Ordinary/Non-Hazardous locations under NEC/CEC standards. UL listings further support weatherproof performance in both the U.S. and Canada when paired with compatible covers and seals.
TP7082 offers a compact single-gang footprint with lugs for straightforward mounting, reducing installation complexity. Its 24 cu in capacity and three 1 in outlets enable flexible wiring while preserving enclosure space. The die-cast aluminum body provides durable protection with lower maintenance, and the unit’s lightweight design speeds field retrofits and minimizes handling challenges on busy sites.
TP7082 meets NEC/CEC standards and is rated for Ordinary/Non-Hazardous locations, with UL weatherproof listings. These certifications reduce compliance risk and support standardized procurement. The durable aluminum construction lowers maintenance and replacement costs, while the compact size and weight minimize installation time and labor, delivering a favorable total cost of ownership over the project lifecycle.
