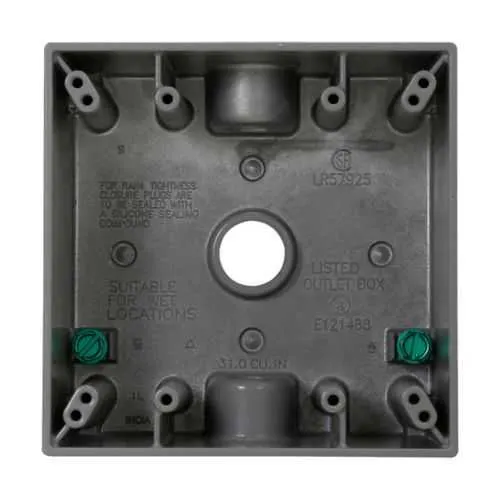

Eaton TP7088 Weatherproof Outlet Box - NEC/CEC
Part Number: TP7088
Quick Summary
The Eaton TP7088 weatherproof outlet box is a durable, two-gang enclosure designed for outdoor electrical connections in harsh industrial environments. For engineers and maintenance teams, moisture ingress and corrosion risk in outdoor terminations can drive costly downtime. It meets NEC/CEC standards, supports UL Canadian certification, and is suitable for Ordinary/Non-Hazardous Locations, providing broad regulatory coverage. With bronze finish and die-cast aluminum construction, this box delivers rugged protection while accommodating three 1/2 inch outlet holes and flexible installation for reliable field terminations across outdoor facilities.
Product Information
Extended Description
TP7088 Eaton: Eaton Crouse-Hinds series weatherproof outlet box, 30.5 cu in, Bronze, 2" deep, Die cast aluminum, Two-gang, (3) 1/2" outlet holes
Product Name
Eaton Crouse-Hinds series weatherproof outlet box
Catalog Number
TP7088
UPC
786189070880
Product Length/Depth
4.63 in
Product Height
4.56 in
Product Width
2.06 in
Product Weight
0.83 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Number of gangs
Two-gang
Depth
2"
Outlet holes
(3) 1/2 in
Capacity
30.5 cubic in
Color
Bronze
Material
Die cast aluminum
Crouse-Hinds series Weatherproof portfolio catalog pages
Weatherproof Outlet Boxes and Covers Canadian certification
Weatherproof Outlet Boxes and Covers Canadian certification
TP7088 SLDDRW drawing
TP7088 SLDDRW drawing
Eaton Specification Sheet - TP7088
Feature: Die-cast aluminum housing in bronze finish offers exceptional corrosion resistance in outdoor environments. Benefit: Extends service life and reduces maintenance costs in harsh climates. Application: Outdoor electrical enclosures for non-hazardous locations in manufacturing plants and outdoor facilities. Feature:容量 30.5 cubic inches with 4.63 in length, 4.56 in height, and 2.06 in width; depth 2 in. Benefit: Provides ample space for two-gang terminations and multiple conduits, enabling safer, organized wiring and faster installs. Application: Two-gang setups requiring space for multiple connectors and splices. Feature: (3) 1/2 in outlet holes; Weight 0.83 lb. Benefit: Flexible conduit configurations with minimal weight for easier field handling and reduced mounting strain. Application: Recessed or surface-mounted outdoor installations requiring reliable ingress protection. Feature: NEC/CEC compliance and UL Canadian certification; Ordinary/Non-Hazardous Locations designation. Benefit: Improves regulatory confidence and cross-border applicability, simplifying procurement and reducing compliance risk. Application: Projects spanning US and Canadian sites with standard electrical codes.
Get a Quick Quote for a Eaton TP7088
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP7088?
Enquire Now
FAQs
To install TP7088, prepare a clean mounting surface, align the two-gang box with the enclosure opening, and secure using appropriate fasteners compatible with the box flanges. Route conductors through the (3) 1/2 inch outlet holes, ensure gasket integrity for weatherproof sealing, and verify the enclosure remains accessible for terminations and inspection. Confirm NEC/CEC compliance during final wiring checks.
TP7088 is designed to comply with NEC/CEC standards for outdoor electrical installations and bears UL Canadian certification as indicated by available certification references. Its Ordinary/Non-Hazardous Locations classification further supports safe use across standard industrial outdoor environments, ensuring cross-border applicability for projects in the US and Canada.
TP7088 is specified for Ordinary/Non-Hazardous Locations, making it ideal for general outdoor electrical terminations in non-hazardous settings. It is not rated for hazardous or classified locations. This aligns with its weatherproof, corrosion-resistant bronze die-cast aluminum construction, which is optimized for outdoor industrial use rather than explosive or chemically hazardous environments.
TP7088 offers a 30.5 cubic inch capacity with overall dimensions of 4.63 in length, 4.56 in height, and 2.06 in width, plus a 2 in depth. It weighs 0.83 lb and features (3) 1/2 inch outlet holes. This combination supports two-gang terminations and flexible conduit configurations while remaining manageable for field mounting.
The bronze finish and die-cast aluminum body provide excellent corrosion resistance, reducing replacement frequency and maintenance costs in outdoor environments. Its weatherproof design minimizes ingress risk, lowering downtime for outdoor terminations. Additionally, NEC/CEC and UL Canada certifications streamline procurement across regions, delivering regulatory peace of mind and faster project completion.
