Eaton TP7090 Weatherproof Outlet Box - NEC/CEC
Part Number: TP7090
Quick Summary
Eaton TP7090 weatherproof outlet box provides durable outdoor electrical housing for two circuits. When wiring outdoors, installers face moisture ingress, corrosion, and unreliable enclosures—this model mitigates those pain points with rugged construction and reliable sealing. It meets NEC/CEC standards and is suitable for Ordinary/Non-Hazardous locations, backed by industry certification context. With a 30.5 cu in capacity and a die-cast aluminum body, it delivers robust protection while still accommodating wiring and devices, enabling efficient, compliant outdoor installations.
Product Information
Extended Description

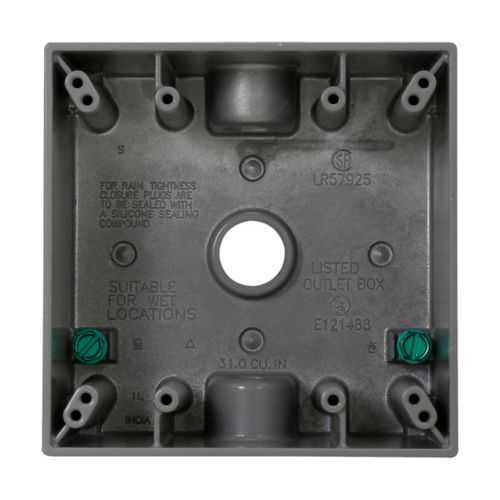

TP7090 Eaton: Eaton Crouse-Hinds series weatherproof outlet box, 30.5 cu in, Gray, 2" deep, Die cast aluminum, Two-gang, (3) 3/4" outlet holes
Product Name
Eaton Crouse-Hinds series weatherproof outlet box
Catalog Number
TP7090
UPC
786189070903
Product Length/Depth
4.63 in
Product Height
4.56 in
Product Width
2.06 in
Product Weight
0.83 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Number of gangs
Two-gang
Depth
2"
Outlet holes
(3) 3/4 in
Capacity
30.5 cubic in
Color
Gray
Material
Die cast aluminum
Crouse-Hinds series Weatherproof portfolio catalog pages
Weatherproof Outlet Boxes and Covers Canadian certification
Weatherproof Outlet Boxes and Covers Canadian certification
TP7090 SLDDRW drawing
TP7090 SLDDRW drawing
Eaton Specification Sheet - TP7090
Die-cast aluminum construction delivers superior corrosion resistance and long-term durability, reducing maintenance cycles and downtime in outdoor environments. This translates to lower total cost of ownership for electrical enclosures in harsh surroundings and consistent performance in rain, dust, and temperature fluctuations. The TP7090’s two-gang design and capacity of 30.5 cubic inches support multiple outlets or devices, enabling streamlined wiring layouts and reduced enclosure prolixity at the point of use. With a depth of 2 inches and a compact 4.63 inch length, it fits into tight mounting spaces while still providing ample space for conduit connections and internal components, improving installer efficiency. The three 3/4 inch outlet holes offer flexible wiring configurations and easier field adaptation for evolving electrical layouts. NEC/CEC compliance and ordinary/non-hazardous area suitability give operators confidence in regulatory alignment and safety.
Get a Quick Quote for a Eaton TP7090
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP7090?
Enquire Now
FAQs
The TP7090 is a two-gang weatherproof box with 4.63 inches in length, 4.56 inches in height, and 2.06 inches in width, offering a 30.5 cubic inch capacity and three 3/4 inch outlet holes for flexible wiring. Its compact depth supports versatile mounting in outdoor environments while accommodating multiple devices.
Yes. The TP7090 is classified for Ordinary/Non-Hazardous locations and adheres to NEC/CEC standards, ensuring regulatory compliance for standard industrial outdoor installations and alignment with typical electrical codes used in North America.
Absolutely. The TP7090 is designed as a weatherproof two-gang outlet box intended for outdoor use, and it pairs with appropriate weatherproof covers to maintain enclosure integrity against moisture, dust, and temperature variations during operation.
The die-cast aluminum construction provides excellent corrosion resistance and mechanical strength, reducing degradation in harsh outdoor environments. The enclosure is designed to maintain sealing performance over time, minimizing ingress risks and the need for frequent resealing or replacements.
Official drawings and datasheets are available in the product downloads: SLDDRW drawings (DWG and PDF formats) and the Eaton specification sheet. These resources support precise installation planning, BOM creation, and integration with project documentation.
