Eaton TP7098 Weatherproof Outlet Box - NEC/CEC
Part Number: TP7098
Quick Summary
TP7098 Weatherproof outlet box by Eaton is designed for two-gang outdoor electrical installations in industrial facilities. Manufacturers and maintenance teams often struggle with corrosion, weather exposure, and downtime when selecting enclosures; this model directly addresses those challenges. It carries NEC/CEC compliance and UL listings for weatherproof performance in ordinary/non-hazardous locations, with a die-cast aluminum body and gray finish. The combination of rugged protection and straightforward installation supports faster deployments, reduced field service, and improved lifecycle costs for projects that demand reliability and regulatory alignment.
Product Information
Extended Description

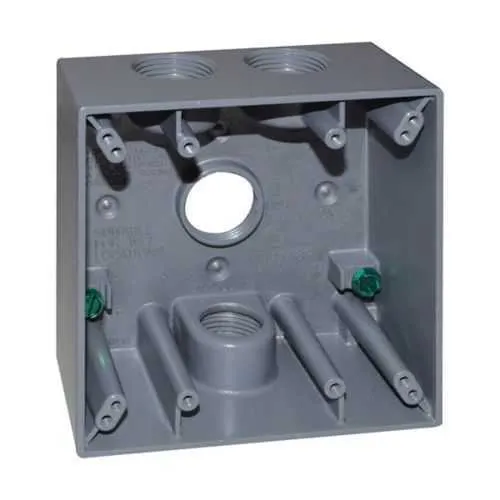

TP7098 Eaton: Eaton Crouse-Hinds series weatherproof outlet box, 30.5 cu in, Gray, 2" deep, Die cast aluminum, Two-gang, (4) 3/4" outlet holes
Product Name
Eaton Crouse-Hinds series weatherproof outlet box
Catalog Number
TP7098
UPC
786189070989
Product Length/Depth
4.63 in
Product Height
4.56 in
Product Width
2.06 in
Product Weight
0.83 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Number of gangs
Two-gang
Depth
2"
Outlet holes
(4) 3/4 in
Capacity
30.5 cubic in
Color
Gray
Material
Die cast aluminum
Crouse-Hinds series Weatherproof portfolio catalog pages
Weatherproof Outlet Boxes and Covers UL certification
Weatherproof Outlet Boxes and Covers UL certification
TP7098 PDF drawing
TP7098 PDF drawing
Eaton Specification Sheet - TP7098
The TP7098 uses die-cast aluminum to deliver maximum durability in harsh outdoor environments and wet locations. This two-gang weatherproof outlet box accommodates multiple devices with a 30.5 cubic inch capacity and four 3/4 inch outlet holes, helping maintain clean, code-compliant wiring while resisting corrosion, impact, and UV exposure. With a compact 2 inch depth, the TP7098 simplifies rear-area routing behind receptacles and fits into tight enclosures without forcing unnecessary panel expansion. The gray finish enhances visibility in outdoor installations, while the provided mounting features and standard knockouts support straightforward integration with conduit, glands, and common receptacles. Compliance is built in through NEC/CEC standards, and its ordinary/non-hazardous area classification matches typical outdoor equipment environments, reducing risk during inspections and audits. UL certification coverage for weatherproof outlet boxes and covers, including US and Canada listings, provides cross-border assurance for contractors, OEMs, and distributors. The TP7098's durability and documented ratings translate into fewer field failures and lower warranty costs over the asset life. Eaton provides downloadable CAD drawings and datasheets for TP7098, including PDF drawings and SLDDRW files, enabling engineers to validate fit before procurement. Integrating TP7098 with Eaton's Crouse-Hinds weatherproof portfolio reduces part proliferation, improves stocking accuracy, and accelerates time to deployment in industrial facilities.
Get a Quick Quote for a Eaton TP7098
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP7098?
Enquire Now
FAQs
TP7098 installation considerations include its two-gang footprint, 2 inch depth, and four 3/4 inch outlet holes, which determine device fit and wiring space. The die-cast aluminum enclosure provides weather resistance, while the gray finish helps with visibility in outdoor settings. Use appropriate conduit connections and mounting patterns for reliable service in ordinary locations. Also check enclosure clearance behind receptacles to avoid binding and ensure proper gland or gasket selection.
TP7098 carries NEC/CEC standards compliance and an Ordinary/Non-Hazardous Location classification. UL certification for Weatherproof Outlet Boxes and Covers (US and Canada) is available through Eaton’s documentation, which supports cross-border projects and reduces regulatory risk. These certifications translate to smoother inspections and consistent performance in field deployments.
TP7098 measures 4.63 in in length, 4.56 in in height, and 2.06 in in width, with a 2 in depth and a 30.5 cubic inch capacity. It weighs approximately 0.83 lb and has four 3/4 in outlet holes. These specs enable compact layouts while leaving ample room for wiring and connectors in non-hazardous environments.
TP7098 is suitable for ordinary/non-hazardous locations and outdoor installations where weather resistance is required. It is not intended for hazardous or explosive atmospheres. Always verify area classifications with local codes and ensure installation matches NEC/CEC requirements for the specific site.
TP7098 integrates with Eaton's Crouse-Hinds weatherproof lineup, simplifying sourcing and spare parts management across related enclosures and covers. CAD drawings and datasheets are available from Eaton, including PDF drawings and SLDDRW files, to facilitate design-in and verification before procurement.
