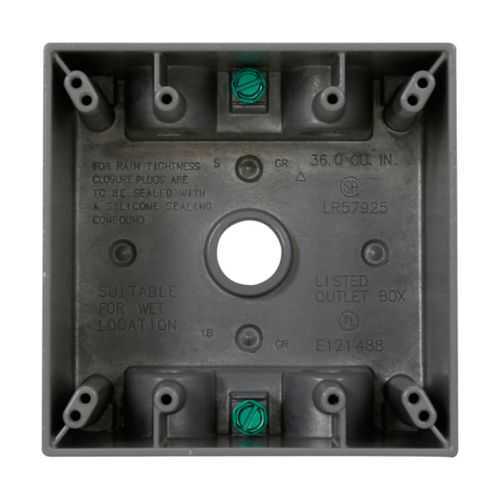

Eaton TP7103 Weatherproof Outlet Box - 3R
Part Number: TP7103
Quick Summary
TP7103 Weatherproof Outlet Box by Eaton provides rugged outdoor outlet protection for harsh industrial environments. Engineers often contend with water ingress, corrosion, and enclosure fatigue that drive downtime and maintenance costs; this enclosure is designed to mitigate those challenges. It carries a NEMA 3R rating and NEC/CEC compliance, with UL certification support, and is suitable for ordinary/non-hazardous locations. The two-gang, rectangular design, white finish, and 30.2 cu in capacity help simplify installation and stocking while ensuring reliable service in wet or dusty conditions. This combination of protection, compatibility, and ease of use translates to measurable value in fielded electrical installations and maintenance programs.
Product Information
Extended Description
TP7103 Eaton: Eaton Crouse-Hinds series weatherproof outlet box, 30.2 cu in capacity, White, 2" deep, Die cast aluminum, Two-gang, (5) 1/2" outlet holes, Rectangular
Product Name
Eaton Crouse-Hinds series weatherproof outlet box
Catalog Number
TP7103
UPC
662276948242
Product Length/Depth
4.5 in
Product Height
2.26 in
Product Width
4.5 in
Product Weight
0.8 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Number of gangs
Two-gang
Depth
2"
Type
Rectangular
Outlet holes
(5) 1/2"
Capacity
30.2 cu in
Color
White
Material
Die cast aluminum
Crouse-Hinds series Weatherproof portfolio catalog pages
Weatherproof Outlet Boxes and Covers UL certification
Weatherproof Outlet Boxes and Covers UL certification
TP7103 SLDDRW drawing
TP7103 SLDDRW drawing
Eaton Specification Sheet - TP7103
Feature → Business Impact → Application: The TP7103 uses die cast aluminum, delivering robust physical protection against impact and corrosion in outdoor or semi-outdoor settings, reducing enclosure damage and replacement costs in harsh environments. This material choice supports long service life in industrial facilities with exposure to weather elements, lowering lifecycle costs and maintenance frequency. Feature → Business Impact → Application: A 30.2 cu in capacity paired with five 1/2 inch outlet holes provides ample internal space for wiring and terminations, enabling quicker, safer installations and easier future upgrades in two-gang configurations. This improves installation efficiency and reduces labor time on site for electrical contractors working on outdoor receptacle boxes in manufacturing or distribution environments. Feature → Business Impact → Application: The 2 inch depth and rectangular two-gang form factor align with common mounting footprints, allowing seamless integration with standard backbox layouts and existing conduit fittings, minimizing the need for custom boxes and enabling faster project delivery in weatherproof enclosure projects. Feature → Business Impact → Application: NEMA 3R rating and NEC/CEC compliance offer documented protection against rain and moisture ingress, supporting compliance audits and reducing the risk of non-conformance penalties in facilities handling outdoor electrical equipment. Feature → Business Impact → Application: UL certification and the ordinary/non-hazardous location classification provide assurance to facilities managers and procurement teams that the TP7103 meets recognized safety standards, supporting vendor qualification and reducing risk in supply chains. Feature → Business Impact → Application: Die cast aluminum, white finish, and clean two-gang rectangular geometry simplify maintenance and cleaning in food processing, water treatment, and agricultural facilities where enclosure aesthetics and ease of access matter for routine inspections.
Get a Quick Quote for a Eaton TP7103
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP7103?
Enquire Now
FAQs
Install the TP7103 using its two-gang rectangular footprint, mounting to standard backboxes or mounting surfaces. The five 1/2" outlet holes support multiple conductors, and the 2" depth provides space for terminations. Follow NEC/CEC guidelines and ensure the enclosure remains upright and sealed to maintain NEMA 3R protection. Regularly inspect gaskets and fasteners for optimal performance.
Key specs include two-gang capacity, rectangular shape, 4.5 in length and width, 2 in depth, 30.2 cu in volume, white die cast aluminum construction, and five 1/2 in outlet holes. It is rated NEMA 3R and complies with NEC/CEC standards, suitable for Ordinary/Non-Hazardous Locations, and UL certified.
Yes. The TP7103 is designed for weatherproof applications with a NEMA 3R rating, enabling rain and moisture exposure protection. Its die cast aluminum construction and UL certification support reliable outdoor performance, especially in industrial settings requiring dependable enclosure integrity.
The TP7103 carries NEC/CEC compliance, a NEMA 3R rating, and UL certification for weatherproof outlet boxes. These certifications confirm electrical safety, environmental protection, and compatibility with regional electrical codes, reducing compliance risk and easing procurement in regulated facilities.
By resisting water ingress and corrosion, the TP7103 lowers failure rates and maintenance frequency for outdoor outlets. The durable die cast aluminum housing, 30.2 cu in capacity, and straightforward two-gang installation shorten downtime during replacements and upgrades, delivering measurable total cost of ownership savings over time.
